Description
This Package includes upgrading the front door speakers with a set of Audison Prima 2 way component speakers, replacing the two underseat subwoofers with a pair of Audison Prima 8″ woofers. There is also a 4 Channel Audison DSP Amplifier which will be powering the front door speakers and also the underseat subwoofers. This will give you extra clarity and more overall volume with more bass.
–

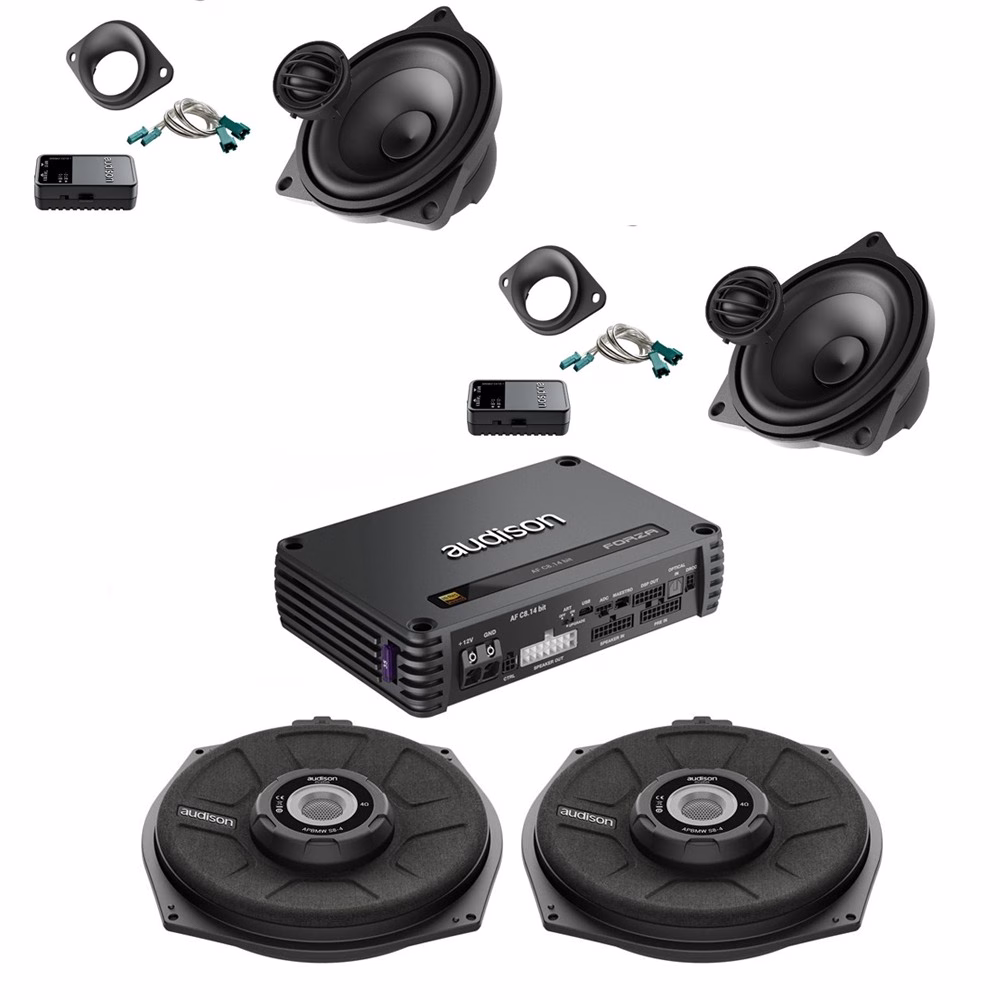

The package consist of:
- 1 x APB BMW K4 – 2 way component speakers for Front Doors
- 2 x BMWS8 – underseat Subwoofer
- 1 x AF C8.14 Bit 14 CH DSP – 8 Channel Amplifier
- 1 x Wiring Kit
Suitable For The Following Vehicles:
- BMW 1 Series
- BMW 3 Series
- BMW X1
- BMW 2 Series
- BMW 4 Series
- BMW 5 Series
- BMW 6 Series
- BMW 7 Series
- BMW X3
- BMW X4
- BMW X5
- BMW X6
- May require some modifications to complete the installation
* AUDIO INPUT INTO THE AMPLIFIER IS DONE USING HIGH LEVEL SPEAKERS INPUT
Audison Forza AF C8.14 Bit Amplifier 8 CH Amplifier With 14 CH DSP 800w
- Audison Forza, The Next Level Of OEM Integration And Tunning
- Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
- Next-generation bit Drive software platform
- Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
- Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
- Up to 14 output channels (8 amplified, 6 optional pre-outs) controlled by the DSP to expand the system with other amplifiers
- 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
- Extension card slot (additional 4 analog or 1 digital inputs)
- Electrical signal analysis for each input channel ensures proper integration and correction
- Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
- Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard
Power Output RMS
- 8 x 65w @ 4 Ohm
- 8 x 100w @ 2 Ohm
Technical Specifications of Subwoofer (APBMW S8)
- Size mm (in.): 200 (8)
- Power Handling: 300 W peak, 150W continuous
- Frequency Response Hz: 40 – 500
- Magnet size D x d x h mm (in.):
- 48 (1.89) x 18 (0.71) x 7 (0.28)
- Weight of one speaker kg (lb.): 1.21 (2.67)
- Voice Coil Ø mm (in.): 50 (2)

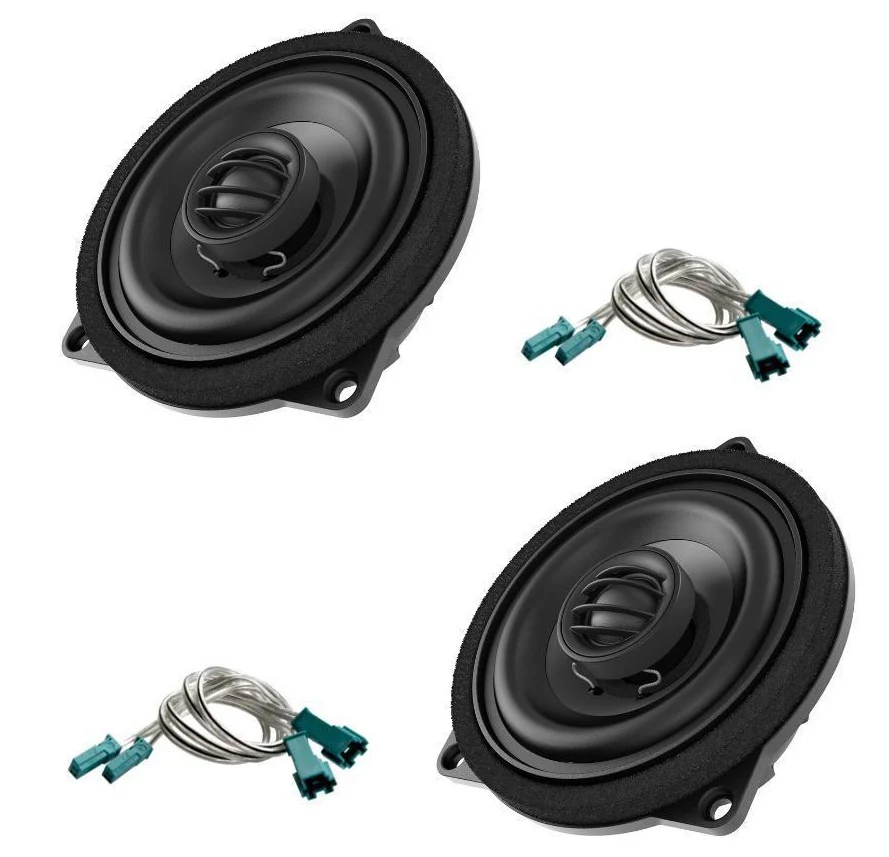

Technical Specifications for Audison Coax Speaker:
- Woofer Size mm (in.): 100 (4)
- Tweeter Size mm (in.): 29 (1.1)
- Power Handling: 100W peak, 50W continuous
- Impedance: 4 Ohms
- Frequency Response Hz: 90 – 23k
- Sensitivity dB: 89
- Crossover Type: Hi-Pass – 6 KHz @ 6dB/Oct.
- Component adjustment dB: -3, 0
- Woofer Magnet size D x d x h mm (in.): 50 x 29 x 3 (1.97 x 1.14 x 0.12)
- Tweeter Magnet size D x d x h mm (in.): 24.5 x 4 (0.96 x 0.16)
- Weight of one speaker Kg (lb): Woofer 0.426 (0.94)
- Tweeter 0.06 (0.13)
- Voice Coil : Woofer 25 (1) Tweeter 25 (1)
