Audison BMW Car Audio Upgrade 4″ Speakers + Underseat Subs + 5 Channel Amp & Bass Box

Description

Audison BMW Audio Upgrade 4″ Component Speakers + Underseat Subs + 5 Channel Amp Bass

Package Content:

• APBMW K4E – 2-Way Component Speakers
• APBMW S8-4/2 – Underseat Subwoofer
• Audison SR 5.600 – 5 Channel Amplifier with Crossover
• Audison APBX 10 DS – 10″ Bass Reflex Enclosure 800W

APBMW K4E Specifications:

Woofer Size mm (in.): 100 (4)
Tweeter Size mm (in.): 29 (1.1)
Power Handling: 100W peak, 50W continuous
Impedance: 4 Ohms
Frequency Response Hz: 90 – 23k
Sensitivity dB: 89
Crossover Type: Hi-Pass – 6 KHz @ 6dB/Oct.
Component adjustment dB: -3, 0
Woofer Magnet size D x d x h mm (in.):
50 x 29 x 3 (1.97 x 1.14 x 0.12)
Tweeter Magnet size D x d x h mm (in.):
24.5 x 4 (0.96 x 0.16)
Weight of one speaker Kg (lb): Woofer 0.426 (0.94)
Tweeter 0.06 (0.13)
Voice Coil Ø: Woofer 25 (1) Tweeter 25 (1)
APBMW S8-4/2 Specifications:

Size mm (in.): 200 (8)
Power Handling: 300 W peak, 150W continuous
Impedance: 4 Ohms Or 2 Ohms
Frequency Response Hz: 35 – 500
Magnet size D x d x h mm (in.):
48 (1.89) x 18 (0.71) x 7 (0.28)
Weight of one speaker kg (lb.): 1.21 (2.67)
Voice Coil Ø mm (in.): 50 (2)

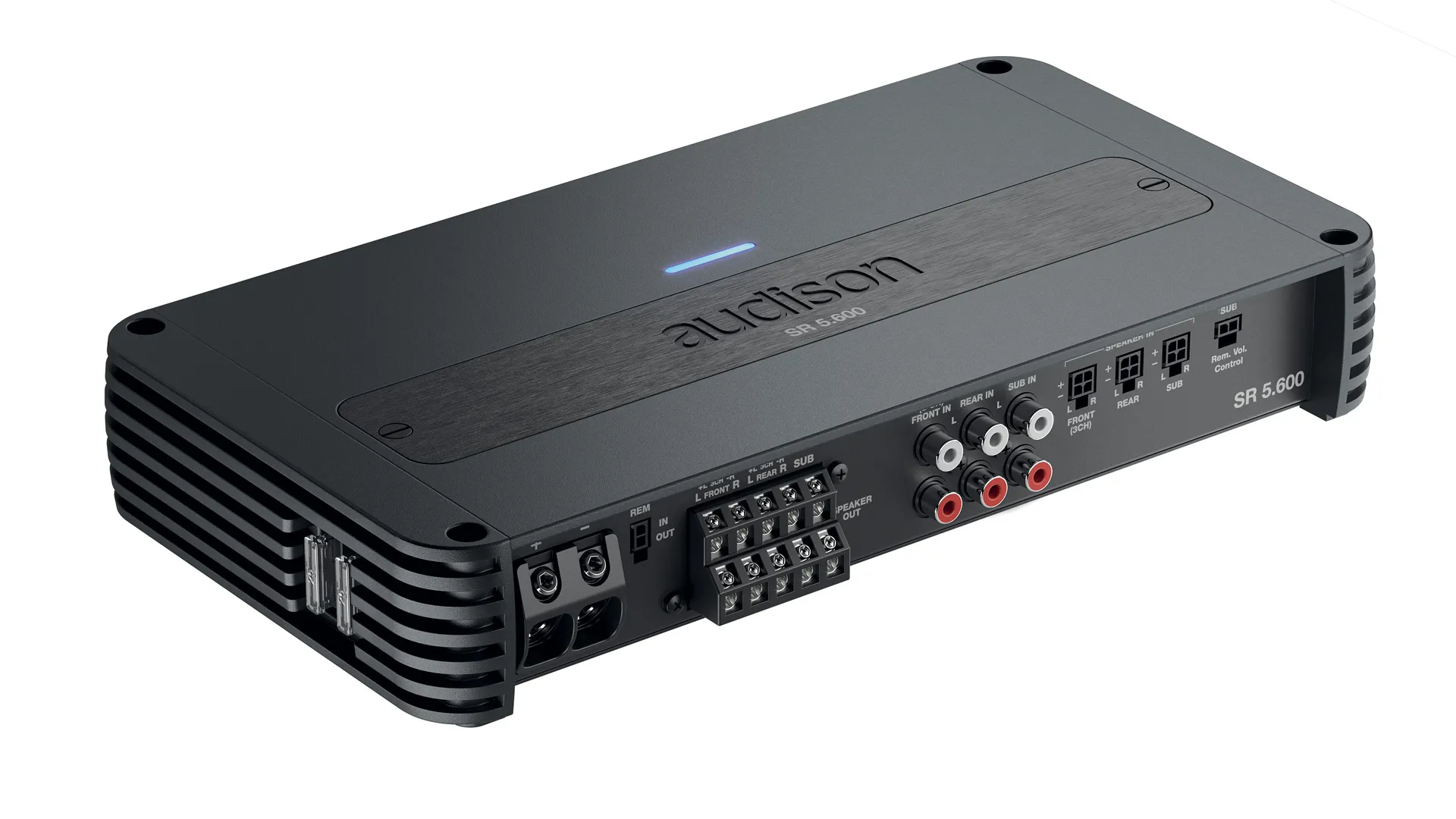

SR 5.600 Specifications:

OUTPUT POWER (RMS) @14.4 VDC, 1% THD: 75 W x 4 CH + 300 x 1 CH (4Ω)
SN ratio (ref. 1 W output) 75 W: 84 dBA – 300 W: 75 dBA
OUTPUT POWER (RMS) @14.4 VDC, 1% THD: POWER W RMS
5 CH 75 x 4 + 330 x 1 (4Ω)
5 CH 115 x 4 + 550 x 1 (2Ω)
3 CH 230 x 2 (4Ω) + 310 W x 1 (4Ω)
3 CH 230 x 2 (4Ω) + 550 x 1 (2Ω)

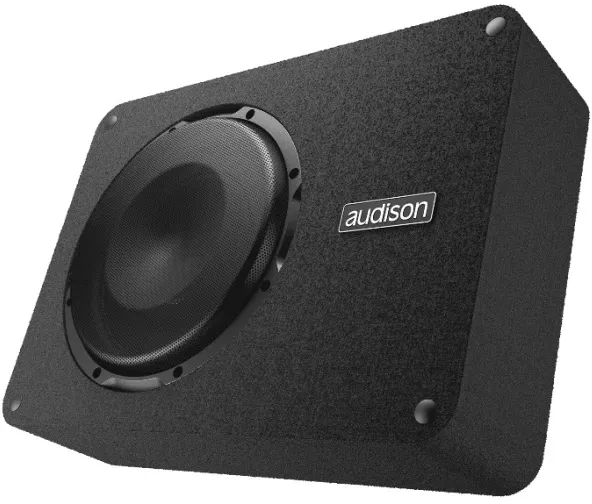

APBX 10 DS Specifications:

Comp REFLEX SUB BOX
Size 250 mm (10”)
Power Handling
400 W Continuous Power
800 W Peak Power
Impedance 4 Ω + 4 Ω
Sub box size mm (in.) 472 (18.58) x 334 (13.15) x 120 (4.72)
Magnet High density flux ferrite
Cone Cotton-Fibre pressed paper
Weight of one component kg (lb) 8,63 (19.03)
