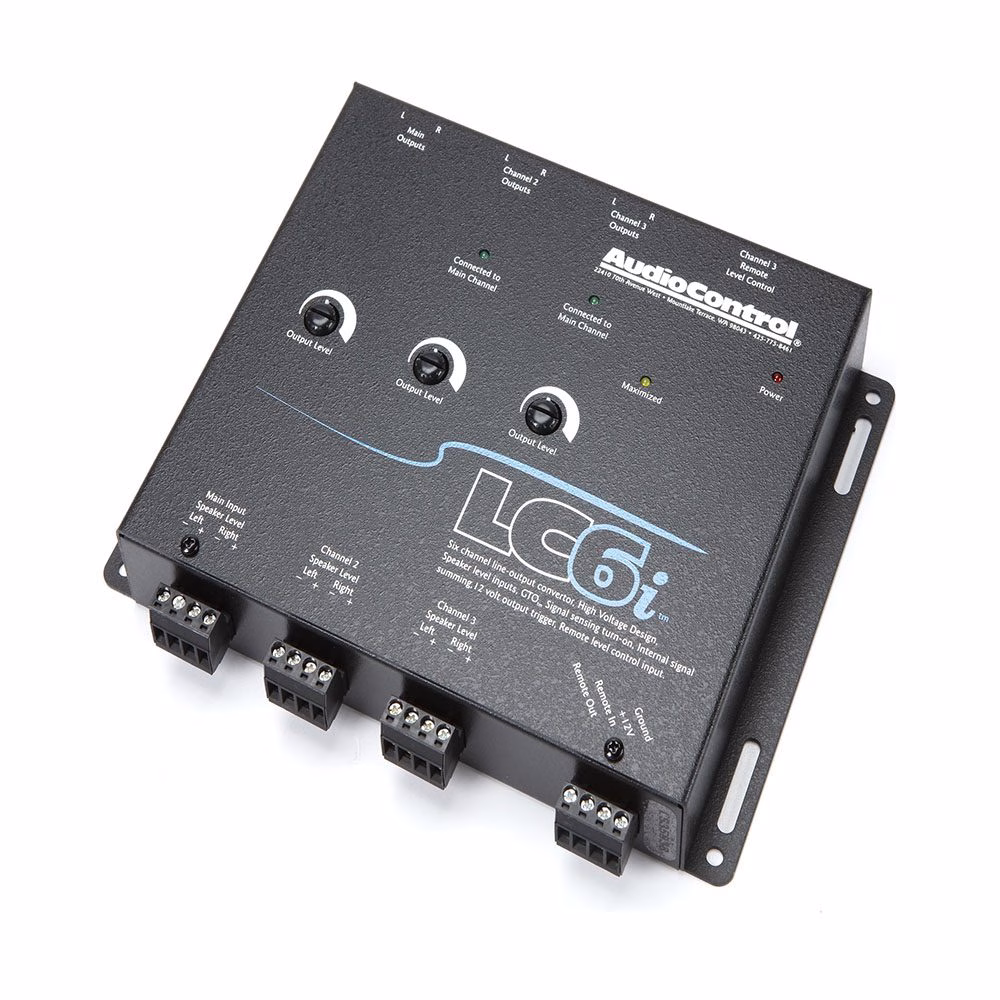

AudioControl LC6i – 6 Channel Line Output Converter

AudioControl LC6i – 6 Channel Line Output Converter

AudioControl LC6i will accept 2, 4 or 6 channels of speaker-level signal from an amplifier or source unit and convert it to a high-quality, low-noise pre-amp signal. Hence the AudioControl LC6i will allow you to use your factory installed source unit and give you the ability to add a really good aftermarket amplifier and processor with internal summing.

Specification

All specifications are measured at 14.4 VDC (standard automotive voltage). As technology
advances, AudioControl reserves the right to continuously change our specifications,
like our Pacific Northwest weather although we are working on changing that.

• Maximum speaker-level input .. 400 watts @ 4 ohms
• Maximum output level .. 9.5Vrms
• Output gain .. +/-12 dB
• Frequency response .. 10Hz-22kHz
• Total harmonic distortion .. 0.01%
• Input Impedance .. 20 Kohms
• Power supply .. High headroom PWM switching
• Power draw .. 200mA
• Recommended fuse rating .. 1 Amp
• Size .. 8” W x 6” D x 1.2” H
• Weight .. 3.5 lbs
• Remote Trigger Ouput Current .. 1 Amp
