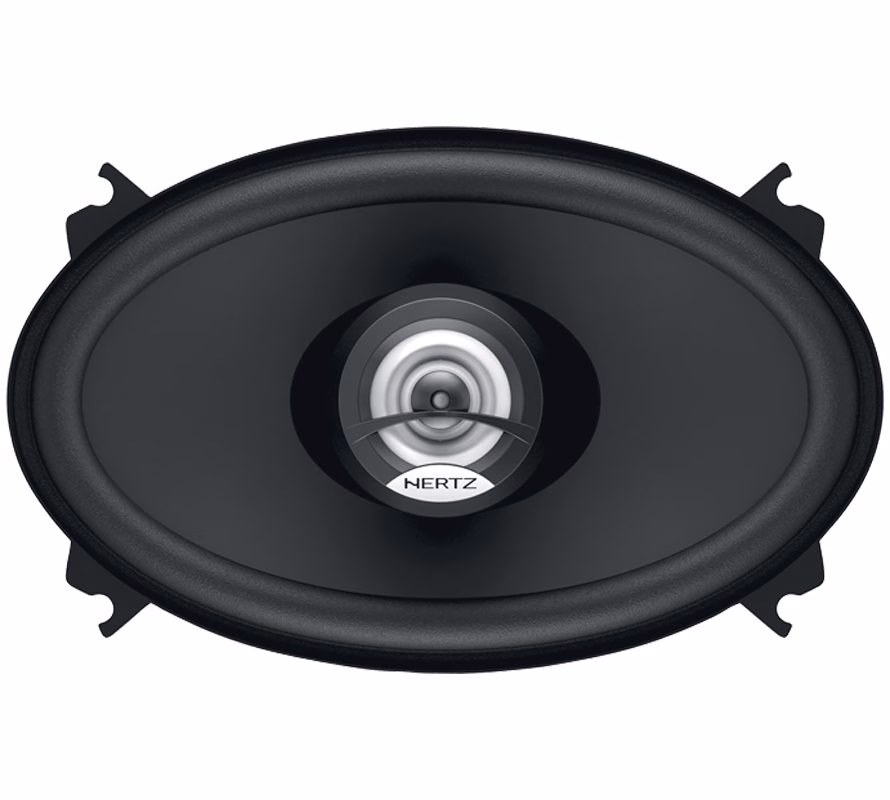

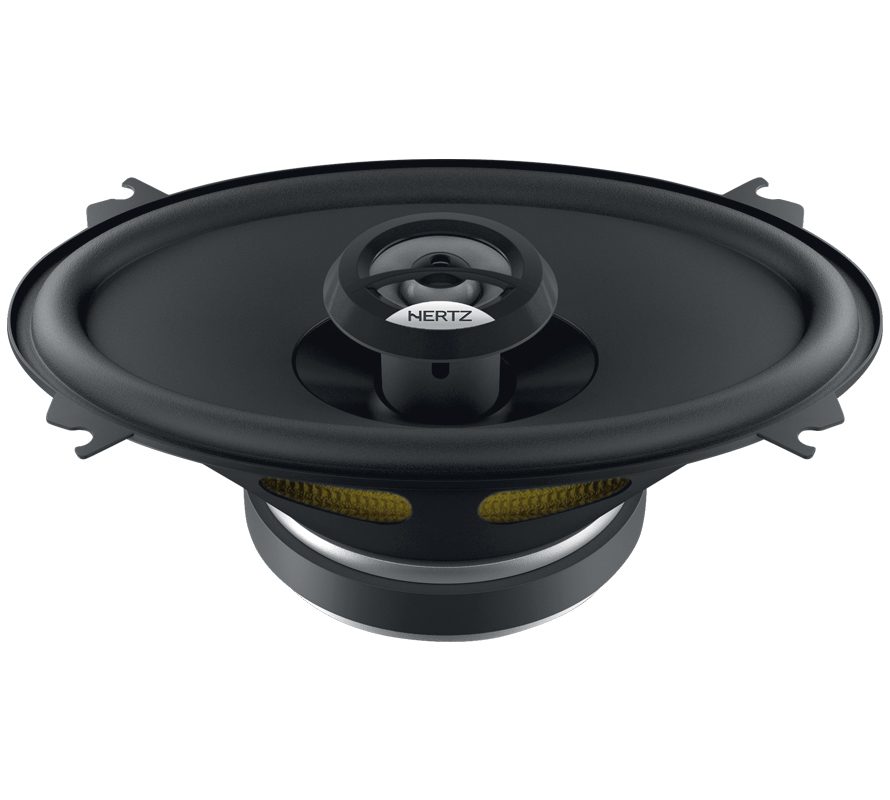

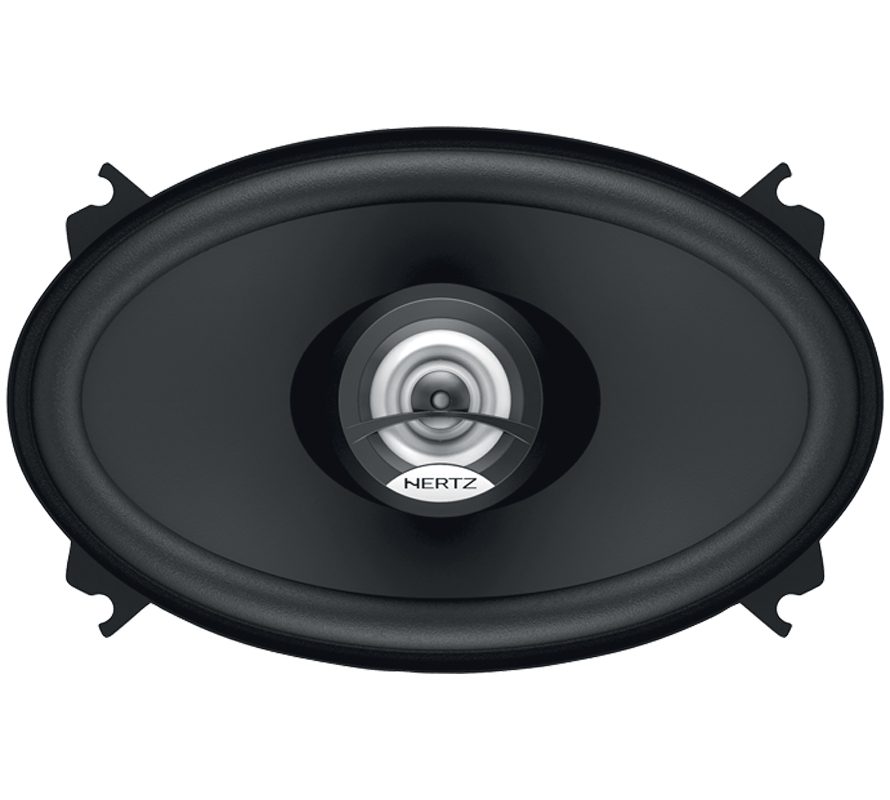

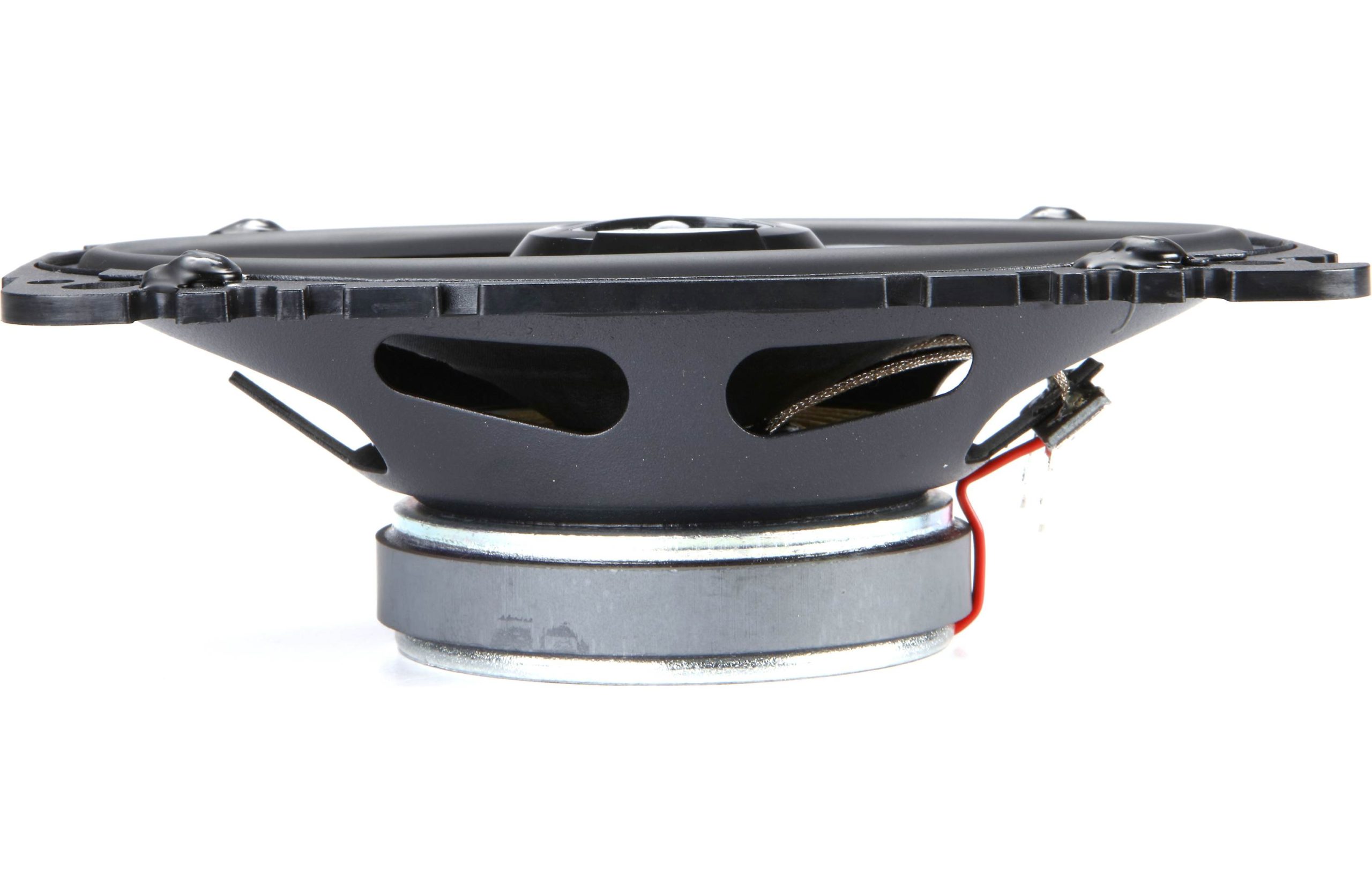

Hertz Dieci DCX 460.3 4″x 6″ 2-way Coaxial Speaker

Description

Hertz Dieci DCX 460.3 4″x 6″ 2-way Coaxial Speaker

This 2-way coax speaker is designed to satisfy specific installation and listening needs. DCX 460.3 features a neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a copper mobile voice coil wound on conex former. An extremely light, yet stiff structure ensures linear frequency response and a high sensitivity level.

Features

• Large motor assembly for mobile voice coil control.
• Pure copper voice coil, wound on conex former, for maximum lightness.
• Water-repellent treated paper cone.
• TPU surround, for wide excursion and resonance damping.
• Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
• DIN size basket protected by abrasion-proof dust paint.
• Tin-plated, high current terminals.
• Silver-plated lead wires for maximum reliability and conductivity.
• Epoxy glue for basket and motor system provides perfect coupling.
• Low carbon content plates for maximum magnetic permeability and high heat dissipation

Specification

• Two way coaxial
• Woofer size (in.): 6×4
• Tweeter size mm (in.): 15 (0.6)
• Power handling W peak: 80 / W continuous: 40
• Impedance: 4ohms
• Frequency response Hz: 65 ÷ 21k
• Sensitivity dB SPL: 93
• Magnet size D·d·h mm (in.): 80 x 32 x 10 (3.1 x 1.3 x 0.4)
• Voice coil Ø mm (in.): 25 (1.0)
• Woofer magnet: High density flux ferrite
• Tweeter magnet: Neodymium
• Woofer cone: Water-repellent pressed paper
• Tweeter dome: PEI
• Weight kg (lb.): 0,58 (1.28)
