Audison Prima APK 690 6X9″ 2 Way Car Component Door Speakers 100W RMS

Description

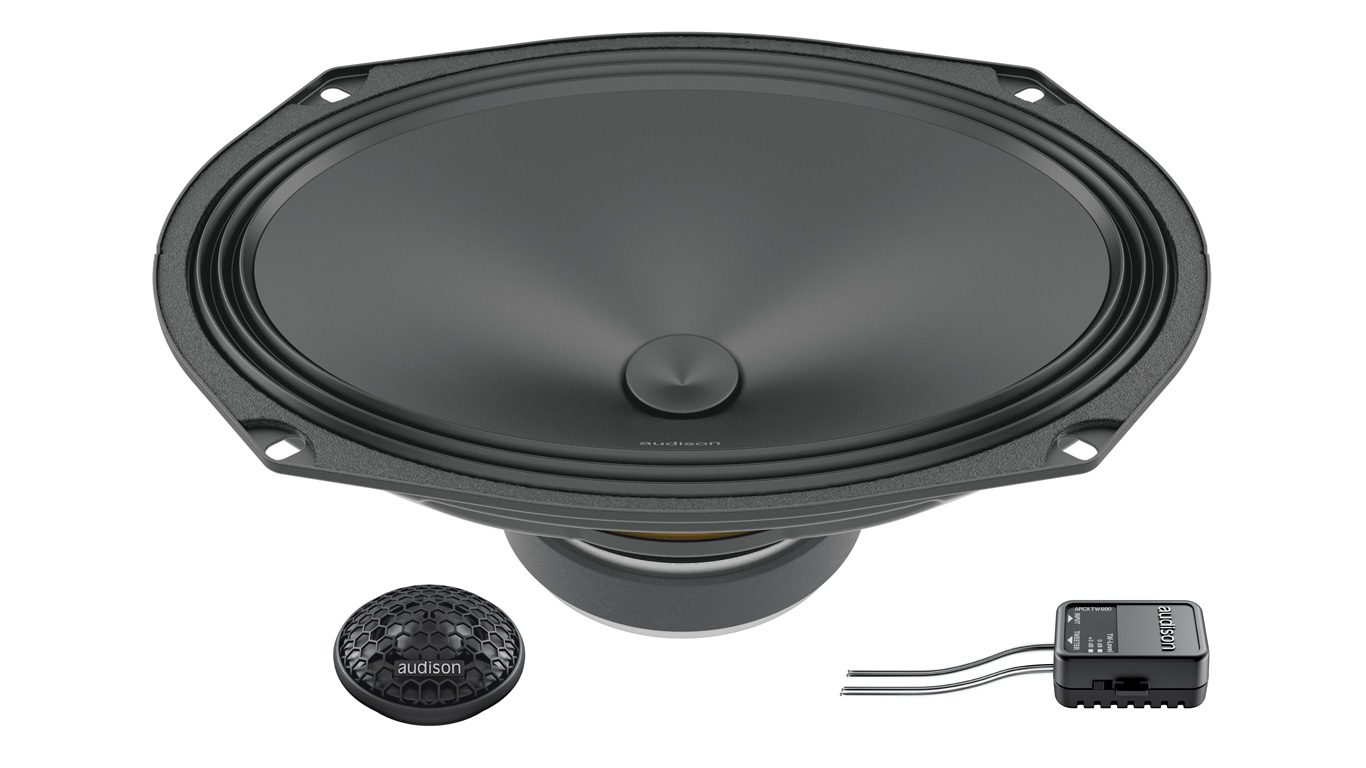

Audison Prima APK 690 6X9″ 2 Way Car Component Door Speakers 100W RMS

Designed specifically for cars with a 6″ X 9″ speaker position as standard, we are now able to give these the “Prima Treatment”. The 6 X 9 woofer features an optimised cone topography to ensure the best dispersion possible while featuring a very efficient motor for high levels even when running directly from a head unit. The 1″ tweeter comes with a number of mounting options and a small, dedicated crossover network featuring attenuation for fine tuning.

Features

AP 1 Tweeter

• 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
• Acoustic lens designed to compensate for the in-car frequency response in the 10kHz – 13kHz bandwidth caused by critical OEM placements.


AP 690 Woofer

• 25 mm pure copper voice coil, for high power handling and outstanding low frequency control.
• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
• Reduced mounting depth, providing ease of installation in OEM placements.
• “Triple Wave” surround profile for maximum excursion linearity.
• Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
• High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection.


APCX TW 690 Crossover

• Optimized for OEM Integration featuring an attenuation switch (0 dB, +3dB) to tune the in-car response according to different installation conditions.
• Supplied with fast-on connectors that eliminate any possible connection errors.


Technical Specifications

• Comp – 2-Way System
• Size – Woofer 6 x 9″, Tweeter 26mm (1″)
• Power Handling – 100 W Continuous Power, 300 W Peak Power
• Impedance – 4 Ω
• Frequency Response – 40 – 20kHz
• Crossover Type – HP 6 dB Oct – 3.3kHz
• Woofer Magnet Size – 90mm (3.54″) x 32mm (1.26″) x 15mm (0.59″)
• Tweeter Magnet Size – 19mm (0.75″) x 13mm (0.12″)
• Weight of one component – Woofer 1.17 Kg (2.58 lb), Tweeter 0.04Kg (0.09 lb)
• Voice coil Ø – Woofer 25mm (1″), Tweeter 20mm (0.78″)
