Description

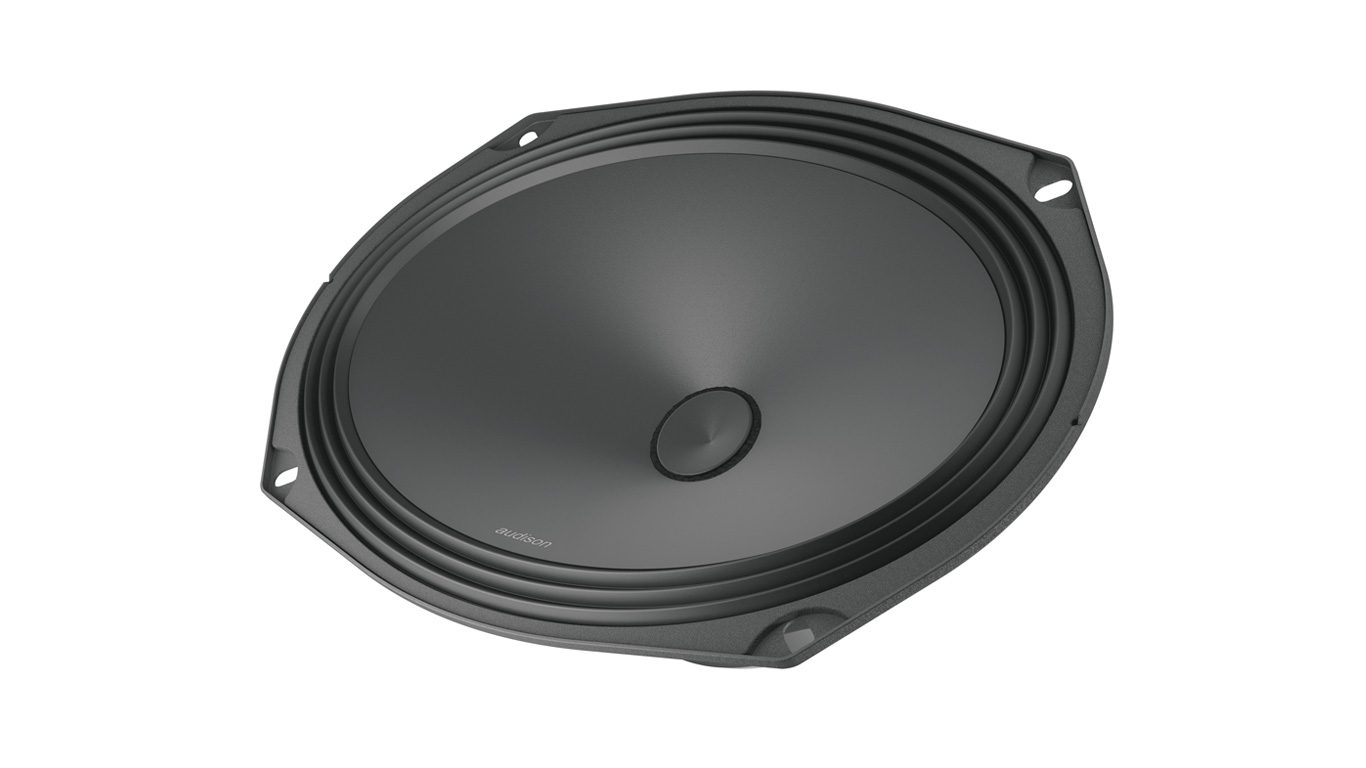

Audison Prima AP 690 6X9″ Car Door Speakers Woofer Component 100W RMS
Following the design criteria of the rest of the Prima range, this 6 X 9 woofer is optimised for use in door panels. The ability to add a tweeter to it to create a 2-way system negates many of the imaging problems associated with running coaxial speakers in car doors.
An innovative dust cap provides mechanical cut off resulting in a woofer that requires no filtering and can be run directly form a full range amplifier.
Features
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
- Reduced mounting depth, providing ease of installation in OEM placements.
- “Triple Wave” surround profile for maximum excursion linearity.
- Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection.
Technical Specifications
- Comp – Woofer
- Size – 6 x 9 in.
- Power Handling – 100 W Continuous Power, 300 W Peak Power
- Impedance – 4 Ω
- Frequency Response – 40 ÷ 5k Hz
- Sensitivity – 95 dB/Spl
- Magnet – High density flux ferrite
- Dome – Water-repellent treated paper cone
