Audison VOCE AVK 6A P II Kit | 300 W Peak Power | 165 mm (6.5 in.) | 4 ohm

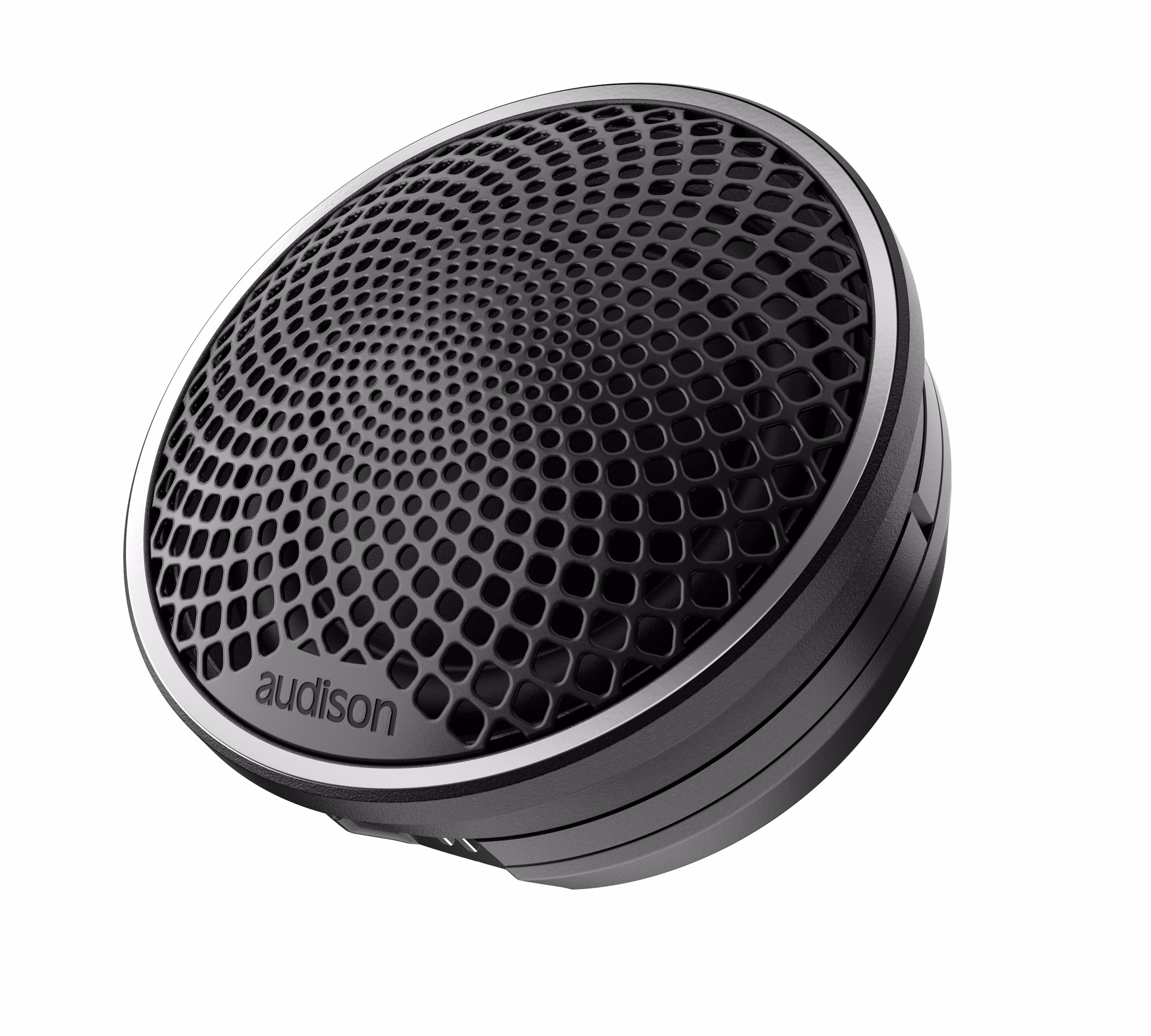

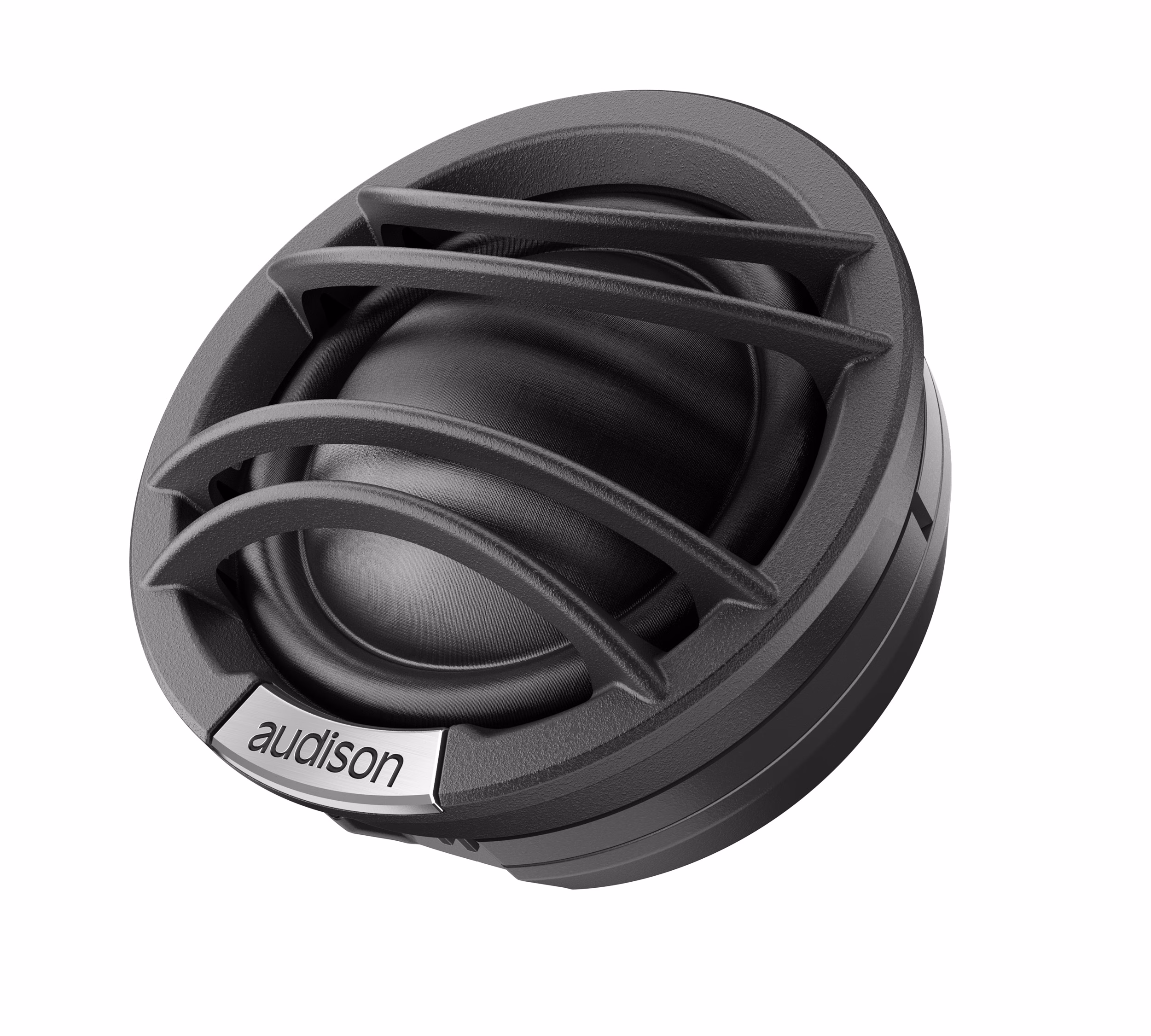

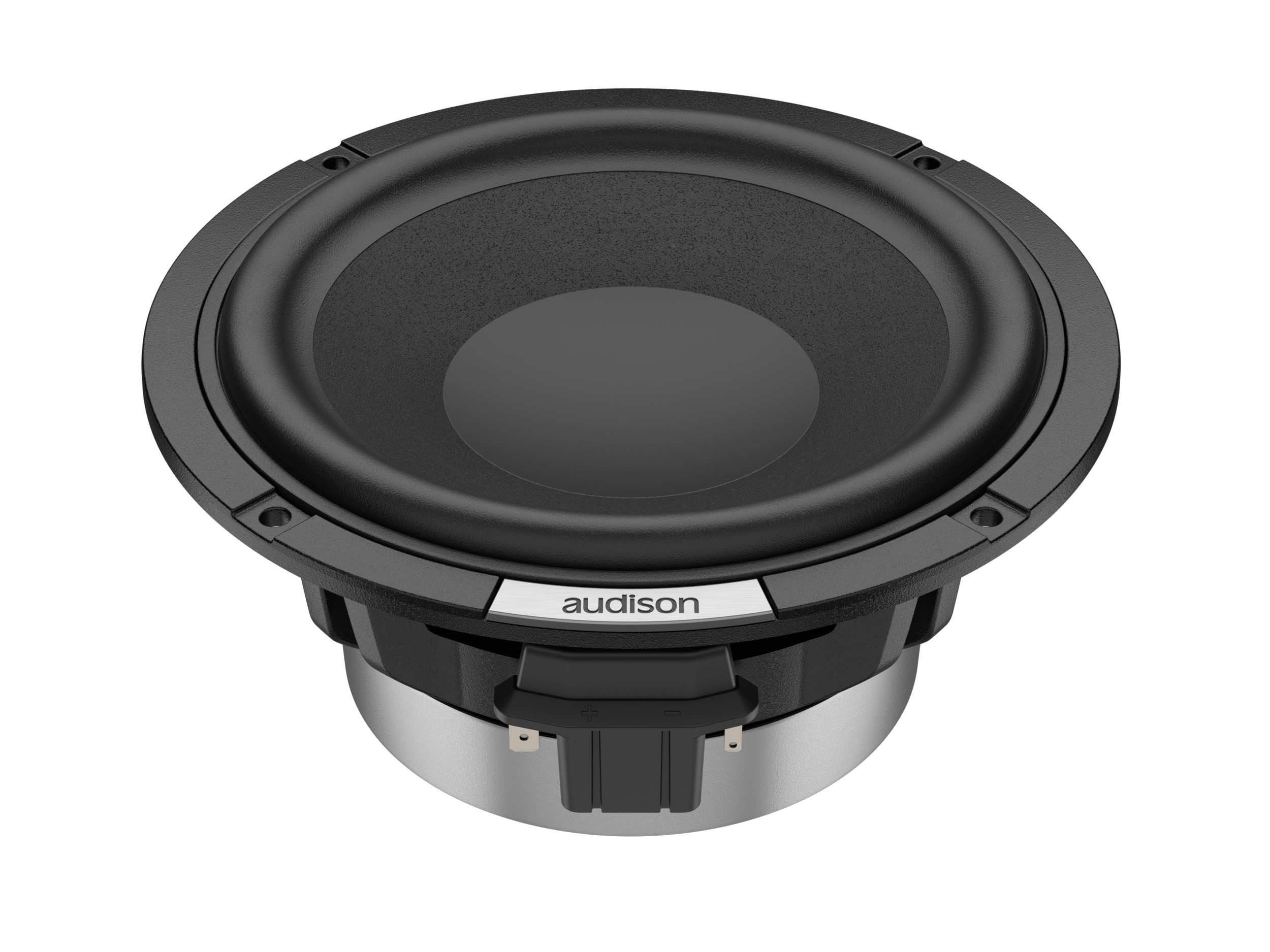

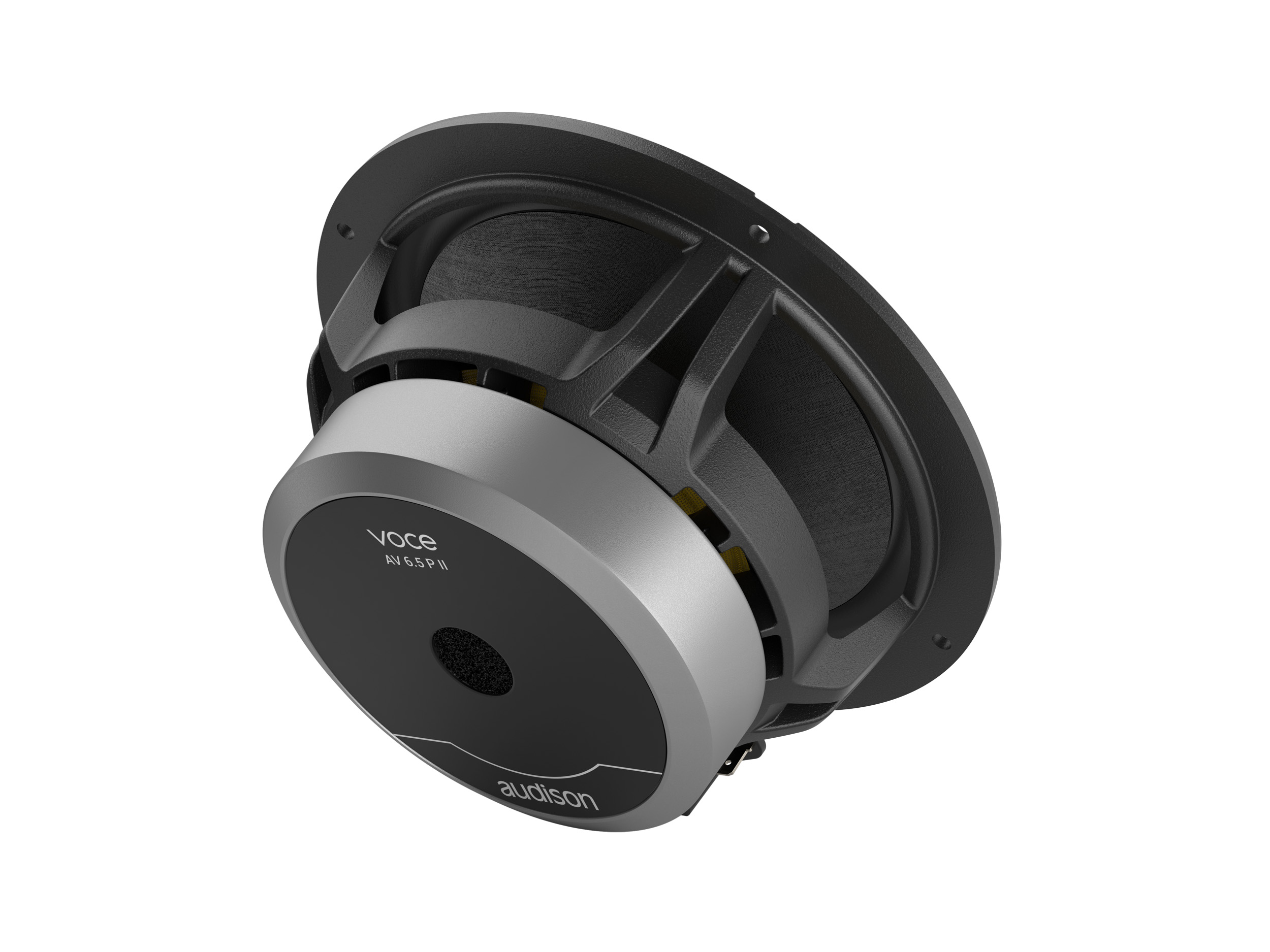

The Audison VOCE II AVK 6A P II system, engineered for dynamic performance, integrates the AV 1.1 II Hi-Res Tweeter and AV 6.5 P II Mid-Bass component. This combination achieves extraordinary power handling up to 150W RMS, attributed to the 1.6 in. (40 mm) CCAW voice coil that ensures exceptional durability and dynamic response. The system excels in delivering powerful mid-bass performance, capturing the full essence of music with clarity and precision. Enhanced installation flexibility is provided by OEM-style and Faston connectors, ensuring seamless integration into any vehicle setup.
Technical Specs LF
| Woofer Size |
165 mm (6.5 in) |
| Impedance |
4 Ohm |
| Power Handling – Peak |
300 W |
| Power Handling – Continuous |
150 W |
| Frequency Response |
45 – 7500 Hz |
| Voice Coil Diameter |
40 mm (1.57 in) |
| Magnet Material |
HIGH DENSITY FLUX FERRITE |
| Magnet Size |
100 X 45 X 18 |
| Cone Material |
PRESSED PAPER CONE |
Technical Specs HF
| Tweeter Size |
28 mm (1.1 in) |
| Frequency Response |
1000 – 40000 Hz |
| Power Handling – Peak |
180 W |
| Voice Coil Diameter |
28 mm (1.57 in) |
| Dome Material |
TETOLON FIBER |
Electric-acoustic Specs LF
| Re |
2.9 Ohm |
| Fs |
66 Hz |
| Mms |
15.3 g |
| Cms |
0.28 |
| BL |
5.5 |
| Qms |
9 |
| Qes |
0,61 |
| Qts |
0.57 |
| Vas |
9.09 l |
| Le |
0.3 mH |
| Spl |
91 dB |
| Xmax |
4.95 mm (0.19 in) |
General
| Weight Woofer |
1.6 kg |
| Weight Tweeter |
0.1 kg |
| Weight Crossover |
0.1 kg |
Dimensions
 |
| Dimension A |
165 mm (6.5 in) |
| Dimension A1 |
48 mm |
| Dimension B |
140.8 mm (5.54 in) |
| Dimension C |
74.2 mm (2.92 in) |
| Dimension D |
69.8 mm (2.75 in) |
| Dimension B1 |
44.9 mm |
| Dimension C1 |
26.7 mm |
| Dimension D1 |
16.5 mm |
Frequency Response
Tweeter
|
Woofer
|
