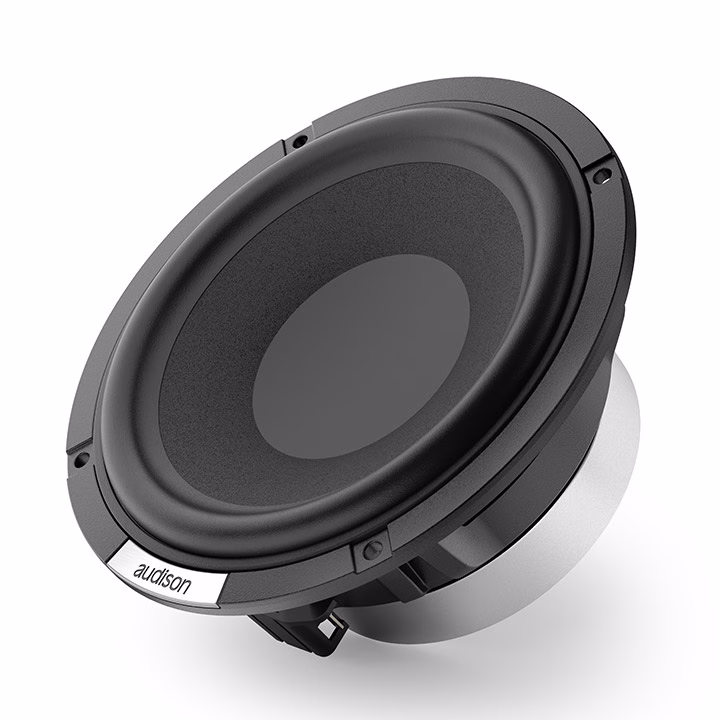

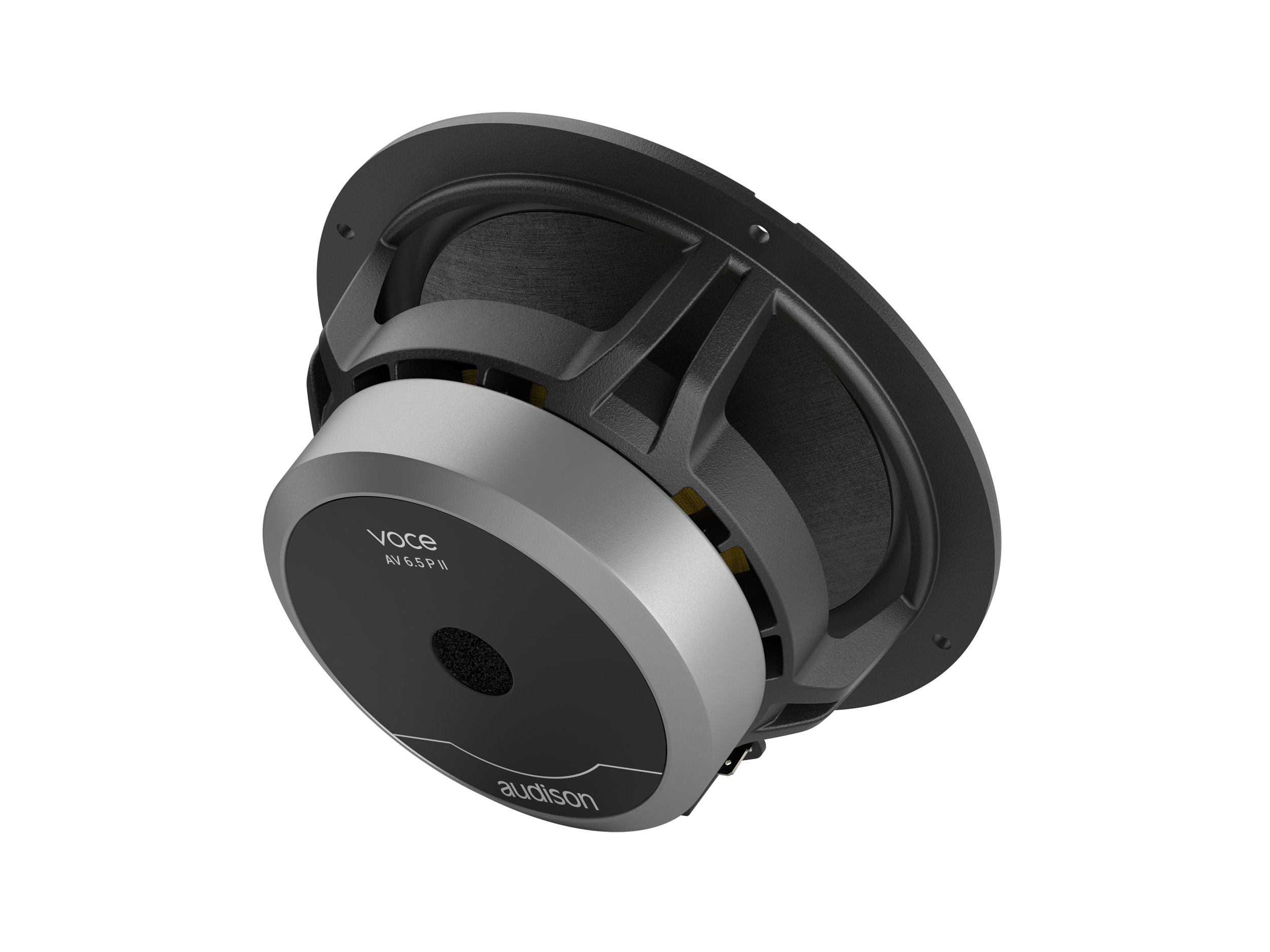

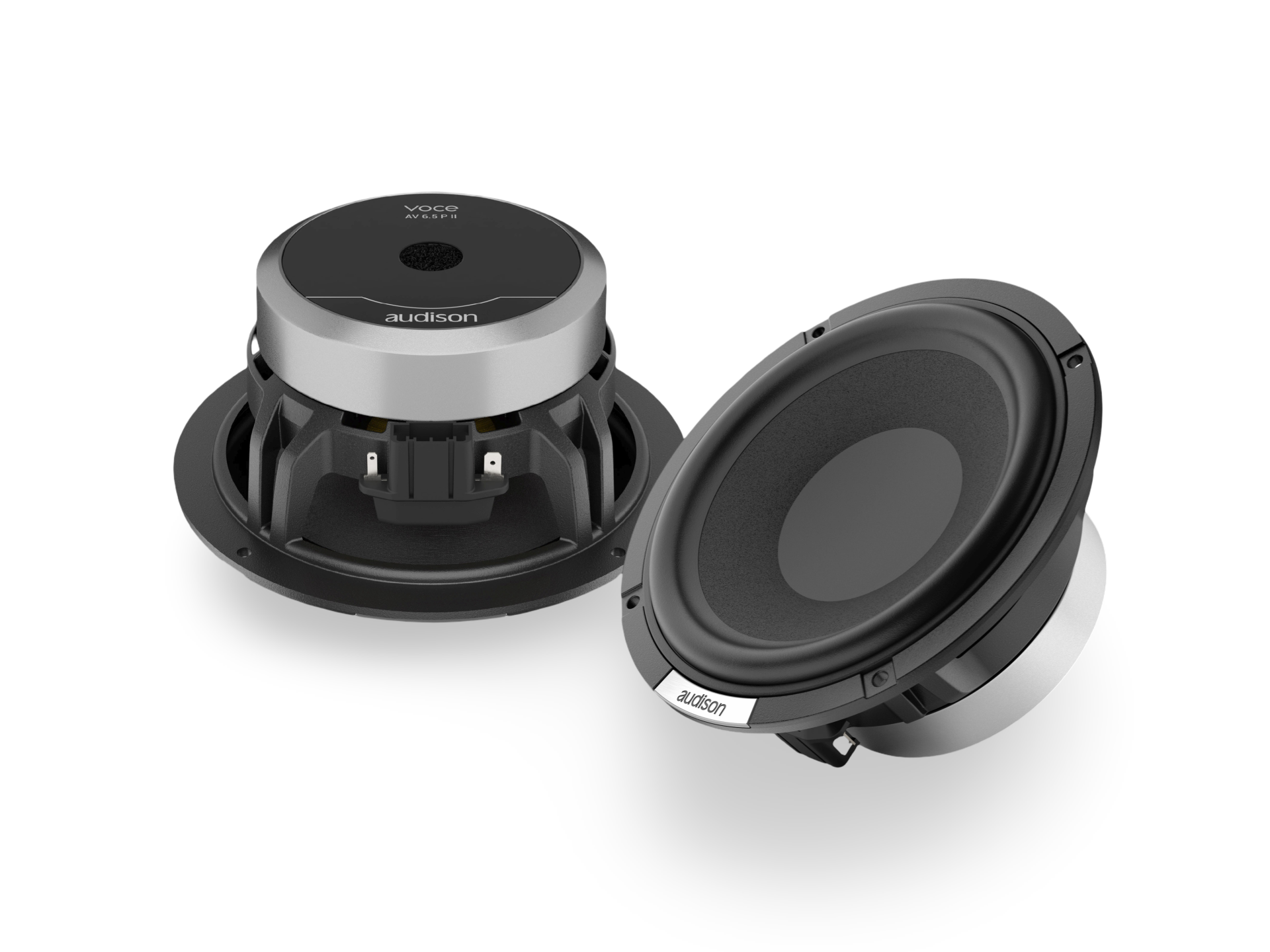

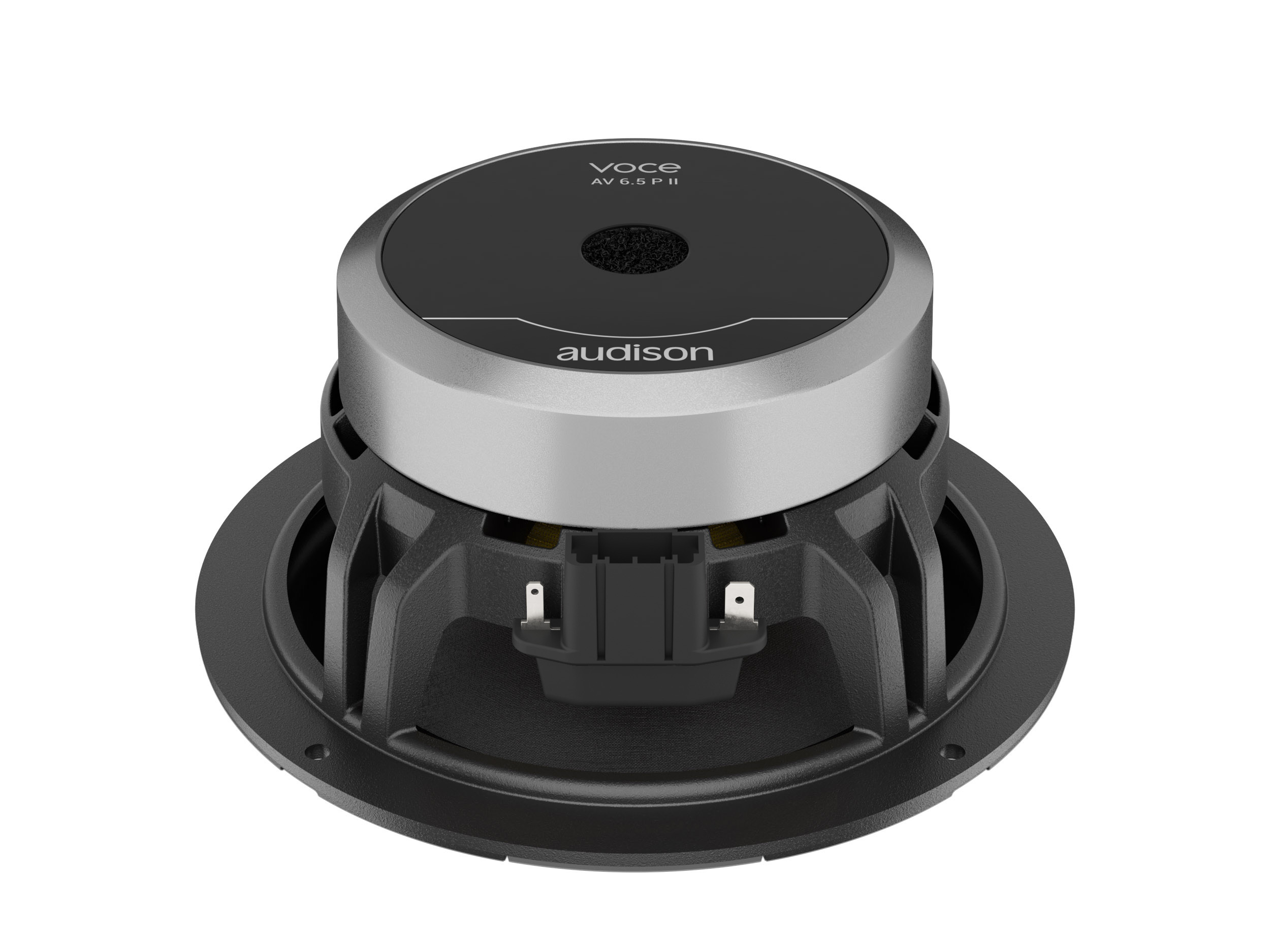

Audison Voce II – AV 6.5 P II – 300W 6.5″ Mid Range Speakers
The Audison VOCE II AV 6.5 P II woofer is engineered to deliver exceptional sound clarity and precision. It naturally rolls off at off-axis positions, eliminating the need for a low-pass filter in most door installations and reducing phase shifts common with other filters. It can employ a gentle 6 dB/Octave filter to enhance low and mid-bass tones, further enriching sound quality. The woofer’s OEM-style connector, compatible with FASTON terminals and designed for seamless integration, features a unique T-shaped pole piece with an aluminum ring to minimize distortion and enhance frequency response.
Technical Specs
| Nominal diameter | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Minimum Impedance | 3.1 Ohm |
| Power Handling – Peak | 300 W |
| Power Handling – Continuous | 150 W |
| Sensitivity | 91 dB |
| Frequency Response | 45 – 7500 Hz |
| Voice Coil Ø | 40 mm (1.6 in) |
| Chassis Material | ALUMINIUM |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h | 100 x 45 x 18 (3.9 x 1.8 x 0.7) mm |
| Voice Coil Material | CCAW |
| Former Material | GLASS FIBER |
| Cone Material | SEMI-PRESSED PAPER |
| Surround Material | RUBBER |
| Xmax | 4.95 mm (0.19 in) |
| Xmech | 7.5 mm (0.3 in) |
| Voice Coil Winding Height | 13 mm (0.51 in) |
| Gap Height | 6 mm (0.24 in) |
