Description

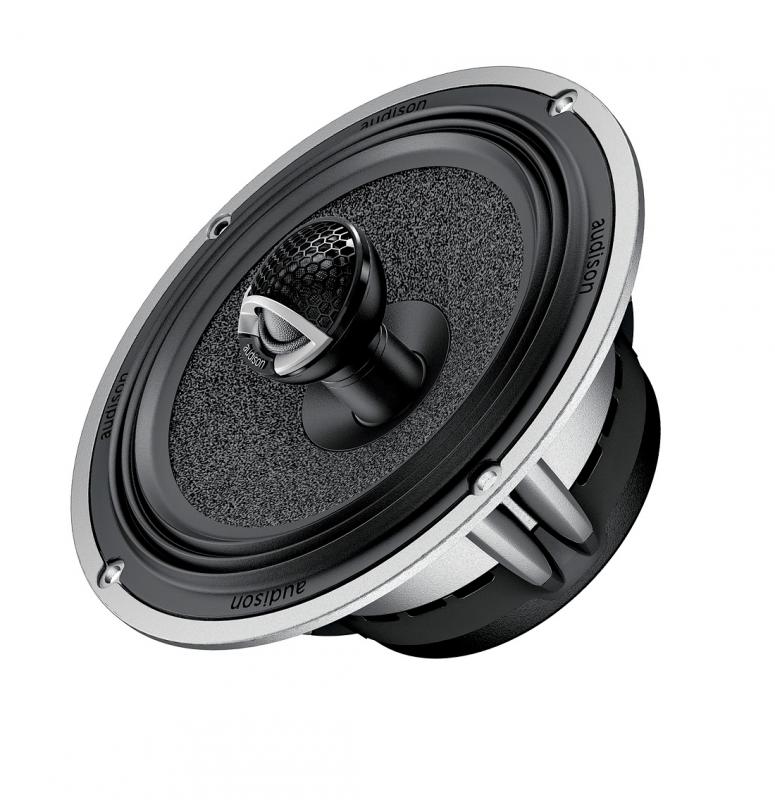

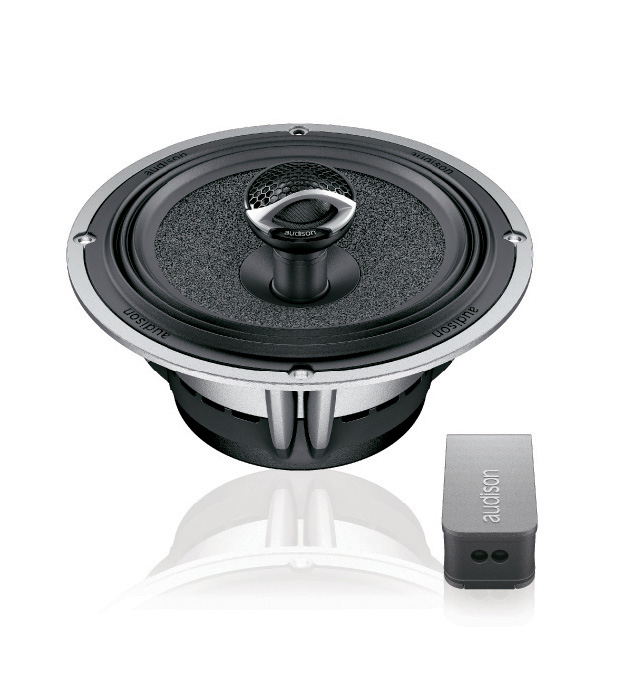

Audison VOCE AV X6.5 Coaxial | 200 W Peak Power | 165 mm | 4 ohm

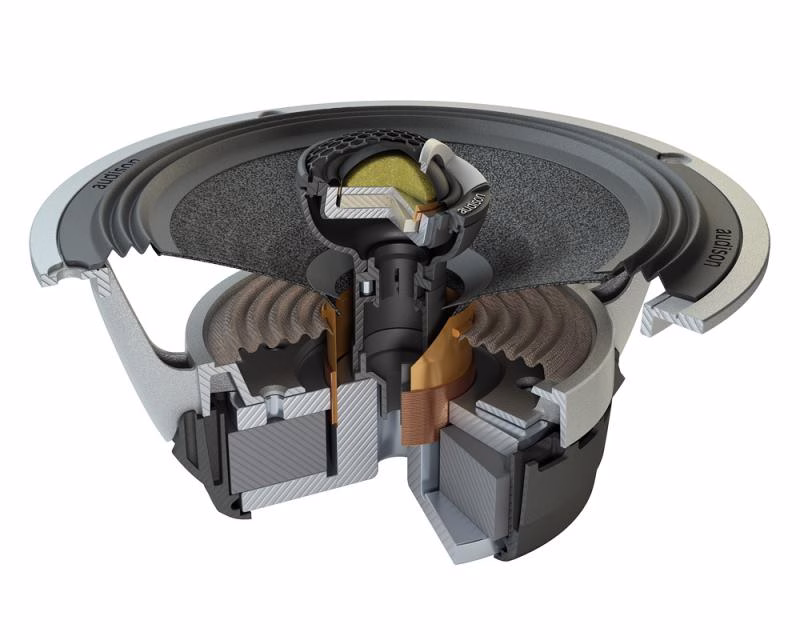

AV X6.5 coaxial speakers are the evolution of the woofers from the same line with the introduction of the excellent Tetolon dome tweeter and a refined dedicated crossover.
Technical Specs LF
| Woofer Size |
165 mm (6.5 in) |
| Impedance |
4 Ohm |
| Power Handling – Peak |
200 W |
| Power Handling – Continuous |
100 W |
| Sensitivity |
91 dB |
| Frequency Response |
50 ÷ 22k |
| Voice Coil Diameter |
30 mm (1.18 in) |
| Magnet Size |
90 x 40 x 15 |
| Xmax |
3 mm (0.12 in) |
| Recommended Crossover |
3.5 kHz @ 6/12 dB/Oct. |
Technical Specs HF
| Tweeter Size |
25 mm (0.98 in) |
| Tweeter Magnet Size |
25 x 3,5 |
Electric-acoustic Specs
| Re |
3.5 Ohm |
| Fs |
68 Hz |
| Mms |
16.1 g (0.57 oz) |
| Cms |
0.34 |
| Bl |
5.5 |
| Qms |
7.84 |
| Qes |
0,82 |
| Qts |
0.74 |
| Vas |
8.2 l (0.29 ft) |
| LE |
0.59 mH |
Dimensions
| Dimension A |
167 mm (6.57 in) |
| Dimension B |
146 mm (5.75 in) |
| Dimension C |
75.5 mm (2.97 in) |
| Dimension D |
69 mm (2.72 in) |
| Dimension E |
156 mm |
| Dimension F |
88 |
| Dimension G |
30 mm |
| Dimension H |
193 mm |
