Description

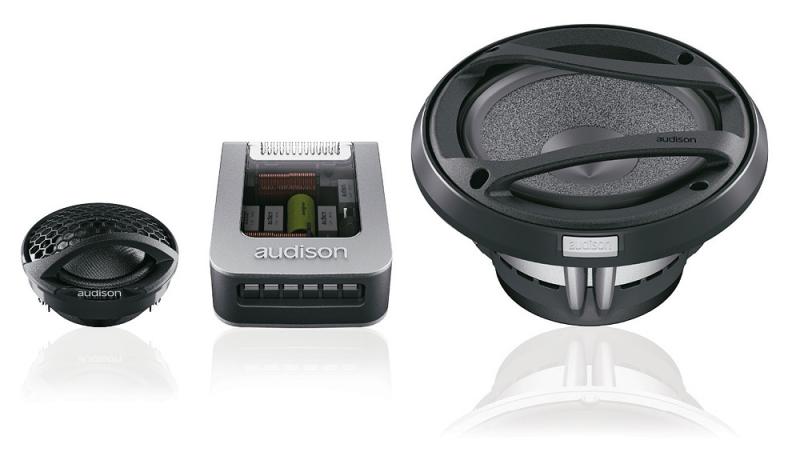

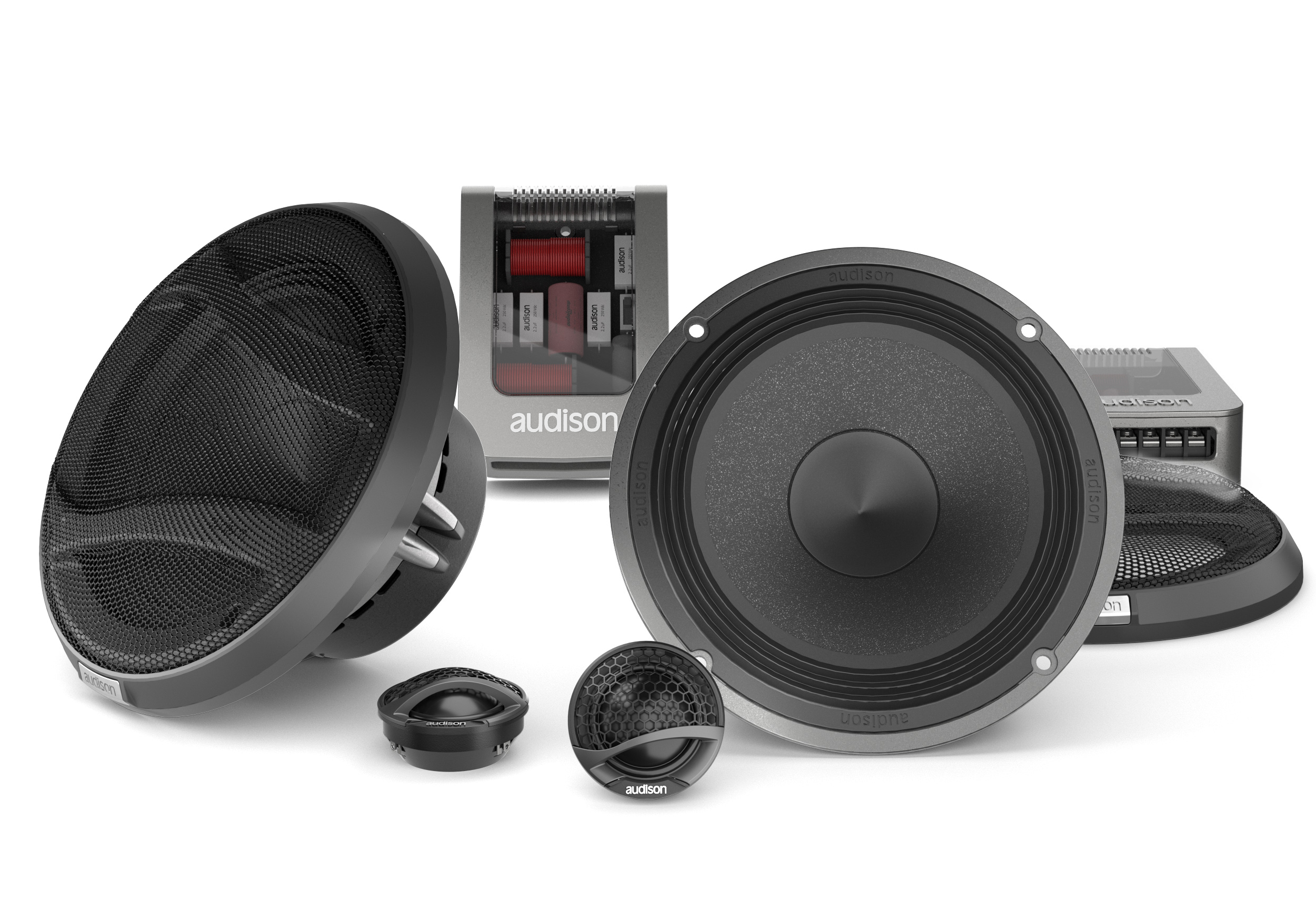

Audison VOCE AV K6 Kit | 250 W Peak Power | Kit 2 way 4 ohm | AV 1.1 + AV 6.5 + Crossover
The prestigious Eisa Award European In-Car Speaker System 2010-2011 was bestowed to the AV K6 and AV K5 kits, which gather and comprise the most advanced technologies developed for the Audison components, at the service of music.The whole R & amp;D laboratory’s experience was poured into the design of these precious components, to create a synergy that can offer the highest quality sound in terms of bandwidth, dynamics of the musical message, naturalness and richness of details. The new reference for their own category.
Technical Specs LF
| Woofer Size |
165 mm (6.5 in) |
| Impedance |
4 Ohm |
| Power Handling – Peak |
250 W |
| Power Handling – Continuous |
125 W |
| Frequency Response |
50 ÷ 22k |
| Voice Coil Diameter |
30 mm (1.18 in) |
| Magnet Size |
90 x 40 x 15 |
| Crossover Level Adjustment |
+2; 0; -2 dB |
Technical Specs HF
| Tweeter Size |
28 mm (1.1 in) |
| Voice Coil Diameter |
28 mm (1.18 in) |
Electric-acoustic Specs LF
| Re |
3.5 Ohm |
| Fs |
68 Hz |
| Mms |
16.1 g |
| Cms |
0.34 |
| BL |
5.5 |
| Qms |
7.84 |
| Qts |
0.74 |
| Vas |
8.2 l |
| Le |
0.31 mH |
| Spl |
91 dB |
| Xmax |
3 mm (0.12 in) |
Kit Tech Data
| Crossover Low-Pass |
Lo/Hi-Pass 2.5 kHz @ 12/12 dB/Oct. |
| Cone Diameter |
130 mm |
General
| Weight Woofer |
1.2 kg |
| Weight Tweeter |
0.07 kg |
