Description

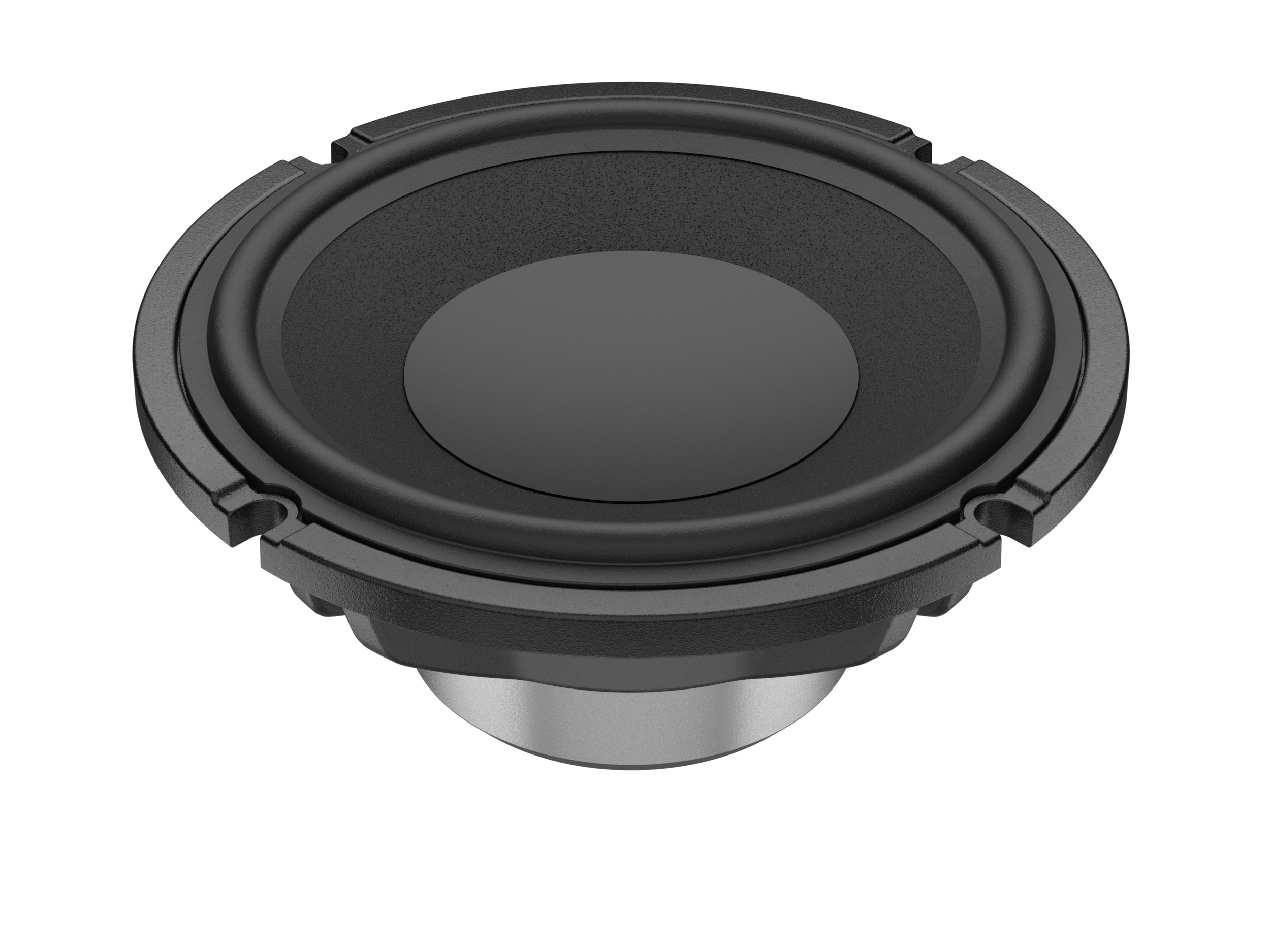

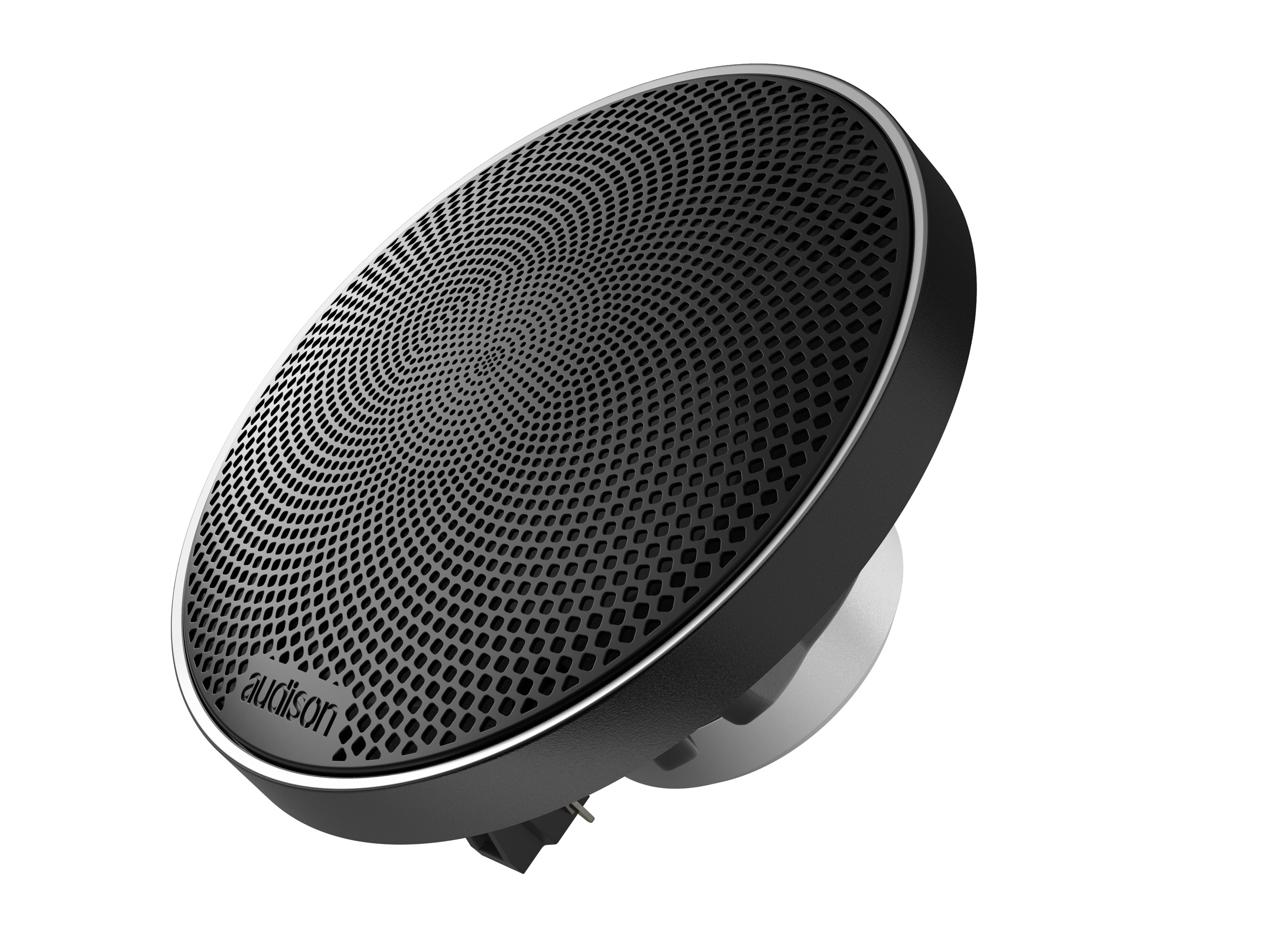

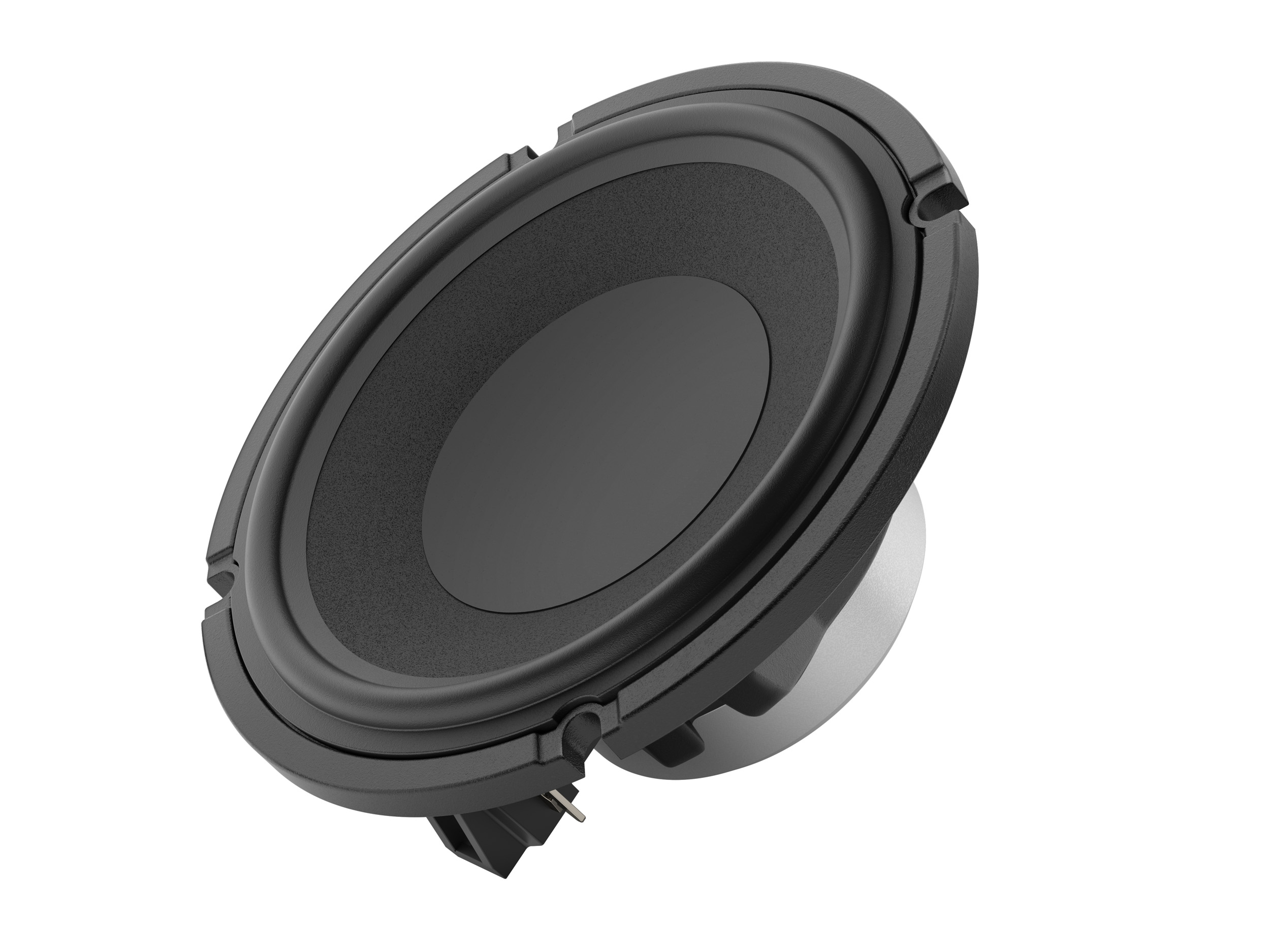

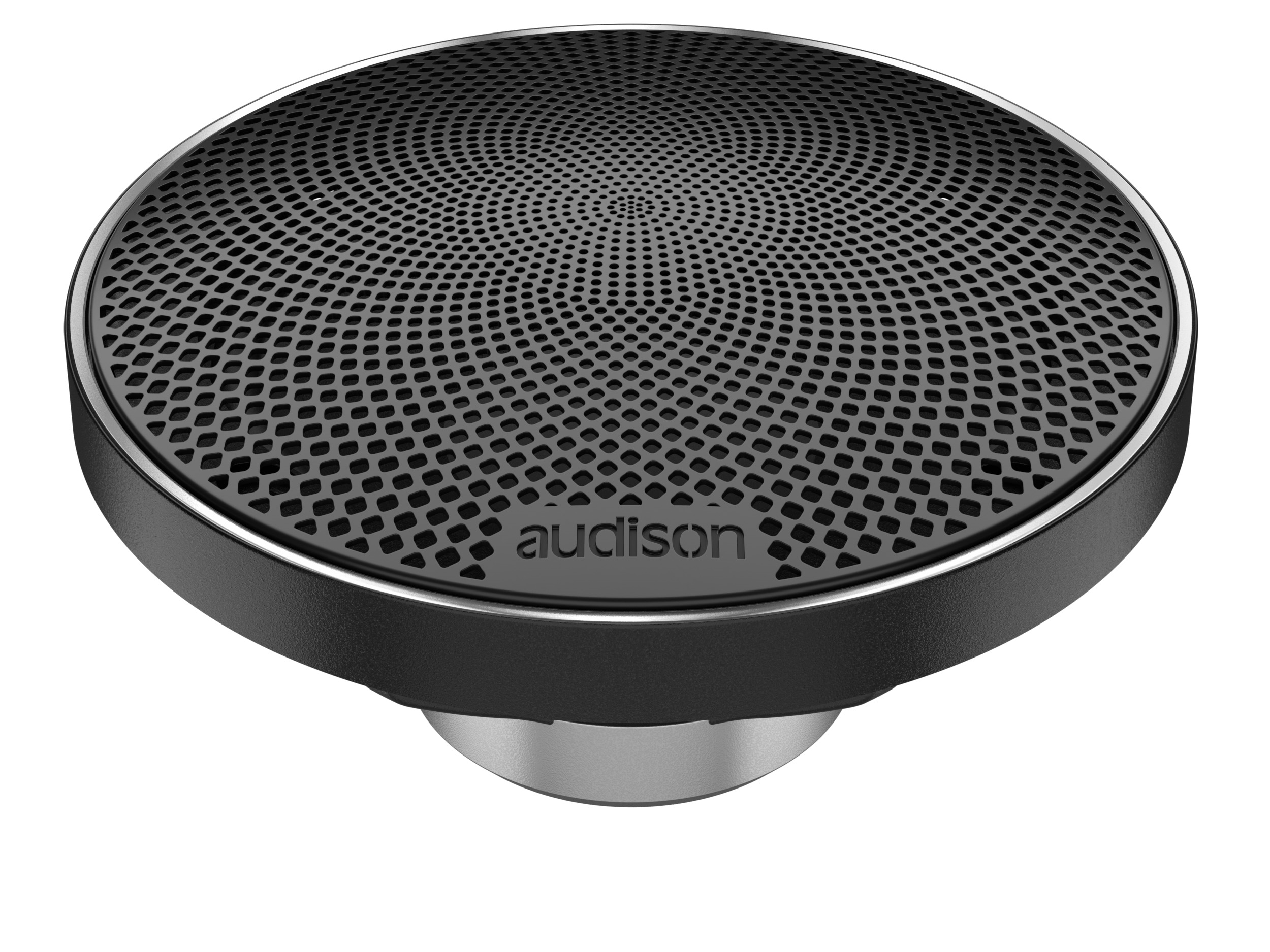

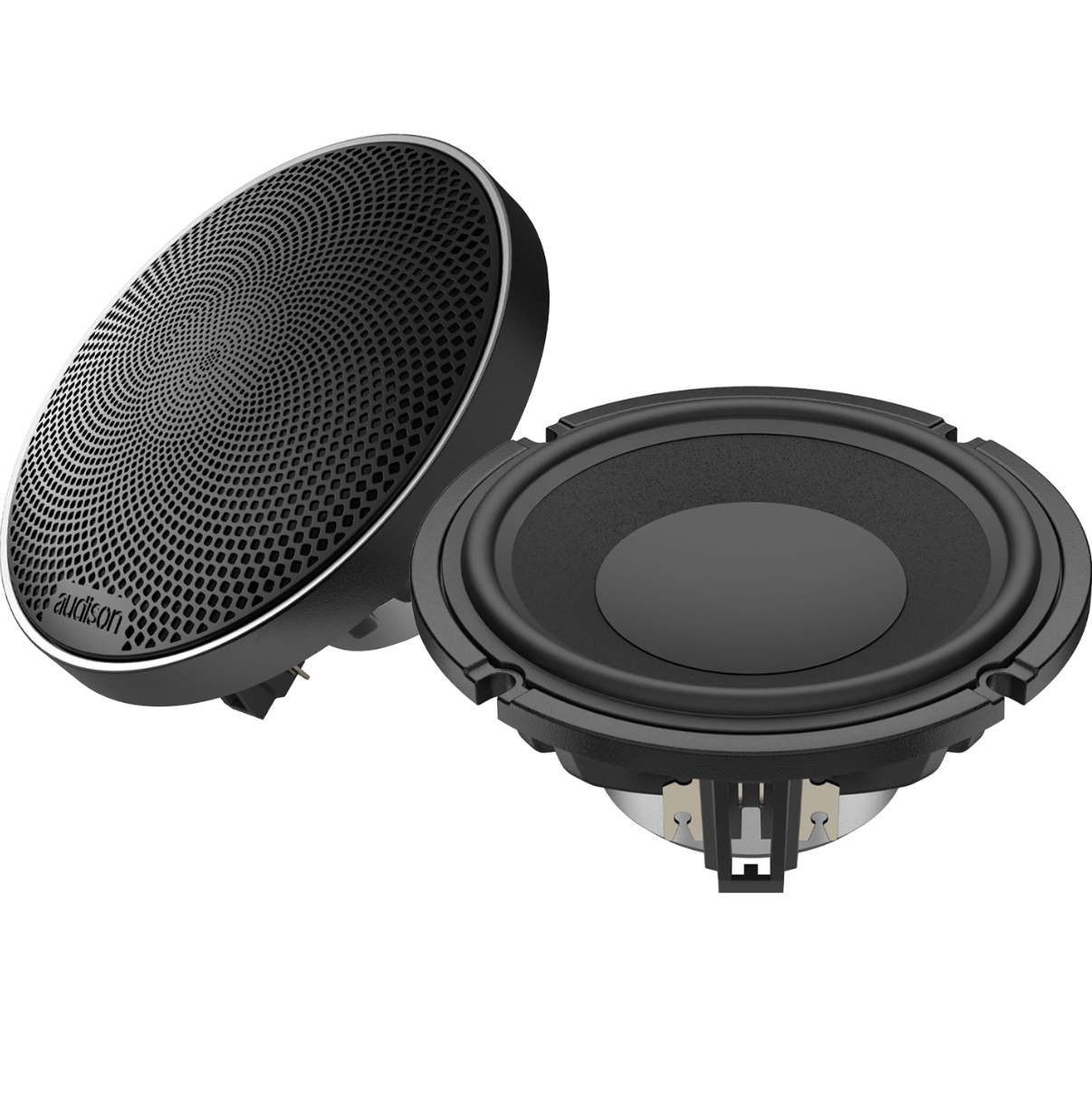

Audison Voce II – AV 3.0 II – 100W 3″ Mid Range Speakers Grille included
The Audison VOCE II AV 3.0 II mid-range speaker is meticulously crafted to deliver exceptional clarity and rich detail in the crucial mid-frequency range. Featuring a specialized cone made from pressed paper with cotton fibers, the AV 3.0 II offers an ideal balance of rigidity and responsiveness, enhancing sound reproduction for today’s car audio enthusiasts. This mid-range unit integrates seamlessly into any system with its compact design and is equipped with OEM-style connectors, ensuring straightforward and versatile installation options.
Technical Specification
- Nominal diameter – 70 mm
- Minimum Impedance – 3.2 Ohm
- Power Handling – Peak – 100 W
- Power Handling – Continuous – 50 W
- Sensitivity – 90 dB
- SPL measured at 2.83V/1m;
- Frequency Response – 160 ÷ 13000 Hz (-6dB)
- Voice Coil Ø – 26 mm
- Chassis Material – ALUMINIUM
- Magnet Material – NEODYMIUM
- Voice Coil Material – CCAW
- Former Material – GLASS FIBER
- Cone Material – SEMI-PRESSED PAPER
- Surround Material – RUBBER
- Xmax – 1.4 mm
- Xmech – 3.2 mm
- Voice Coil Winding Height – 5.3 mm
- Gap Height – 4.5 mm
- Crossover name – no
