Description

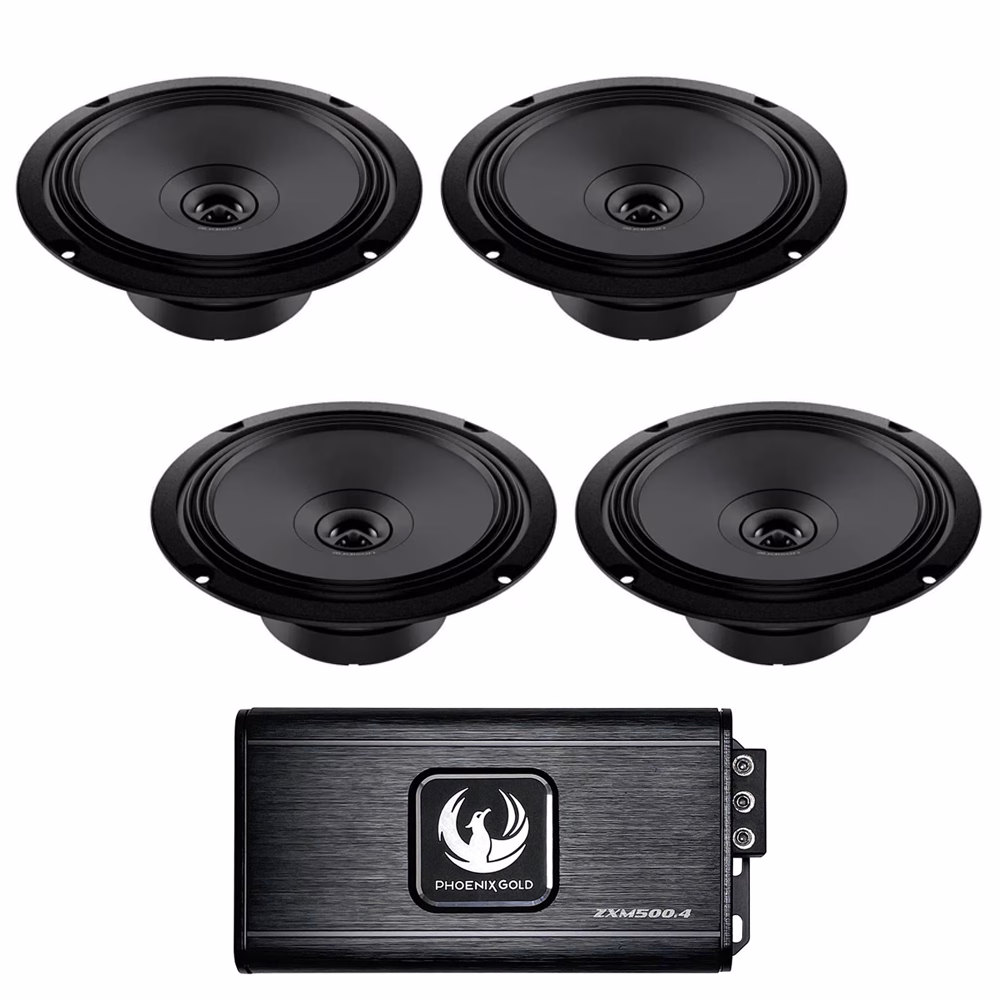

Audison Package Car Coaxial Door Speakers 4 Channel Amplifier Kit
Price including professional installation at our workshop in Leyton east London.
This package consits of:
- 2x Audison Prima APX 6.5 6.5″ 17cm Car Coaxial Door Speakers 70W RMS
- 1x Phoenix Gold ZXM5004 4CH MINI Amplifier – 1000W Max
- Wiring Kit

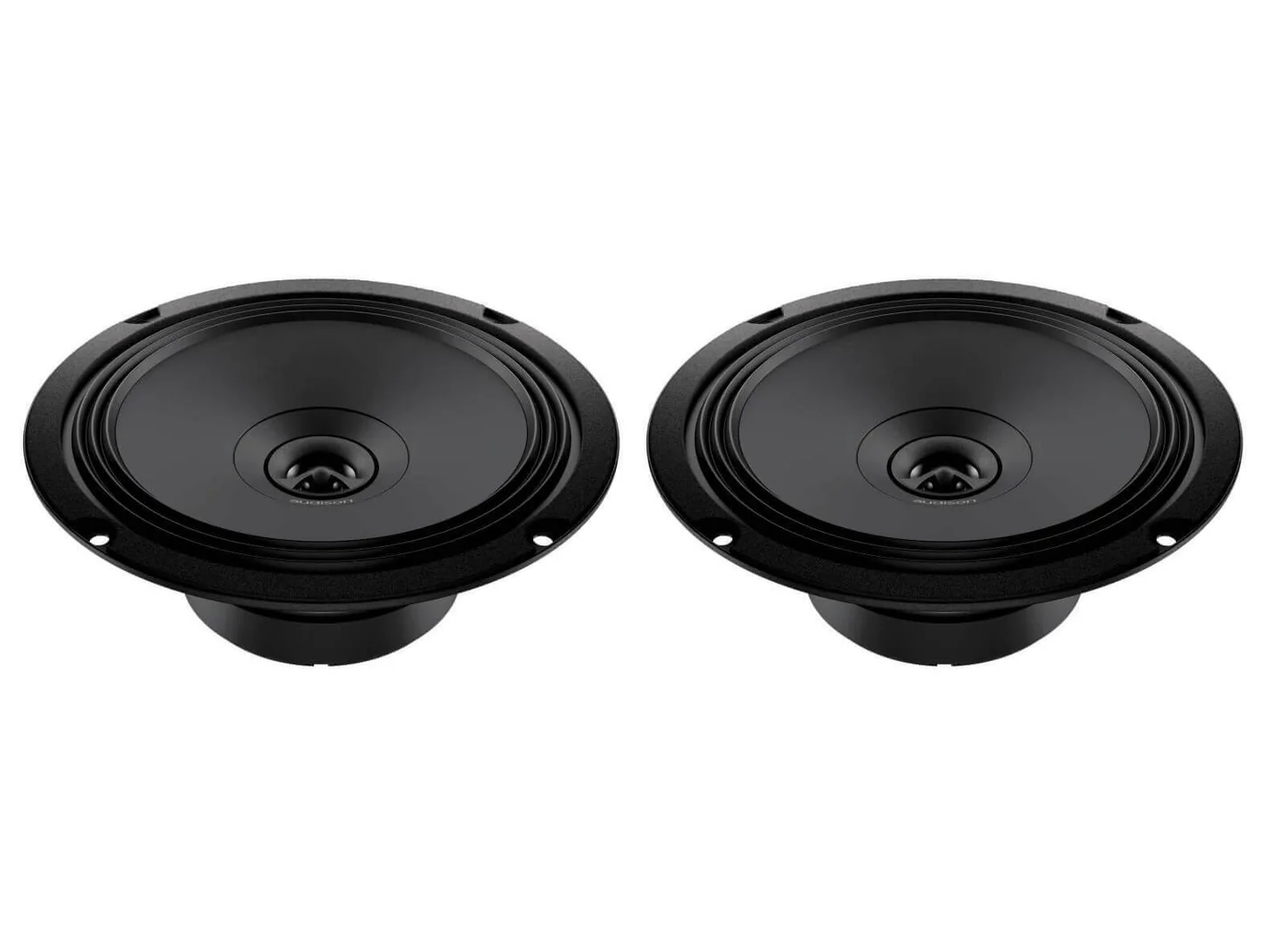

Audison Prima APX 6.5 6.5″ 17cm Car Coaxial Door Speakers 70W RMS
APX 6.5 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.
The 6.5″ cones surround features the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
PRODUCT DETAILS
- Comp Two way coaxial
- Size Woofer 165 mm (6,5″)
- Tweeter diaphragm 24 mm (0.9″)
- Power Handling 70 W Continuous Power
- 210 W Peak Power
- Impedance 4 Ω
- Frequency Response 60 ÷ 23k Hz
- Sensitivity 94 dB/Spl
- Magnet High density flux ferrite
- Dome Water-repellent pressed paper

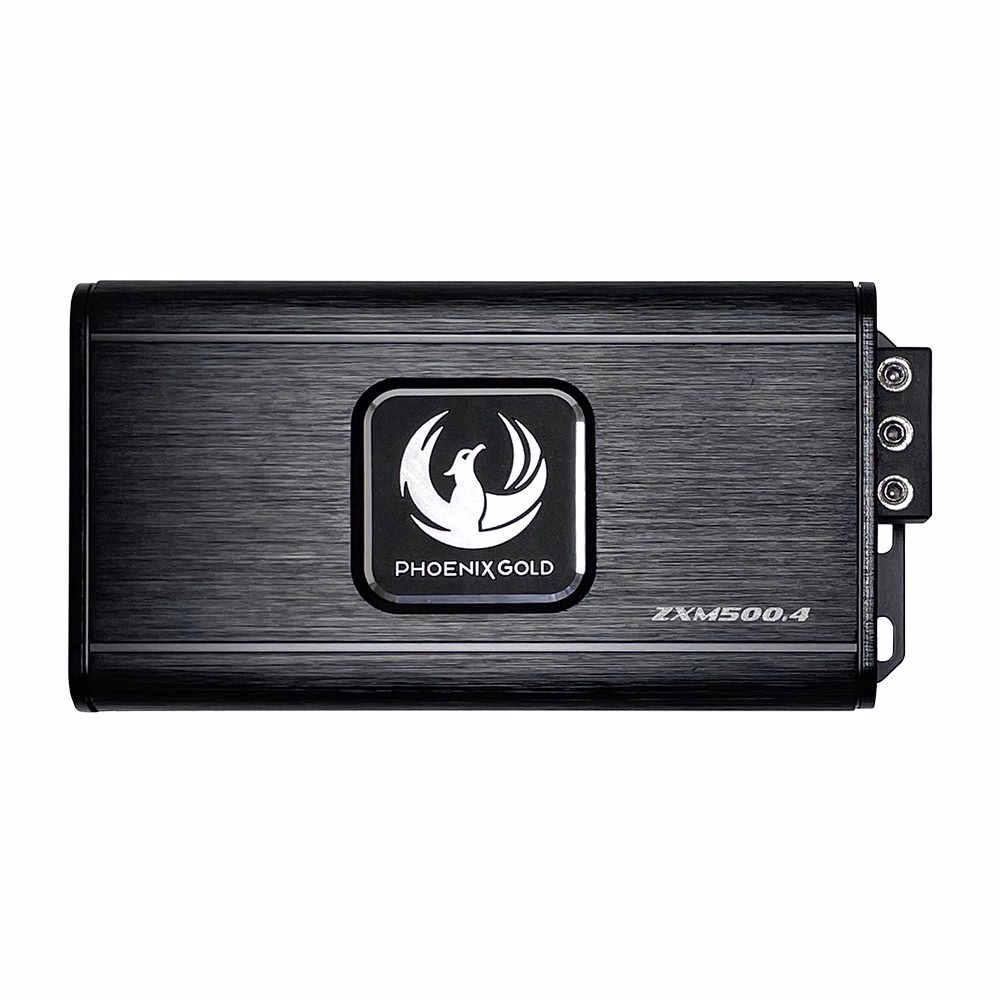

Phoenix Gold ZXM5004 4CH MINI Amplifier – 1000W Max
The ZXM500.4 is an impressive Class-D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level.
A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.
Key Features
Massive Power & Performance
Full Class-D technology offers efficiency & performance
Short circuit/thermal and high/low voltage protection
Excellent signal-to-noise ratio and FM noise rejection
Built-in protection LED light status indicator
Surface mount component technology
Ultra small size for easy installation
Autostart on high-level input
Full adjustable HP & LP filter
Specifications
Class-D 4-Channel Mini Amplifier
Power (MAX) 1000W
Power Ratings (RMS)
125W x 4 @ 2Ohm
80W x 4 @ 4Ohm
250W x 2 @ 4Ohm bridged
Frequency Response: 20Hz – 20kHz
Signal to Noise Ratio: > 90dB
Total Harmonic Distortion: < 0.3%
Low Pass Filter: 40Hz – 400Hz (12dB/Oct)
High Pass Filter: 40Hz – 400Hz (12dB/Oct)
High-Level Input Auto Turn-On
Dimensions (LxWxH) 165 x 83.1 x 34.8mm
