Description

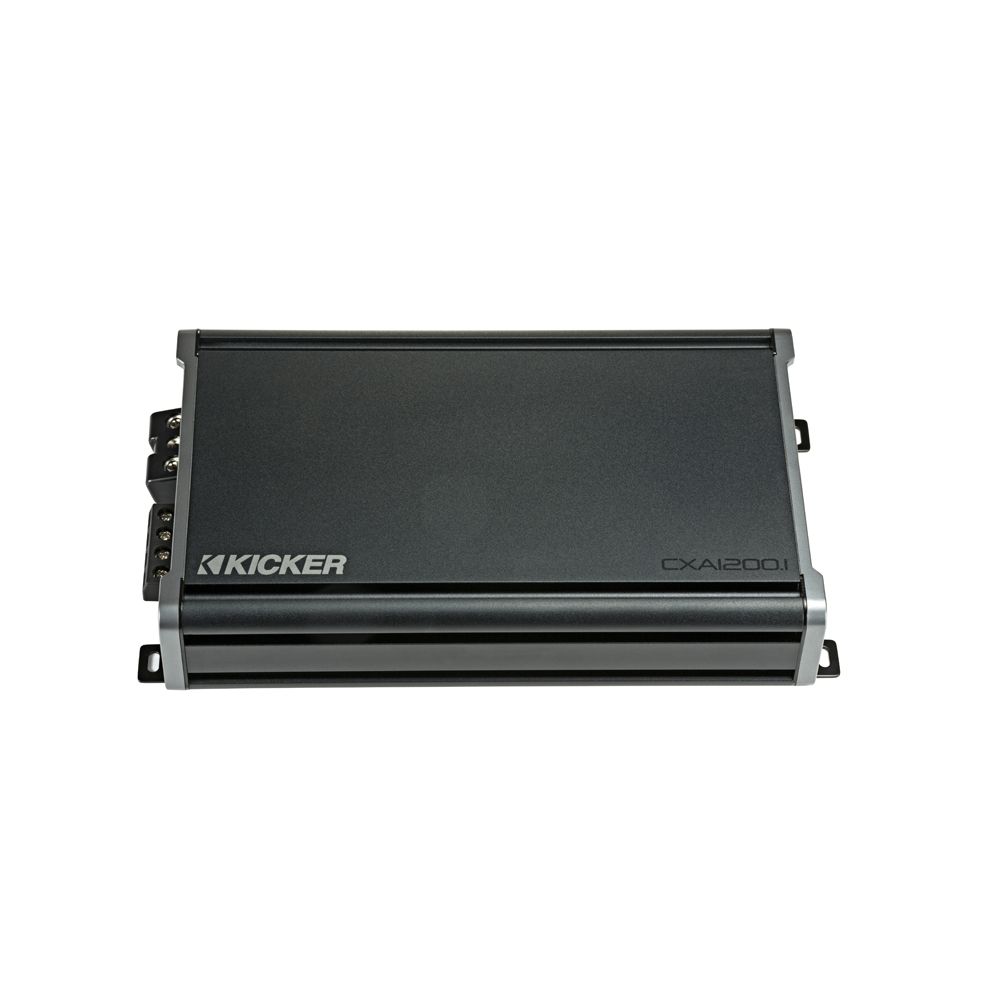

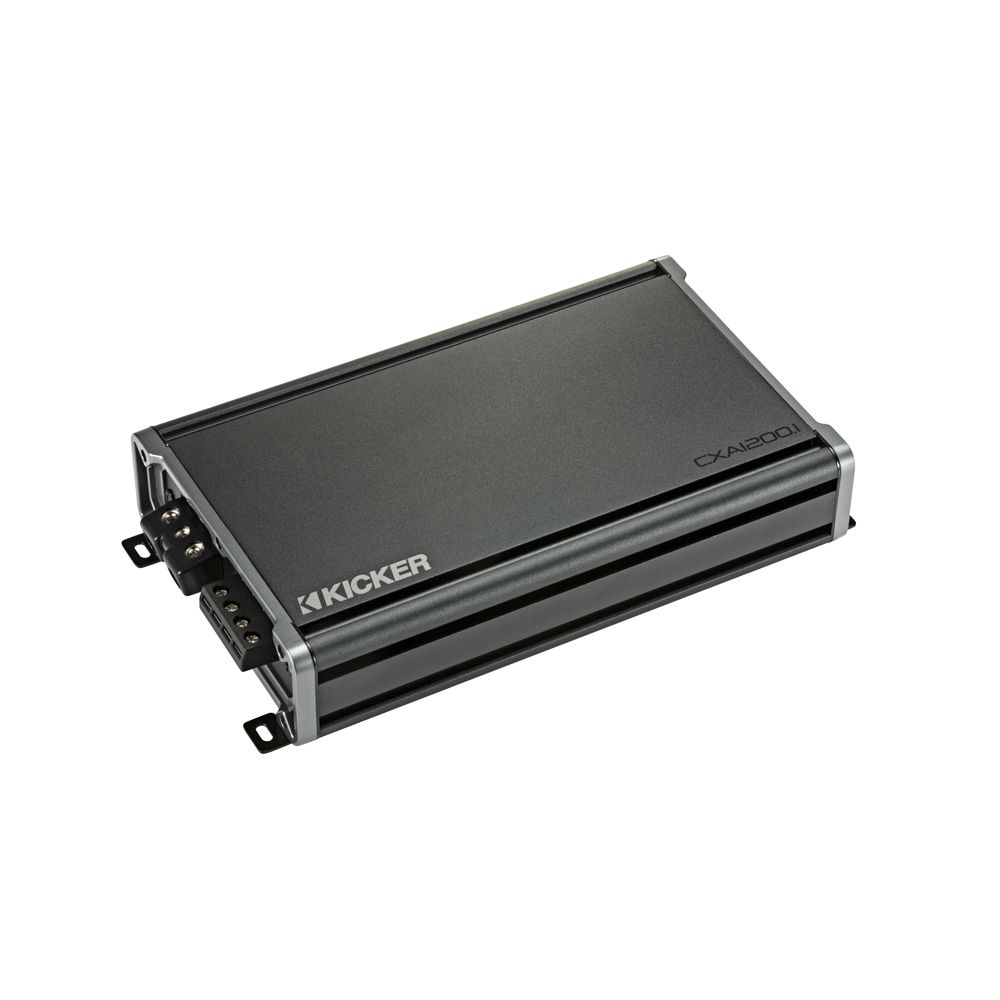

The CXA1200.1 Mono Amplifier is built for affordable power and performance, thanks to an optimized circuit layout and the high-grade internal components.
This mono CX-Series Amp is now one-ohm stable, giving you even more wiring options for your system! Using a Class-D power plant, the CXA1200.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump with a simple turn of the optional CXARC Remote Bass Controller. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection.
CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!
Use the full-range outputs to expand your system with other bass amps, or add a full-range amp to complete your system.
Power spec:
- 1200W x 1 @ 1Ω – 14.4V
- 1200W x 1 @ 2Ω – 14.4V
- 600W x 1 @ 4Ω – 14.4V
Features:
- Efficient Class-D amplifier
- Three-second turn-on/off delay to eliminate unwanted interference
- Variable 12dB crossovers provides control to dial in perfect sound
- KickEQ™ 6dB variable bass boost for those additional low frequencies
- 24dB subsonic filter for protection from potentially damaging frequencies
- FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
- Accepts up to 40-volt input signal
- Small footprint for easier installation
- Compatible with CXARC Remote Bass Control
- Vertical mounting hardware included for another unique look
| RMS Power @ 14.4V | 600W x 1 @ 4Ω 1200W x 1 @ 2Ω 1200W x 1 @ 1Ω |
|---|---|
| Output Channels | 1 |
| Voltage (V) | 12 |
| Class | D |
| Features | One Ohm Stable KickEQ Bass Boost FIT+ Technology |
| Fuse Rating (A) | 100A |
| Cable Gauge (AWG) | 4 |
| Amp Turn-On | DC Offset 12V |
| Frequency Response (Hz) | 25-200 |
| Signal-to-Noise Ratio (dB) | 95 |
| Filter | Low-Pass |
| Controller | CXARC (Sold Separately) |
| Input Channels | 2 |
| Input Type | High Level Low Level |
| Input Sensitivity Low Level | 125mV-5V |
| Input Sensitivity High Level | 250mV-10V |
| Height (cm) | 5.9 |
| Width (cm) | 30.6 |
| Depth (cm) | 17 |
| Colour | Black |
| Brand | Kicker Audio |
| EAN | 713034088493 |
| Box Quantity | 4 |
