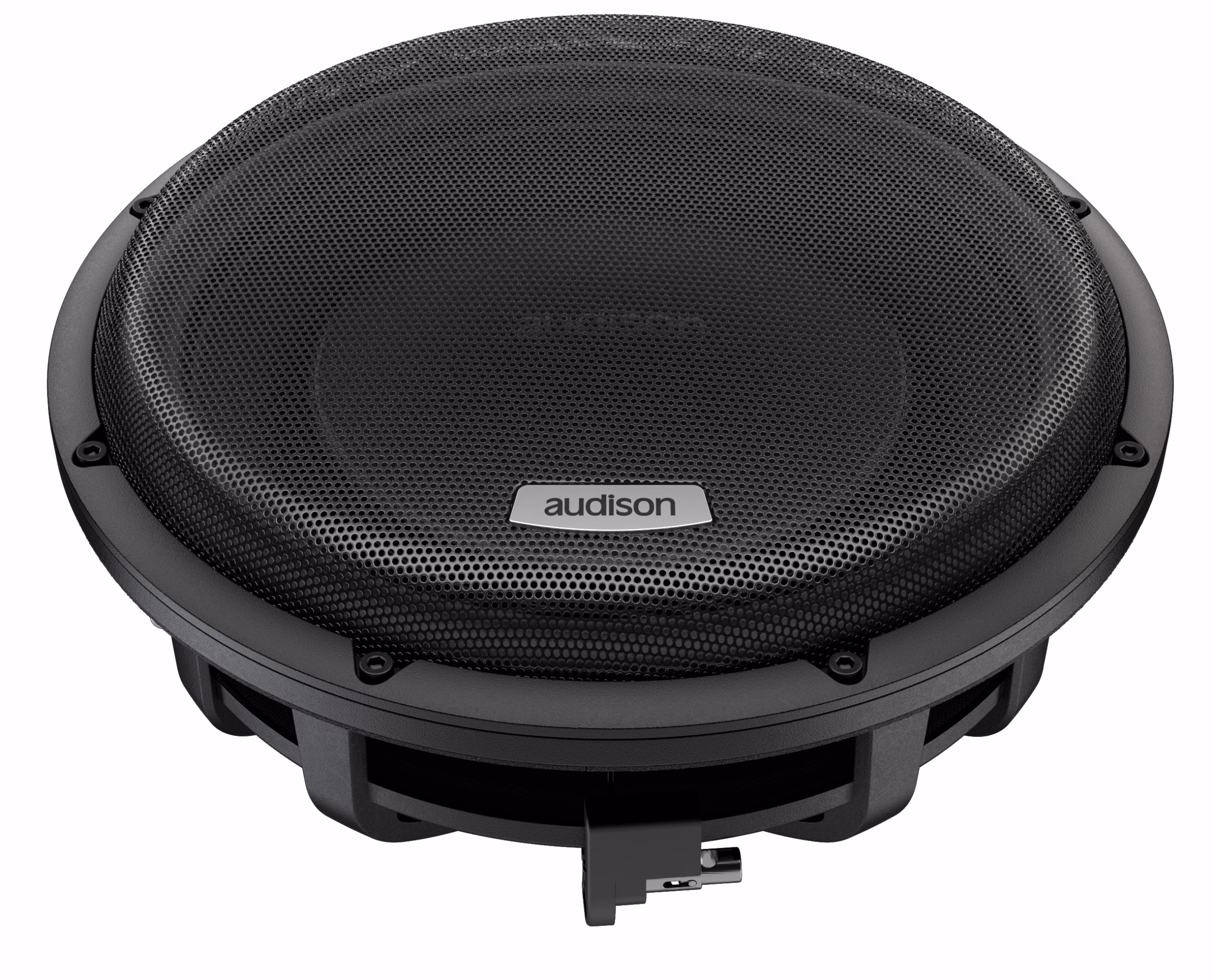

Audison Voce II – AV 12 D2 II Subwoofer Driver | Slim | 300 mm | Grille included
Born from the same engineering philosophy that defines the VOCE II line, the AV 12 D2 II subwoofer delivers deep, powerful and highly controlled bass in a compact sealed enclosure.Equipped with a 1.5-inch CCAW voice coil and a 550 W RMS-rated motor structure, it combines dynamic power with thermal stability, ensuring consistent performance even at high sound pressure levels. The die-cast aluminum basket integrates dual cable-routing hooks for clean installation, while the spring-loaded terminals support 8 AWG cables and fast connections.The FEM-optimized dust cap increases rigidity and damping, perfectly matching the refined design language of the VOCE II range. Engineered to perform at its best in 12–14 L sealed boxes, the AV 12 D2 II is ideal for space-limited setups where sound quality is never a compromise.With its dual 2-ohm configuration, it offers maximum system flexibility and seamless integration into high-end audio systems. Precision, power and elegance, this is how VOCE II speaks the language of low frequencies.
Technical Specs
| Nominal diameter |
300 mm (12 in) |
| Impedance |
2+2 Ohm |
| Power Handling – Peak |
1100 W |
| Power Handling – Continuous |
550 W |
| Sensitivity |
85 dB |
| Frequency Response |
25 – 400 Hz |
| Voice Coil Ø |
38.6 mm (1.5 in) |
| Chassis Material |
ALUMINIUM |
| Magnet Material |
HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h |
156*60*34 mm (6.14*2.36*1.34 in) |
| Voice Coil Material |
CCAW |
| Former Material |
GLASS FIBER |
| Cone Material |
POLYPROPYLENE |
| Surround Material |
|
| Xmax |
16.8 mm (0.66 in) |
| Xmech |
20 mm (0.79 in) |
| Voice Coil Winding Height |
37 mm (1.46 in) |
| Gap Height |
7 mm (0.28 in) |
| Driver Displacement Volume |
0.9 l (0.032 ft) |
| Recommended Enclosure |
27.1 l (0.957 ft) |
| Recommended Tuning |
26.5 Hz |
Electric-acoustic Specs
| D |
539 cm² (83.545 in²) |
| Re |
3.3 Ohm |
| Fs |
23 Hz |
| Le |
4.3 mH |
| Vas |
63 l (2.225 ft) |
| Mms |
326 g (11.499 oz) |
| Cms |
0.15 mm/N |
| BL |
17.4 T•m |
| Qts |
0.5 |
| Qes |
0.5 |
| Qms |
6.7 |
| Reference Efficiency |
85 |
Dimensions
 |
| Dimension A |
318.3 mm (12.53 in) |
| Dimension B |
282.9 mm (11.14 in) |
| Dimension C |
102.5 mm (4.04 in) |
| Dimension D |
88 mm (3.46 in) |
| Dimension E |
292.3 mm |
| Dimension F |
42.6 |
| Dimension C1 |
109 mm |
| Dimension C2 |
136.7 mm |
| Dimension D1 |
14.5 mm |
| Hole diameter |
5.5 mm |
