Audison Voce II – AV 10 D2 II Subwoofer Driver | Slim | 250 mm | Grille included

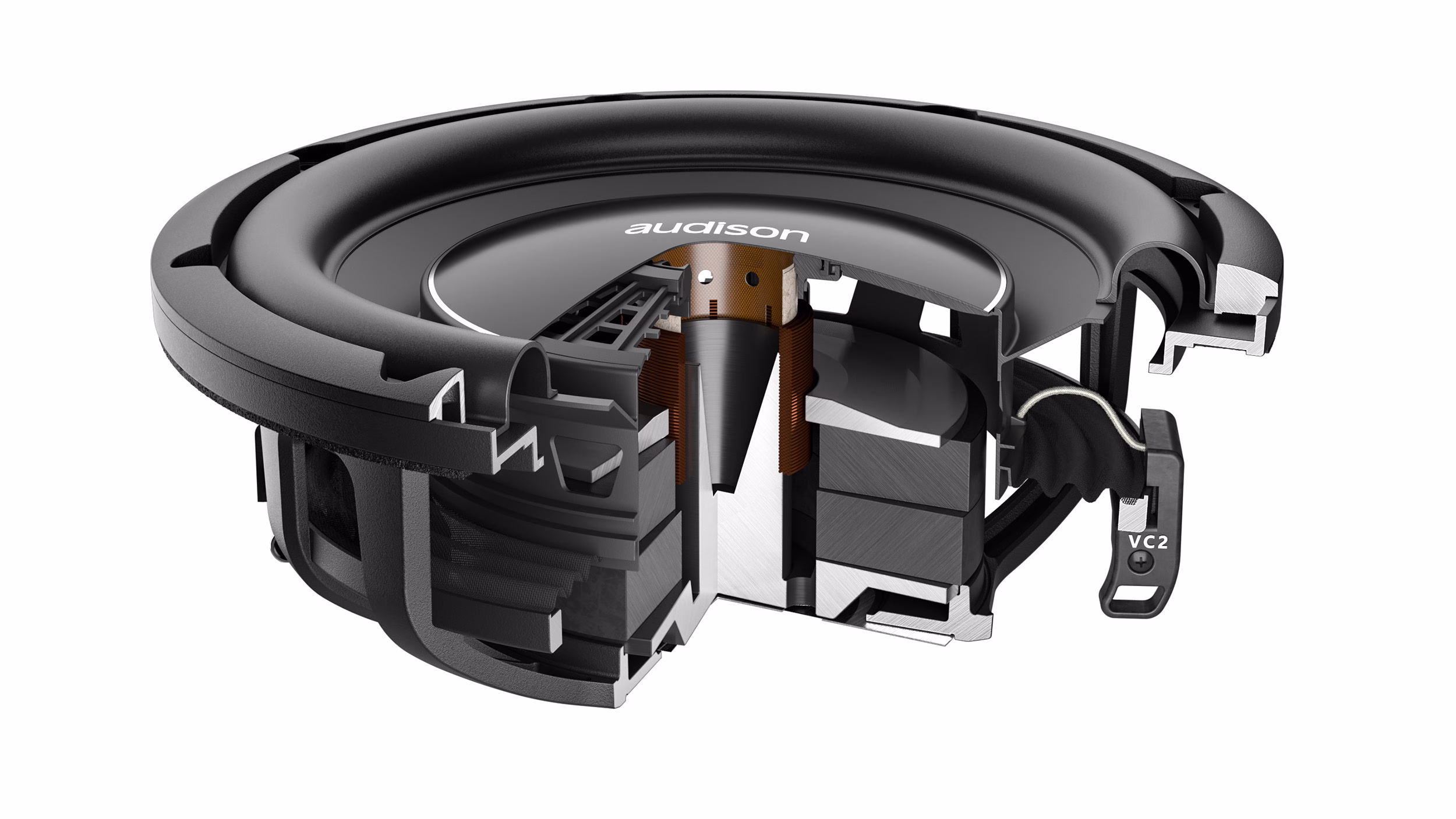

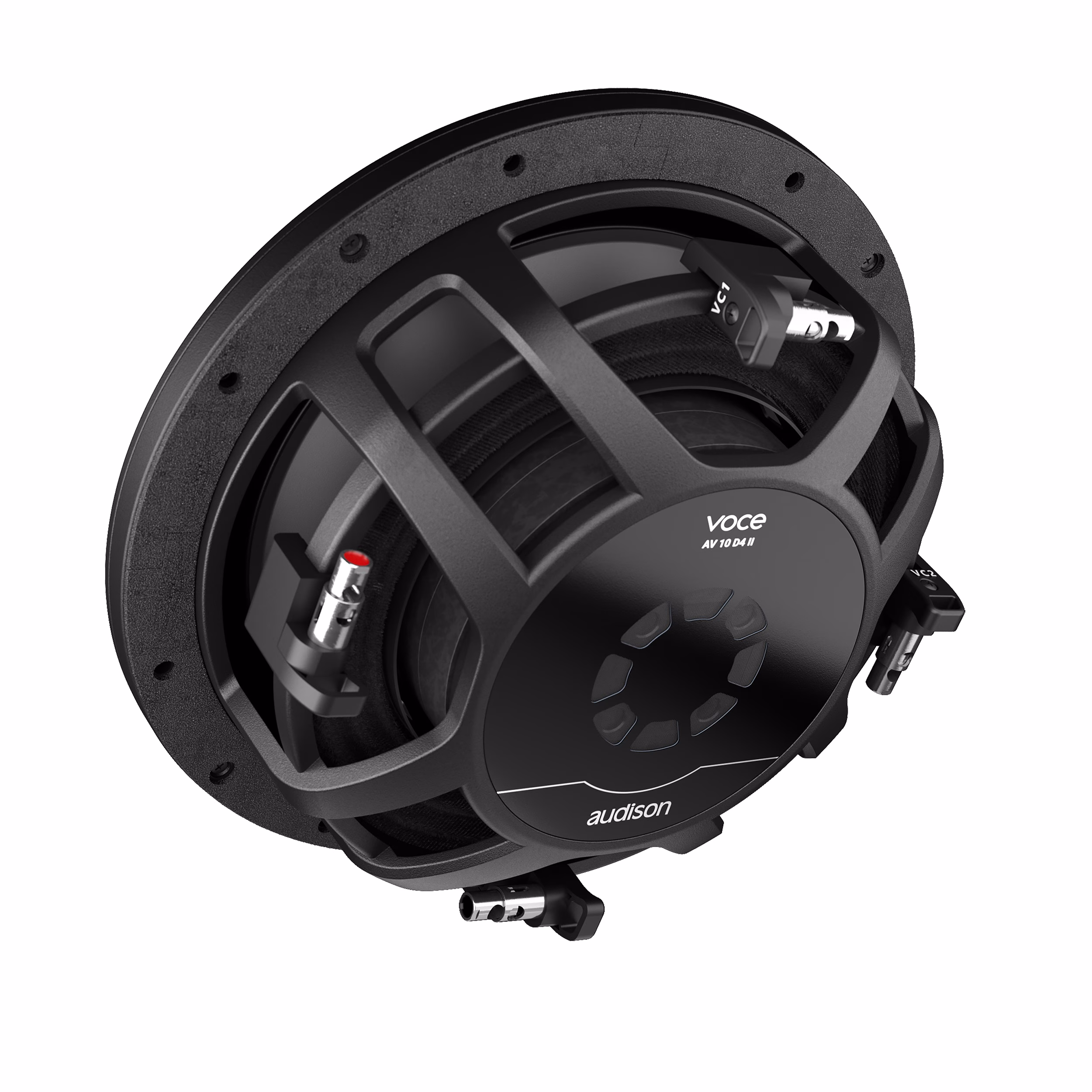

AV 10 D2 IISubwoofer Driver | 250 mm | Grille included Designed for tight spaces and dynamic performance, the AV 10 D2 II delivers powerful, articulate low frequencies with the precision and control that define the VOCE II line.Its dual 2-ohm voice coil configuration provides greater flexibility for low-impedance system design, allowing optimal power transfer from high-performance amplifiers. The subwoofer features a 1.5-inch CCAW voice coil, FEM-optimized motor assembly and a die-cast aluminum basket with integrated cable-routing hooks—each detail engineered to ensure stability, thermal efficiency and long-term reliability.The extended-profile dust cap improves cone rigidity and damping, while the internal Radial Reinforcement Framework strengthens the mechanical structure during high-excursion operation. Airflow Venting Cooling technology ensures effective heat dissipation, preserving performance even under prolonged stress.Optimized to perform at its best in compact sealed enclosures (12–14 L / 0.4–0.5 ft³), the AV 10 D2 II delivers deep, clean and fast bass, ideal for systems where space is limited but sonic expectations are high. It is more than a compact subwoofer, it is a VOCE II-class component built to bring the emotion of music into every detail of your sound system.
Technical Specs
| Nominal diameter |
250 mm (10 in) |
| Impedance |
2+2 Ohm |
| Power Handling – Peak |
1100 W |
| Power Handling – Continuous |
550 W |
| Sensitivity |
83.5 dB |
| Frequency Response |
25 – 400 Hz |
| Voice Coil Ø |
38.6 mm (1.5 in) |
| Chassis Material |
ALUMINIUM |
| Magnet Material |
HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h |
134*57*36 mm (5,28*2,27*1.41 in) |
| Voice Coil Material |
CCAW |
| Former Material |
GLASS FIBER |
| Cone Material |
POLYPROPYLENE |
| Surround Material |
|
| Xmax |
16.8 mm (0.66 in) |
| Xmech |
20 mm (0.79 in) |
| Voice Coil Winding Height |
37 mm (1.46 in) |
| Gap Height |
7 mm (0.28 in) |
| Recommended Enclosure |
13.2 l (0.466 ft) |
| Recommended Tuning |
51 Hz |
| Note |
The data below are specified with the VCs connected in series (2+2). |
Electric-acoustic Specs
| D |
368 cm² (57.04 in²) |
| Re |
3.25 Ohm |
| Fs |
35 Hz |
| Le |
4.1 mH |
| Vas |
15.16 l (0.535 ft) |
| Mms |
264 g (9.312 oz) |
| Cms |
0.079 mm/N |
| BL |
16.2 T•m |
| Qts |
0.63 |
| Qes |
0.7 |
| Qms |
5.5 |
| Reference Efficiency |
83.5 |
Dimensions
 |
| Dimension A |
274.5 mm (10.81 in) |
| Dimension B |
232 mm (9.13 in) |
| Dimension C |
97 mm (3.82 in) |
| Dimension D |
82.6 mm (3.25 in) |
| Dimension E |
245 mm |
| Dimension F |
40 |
| Dimension C1 |
103 mm |
| Dimension C2 |
128.5 mm |
| Dimension D1 |
14.5 mm |
