Description
This Kit Consists Of:
- Brake Light Parking Camera Kit
- 4.3″ Dash Mount Monitor Screen
Compatible With The Following Vans (With the factory fitted rear roof brake light):
- Renault Traffic (2014 Onwards)
- Vauxhall Vivaro (2014 Onwards)
Brake Light Camera Features:

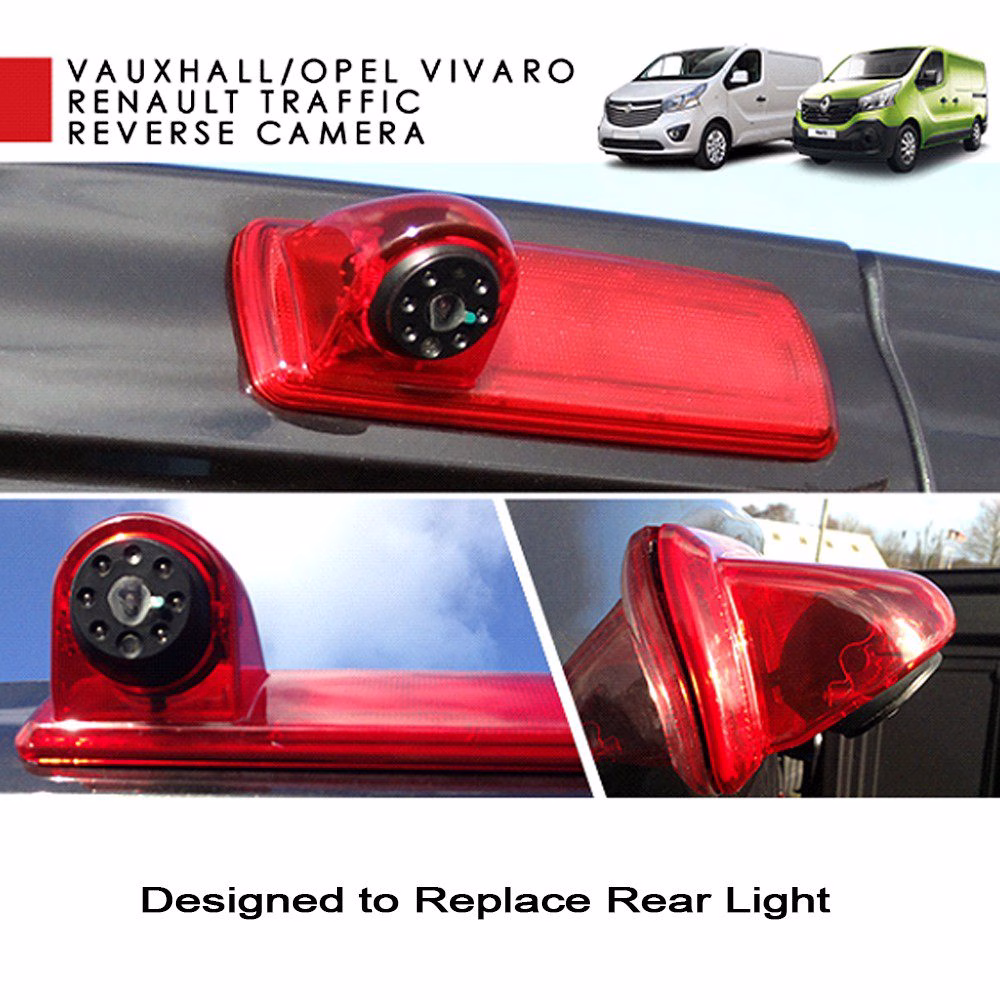

Complete outer lens brake light with integrated reverse camera. Simply unscrew original outer brake light housing and replace with this combined unit
Key Features:
Key Features:
- OE fitting
- Night Vision
- PAL
- Waterproof
Technical Specifications:
- Sensor: 1/4 SHARP CCD
- Resolution: 420
- View Angle: 170°
- 6 Built-in Night Vison IR LEDs
- Connection 4 Pin DIN
- Power: 12V
- Waterproof IP68 rating
4.3″ Monitor Features
- 4.3″ Digital TFT LCD monitor
- Resolution: 480×272
- Dimensions: 12.5cm (length) x 7.7cm (height) x 1.5cm (width)
- Power supply: DC 12V
- Display mode: 16:9
- 2 video input
- Working temperature: -20 ~+70 degrees
- Import signal CVBS 1V Vpp
- Displays the optical image from the rear view camera
- Monitor settings: brightness, contrast, saturation, tine, screen mode, 7 languages
What’s included?
- 1 x 4.3inch Monitor
- 1 x 2-video input cable
- 1 x power cable
