Description
Brake Light Reversing Camera with Reverse Camera Input Interface
Suitable for:
- Citroen Relay (2014) With Factory Navigation Screen
This package allows you to add an OEM look LED Brake Light Reversing Camera to the factory navigation screen in your Citroen Relay.
- Auto switching Back up Camera Input
- Plug & Play Interface
- Auto-switching when reverse in selected
- Works for cars with or without park assist
- No programming required

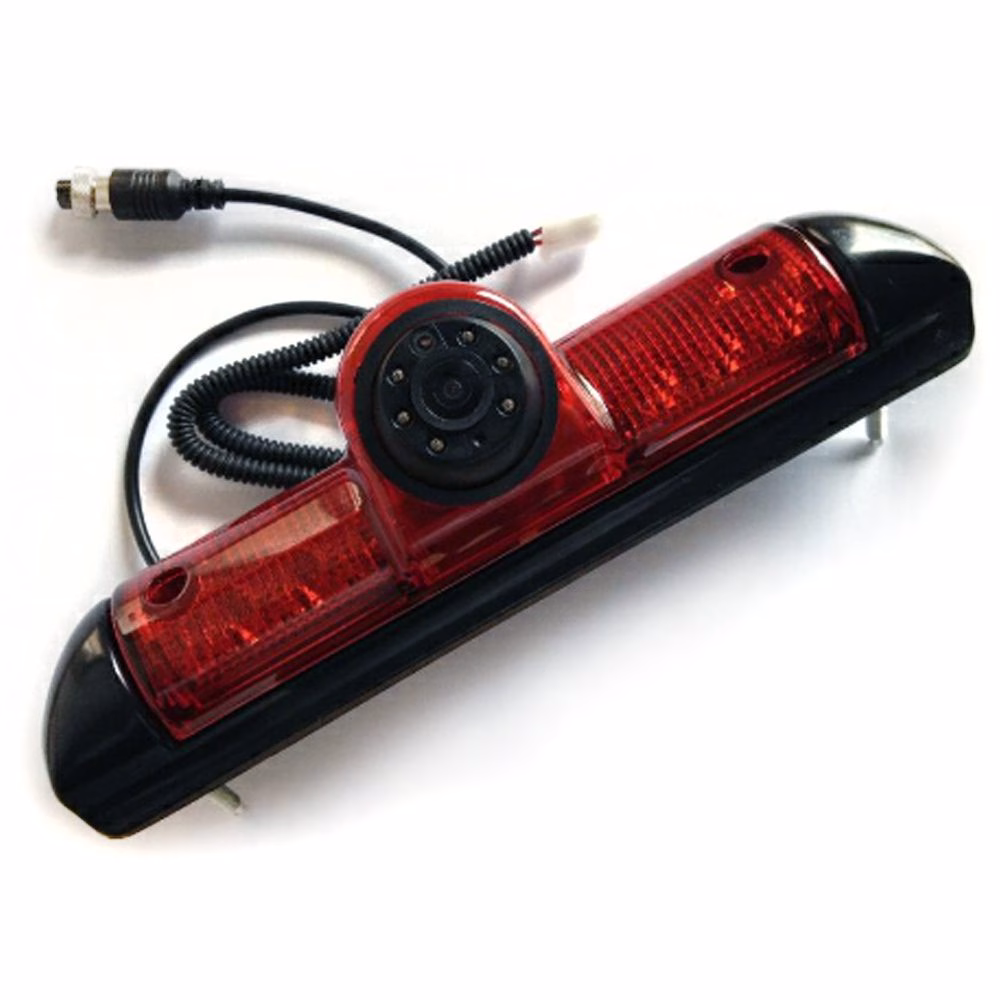

LED Brake Light Camera Details:
- All new design OE style fit replacement brake light Rear view camera.

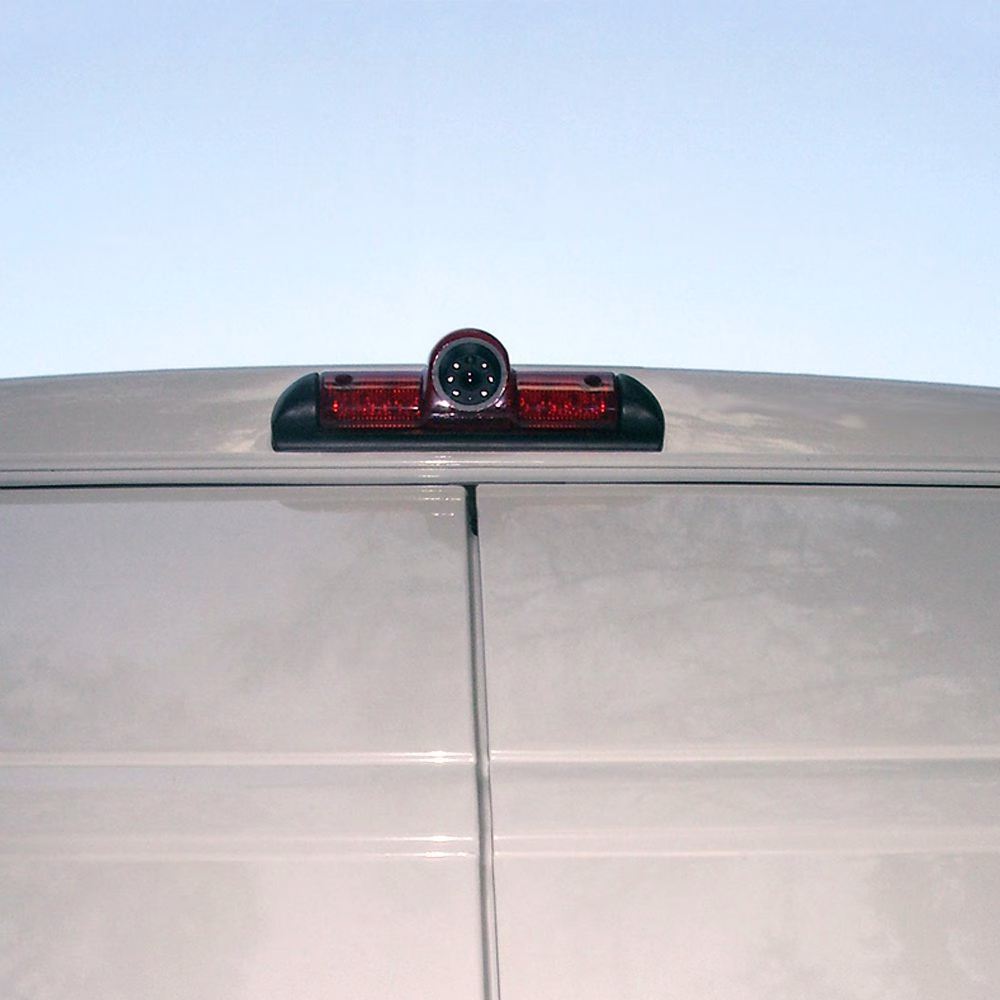

- Designed to fit Citroen Relay vans that have the factory fitted rear roof brake light
- Complete outer lens brake light with integrated reverse camera. Simply unscrew original outer brake light housing and replace with this combined unit
Key Features:
- OE Style fitting
- Super CMOS
- Night Vision
- NTSC
- Waterproof
Technical Specifications:
- Current Consumption: MAX:150mA
- Sensor: Super CMOS
- Resolution (TV LINES): 580
- Effective Pixels: 762*504
- Minimum Illumination: 0.1 Lux, 0 Lux with IR night vision
- View Angle: 170 Degrees
- TV Systems: NTSC, Colourful
- Video Output: Colourful video out: 1. 0Vp-p 75 (ohm) load
- Built in Microphone
- Parking Line Option On/Off Support
- Working Voltage: DC9-16V
- LED Brake Light: DC9-16V
- Waterproof: IP67-IP68
- Operating Temperature: -30c to +70c
