Description

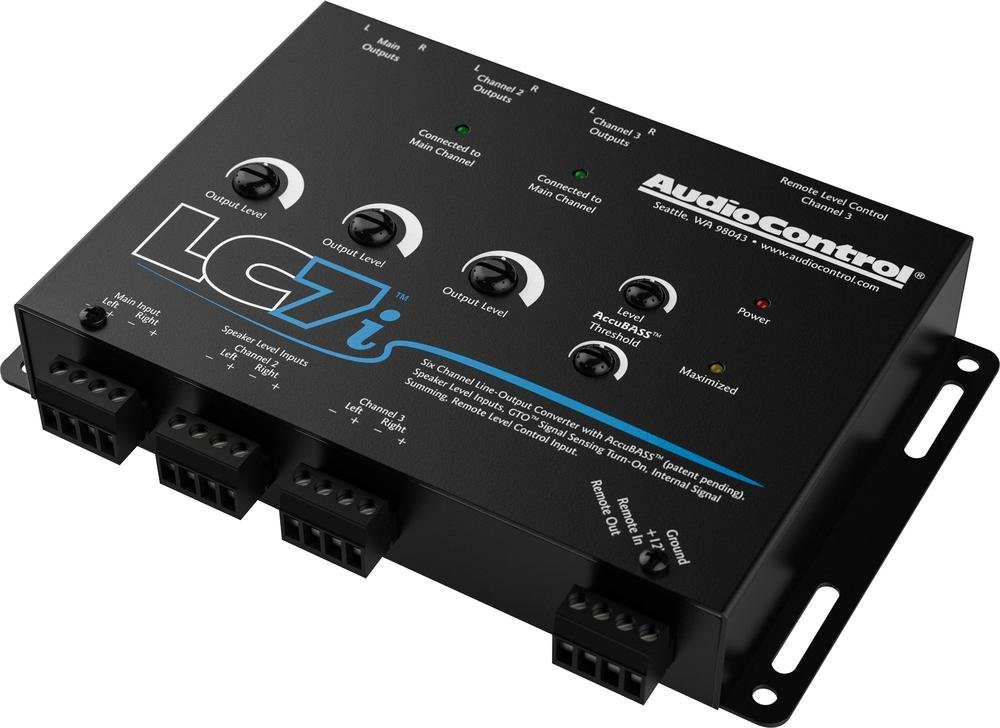

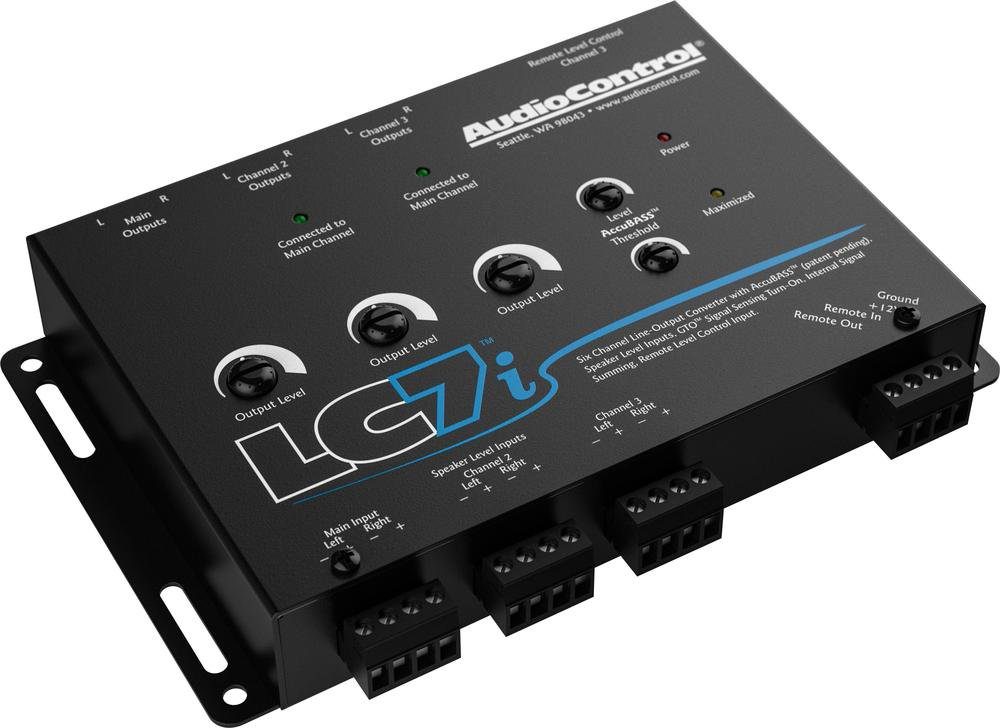

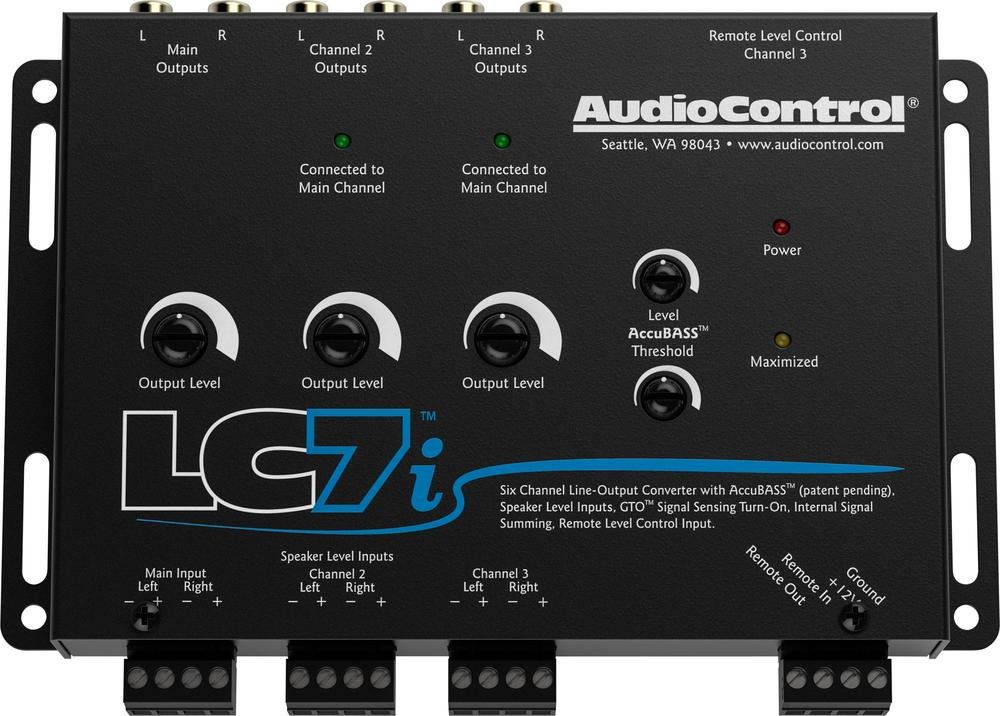

AudioControl LC7i – 6 Channel Line Output Converter with ACCU Bass
The AudioControl LC7i is 6 channel active line converter that allows all music lovers who want a great in-car audio experience to keep their factory installed source unit and dramatically improve their system performance. The LC7i delivers amazing sound quality and fixes one of the biggest letdowns of today’s factory systems, weak BASS!
Technical Specification
- Inputs
- Speaker Level Inputs: 3 (6 channels)
- Maximum Input (speaker level): 400W per channel at 4 Ohm
- Input Impedance: 20k Ohm
- Outputs
- Preamp Outputs: 3 (6 channels)
- Maximum Output Level: 8.5Vrms
- Output Gain: ±12dB
- Output Impedance: 150 Ohm
- Performance
- Total Harmonic Distortion: 0.01%
- Frequency Response: 10Hz-22kHz
- Control
- Remote In
- 12VDC Remote Out (always active when unit is on)
- general
- Power Supply: High Headroom PWM Switching
- Current Draw: 350mA
- Recommended Fuse Rating: 2A
- weights & dimensions
- Dimensions: 7.5″W x 4.72″D x 1.22″H
- Weight: 3.0lbs (1.4kg)
