Description

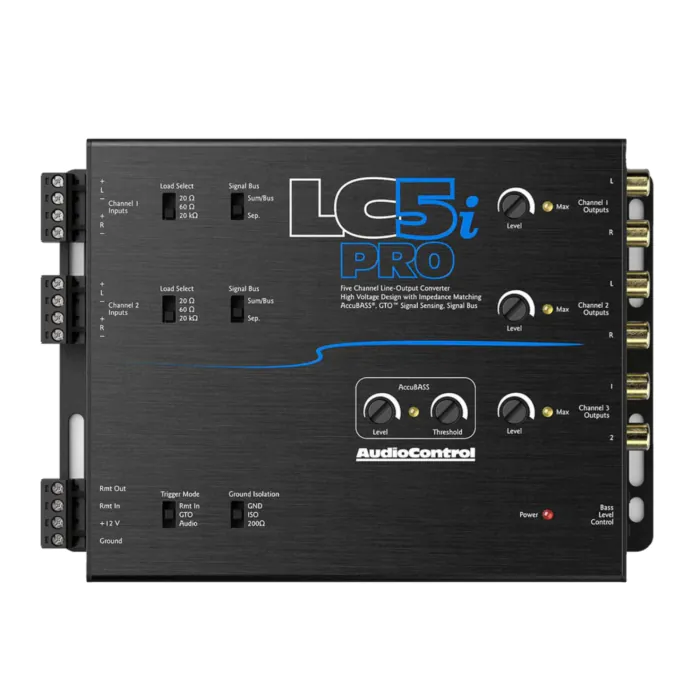

AudioControl LC5i PRO – 5 Channel Line Output Converter With AccuBass
Upgrade your car audio system with the AudioControl Five Channel Output Converter with Accubass. This converter delivers crystal-clear sound quality with four channels of active speaker-level inputs and up to 40V input handling. Customize your sound with variable outputs and discrete-level controls while the AccuBASS® processing corrects bass roll-off for an optimal listening experience. Additional features like internal channel summing, load selection switch, GTO signal sensing, audio sense turn-on, and ground isolation switch ensure superior performance and reliability. Transform your driving experience today!
Features
- Four channels of active speaker-level inputs (up to 40V input handling)
- Fixed and variable outputs with discrete-level controls
- AccuBASS® processing for correction of bass roll-off
- Load Selection Switch
- GTOTM Signal Sensing
- Ground Isolation Switch
- ACR-1 dash remote included
- Compact design
Specifications Inputs
- Speaker Level Input: 1 (4 channels)
- Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
- Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
Outputs
- Preamp Outputs: 5 (4 channels main, 1 channels bass)
- Maximum Output Level: 9.5Vrms/13V peak
- Output Gain: +/- 15 dB
- Output Impedance: 150Ω
Performance
- Total Harmonic Distortion: 0.01%
- Signal to Noise: >124 dB
- Frequency Response: 20 Hz – 20 kHz
Control
- Remote In / GTO™ Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)
General
- Current Draw: 330 mA
- Recommended Fuse Rating: 2 A
Weights & Dimensions
- Dimensions: 7″L x 5.1″D x 1.14″H (including speaker connectors)
- Weight: 1.1 lbs.
In The Box
- LC5i PRO
- ACR-1
- 20′ Phone Cable
- Speaker and Power connectors
- Manual, Warranty
