Description

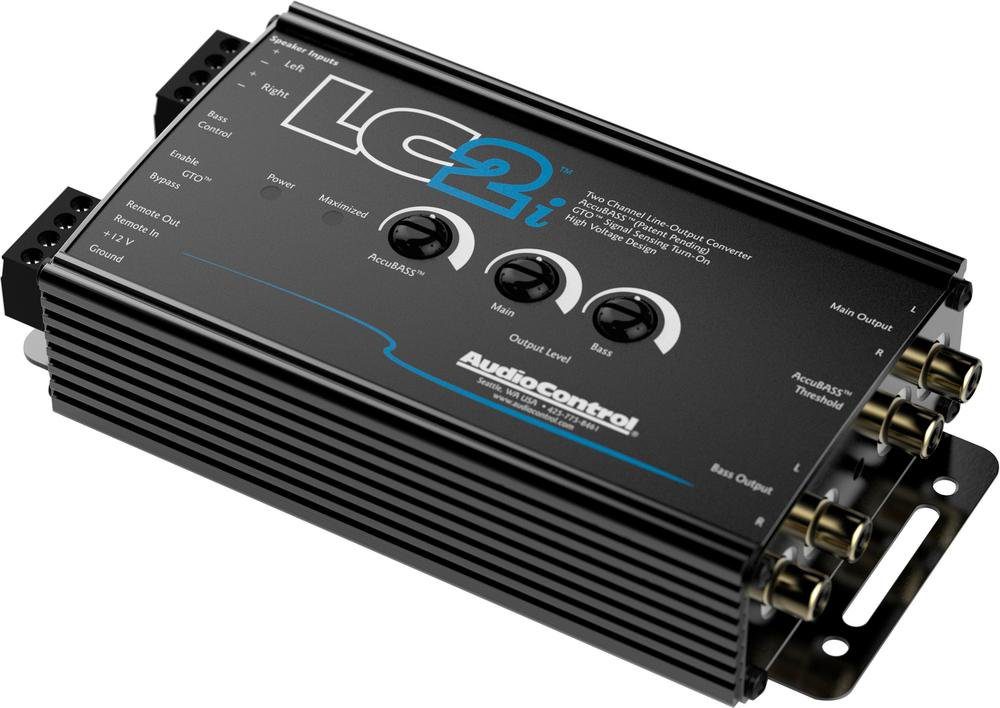

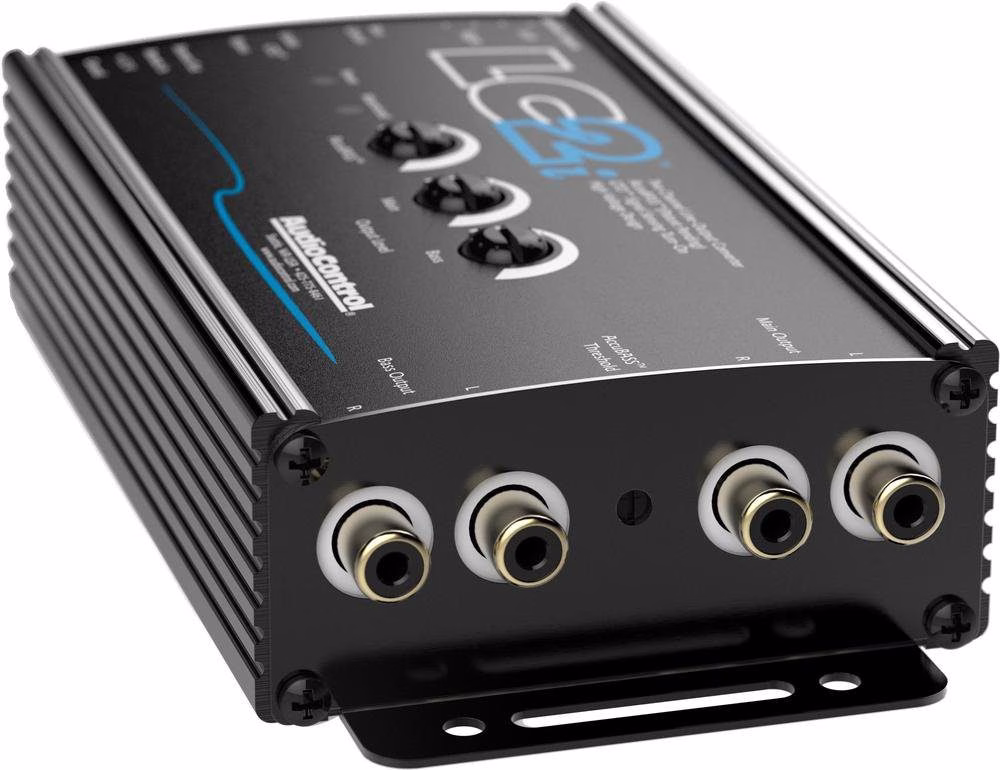

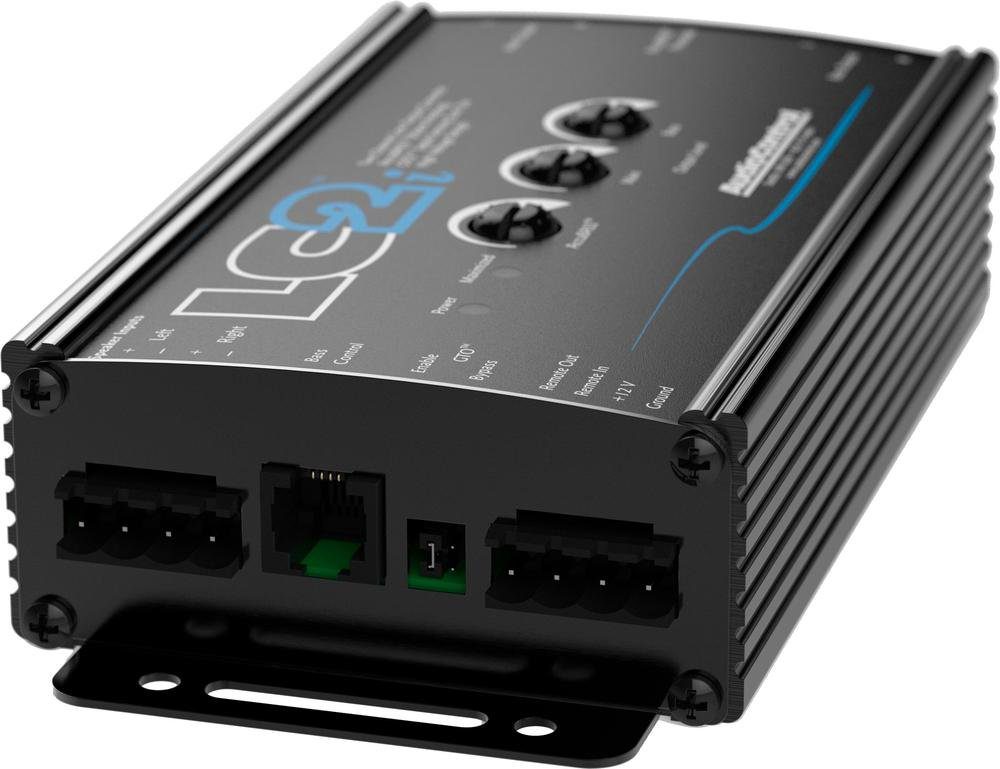

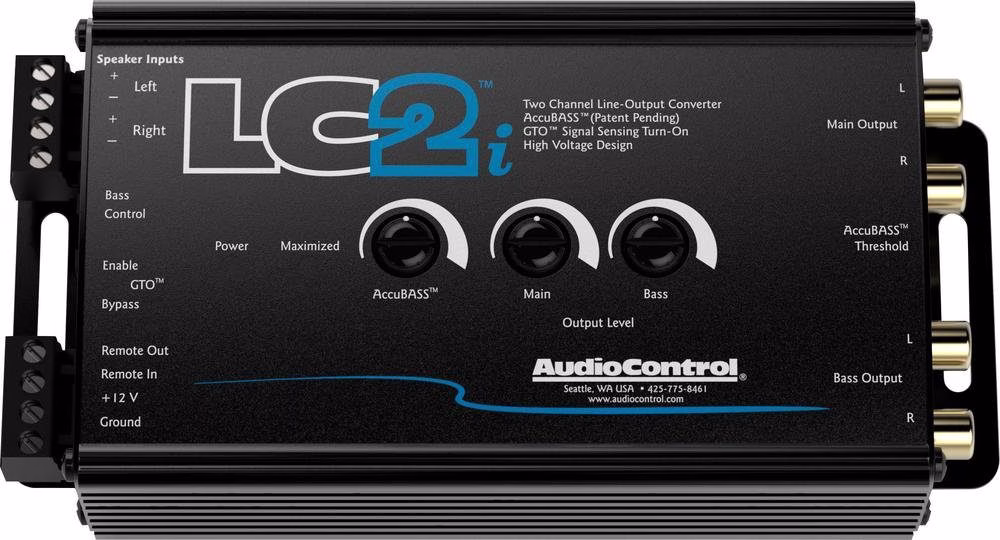

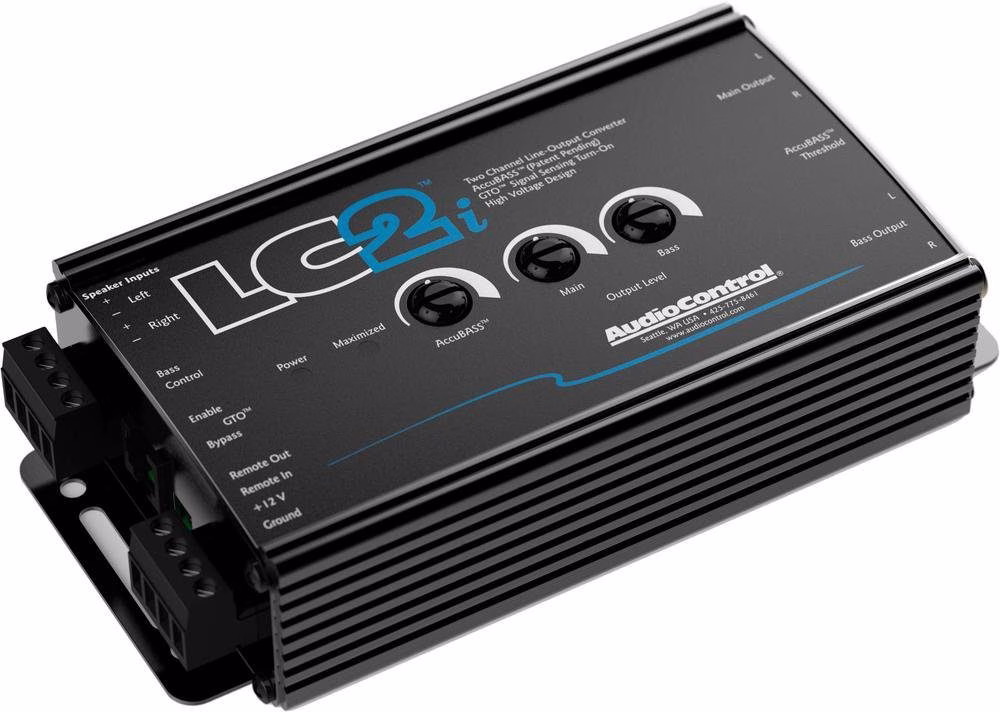

AudioControl LC2i
2 Channel Line Output Converter Including AccBass Processor
The AudioControl LC2i is a compact 2 channel processor with built in active input circuitry which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to after-market processors or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.
Technical Specification
- Inputs
- Speaker Level Input: 1 (2 channels)
- Maximum Speaker Level Input: 400W per channel at 4Ohm
- Input Impedance: 20k Ohm
- Outputs
Preamp Outputs: 2 (2 channels main, 2 channels bass)
Maximum Output Level: 9.5Vrms/13V peak
Output Impedance: 150 Ohm - Performance
Total Harmonic Distortion: 0.01%
Signal to Noise: >110dB
Frequency Response: 10Hz-100kHz ±1 dB - Control
Remote In
12VDC Remote Out (always active when unit is on) - General
Current Draw: 150mA
Recommended Fuse Rating: 1A
weights & dimensions
Dimensions: 5.4″L x 3.25″D x 1.5″H (6.5″L including mounting brackets)
Weight: 1.0lbs (0.5kg)
