Description

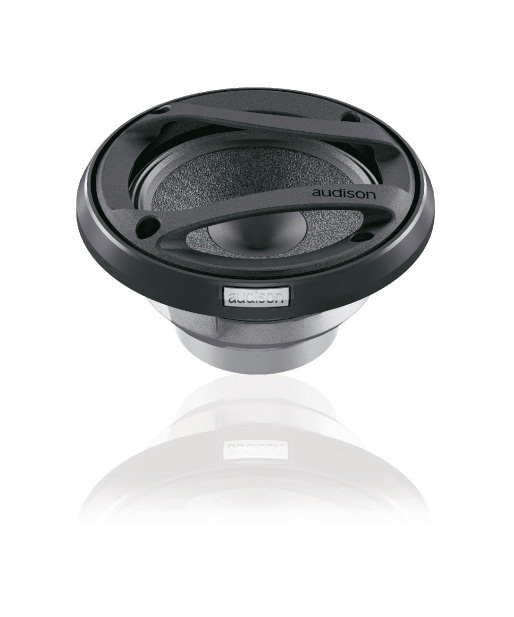

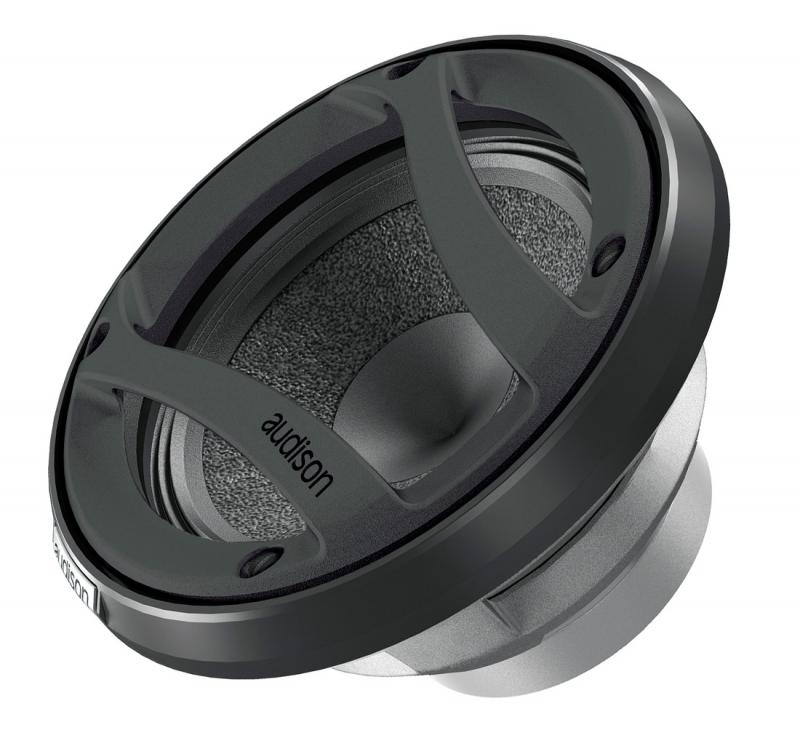

Audison VOCE AV 3.0 Mid Range | 100 W Peak Power | 70 mm | 4 ohm
The core of the AV 3.0 midrange is a powerful Neodymium magnetic group: efficiency and linearity make it an irreplaceable component to achieve a fine yet dynamic mid range, while its compact size allows versatile and high-performance installations. Grille included.
Technical Specs
| Nominal diameter |
70 mm (3 in) |
| Impedance |
4 Ohm |
| Power Handling – Peak |
100 W |
| Power Handling – Continuous |
50 W |
| Sensitivity |
93 dB |
| Frequency Response |
200 ÷ 14k Hz |
| Voice Coil Ø |
20 mm (0.75 in) |
| Magnet Material |
NEODYMIUM |
| Magnet size D x d x h |
45 x 25 x 4 mm |
| Voice Coil Material |
CCAP – COPPER CLAD ALUMINIUM RIBBON |
| Xmax |
2 mm (0.08 in) |
Electric-acoustic Specs
| Re |
3 Ohm |
| Fs |
160 Hz |
| Le |
0.12 mH |
| Vas |
0.4 l (0.014 ft) |
| Mms |
4.4 g (0.155 oz) |
| Cms |
0.24 mm/N |
| BL |
4.1 T•m |
| Qts |
0.64 |
| Qes |
0,74 |
| Qms |
4.7 |
Dimensions
| Dimension A |
88 mm (3.46 in) |
| Dimension B |
73 mm (2.87 in) |
| Dimension C |
41 mm (1.61 in) |
| Dimension D |
38 mm (1.5 in) |
| Dimension E |
80 mm |
| Dimension G |
18.5 mm |
| Dimension H |
102 mm |
