Hertz ML Power 5 – 5 Channel Stereo Digital Amplifier 950W RMS

Description

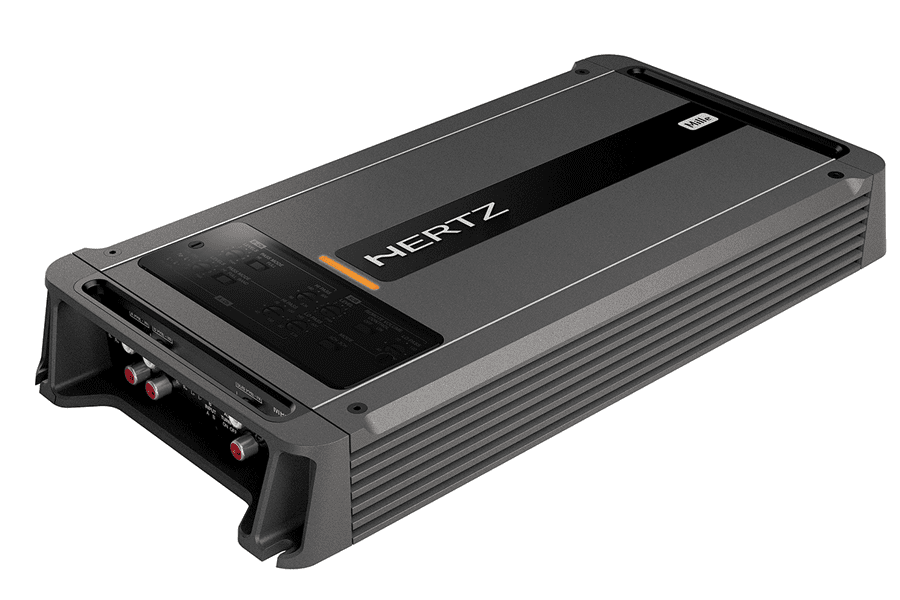

Hertz ML Power 5 – 5 Channel Stereo Digital Amplifier 950W RMS

Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency. The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 Ω) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.

Specifications

Channel Mode: 5-3
Output Power (RMS @ 14vDC)
5 Ch 70 W x 4 + 380 W x 1 (4Ohm)
5 Ch 100 W x 4 + 550 W x 1 (2Ohm)
3 Ch 200 W x 2 (4Ohm) + 380 W x 1 (4Ohm)
3 Ch 200 W x 2 (4Ohm) + 550 W x 1 (2Ohm)

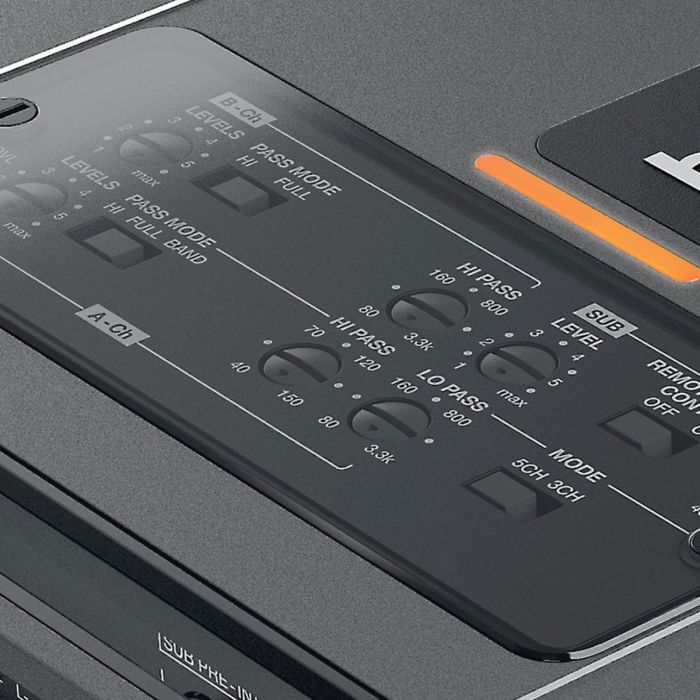

Filters
Hi-Pass: A Ch: 40 – 150 Hz @ 12 dB/Oct. – B Ch: 80 – 3.3k Hz @ 12 dB/Oct.
Lo-Pass: C Ch: 40 – 500 Hz @ 24 dB/Oct.
Band Pass: A Ch: 40 – 150 Hz @ 12 dB/Oct. – 80 – 3.3k Hz (LO) @ 12 dB/Oct.
Distortion – THD
(100Hz @ 4Ohm): 0.08%
Signal to Noise Ratio
(A weighted @ 1v): 100dB A&B Ch – 106dB C Ch
Damping factor
(100Hz @ 4Ohm): 50 A&B Ch – 90 C Ch
Size W x D x H
170 x 349 x 46.70mm (6.69′ x 13.74′ x 1.84′)
