BMW Premium Car Audio Upgrade with Audison Forza Amplifier, Subwoofers, Front and Rear Speakers and wiring kit
This package includes upgrading Front Speakers with a set of Audison Prima Component Speaker kit (Consist of Midrange and Tweeters), replacing the underseat subwoofers with Audison APBMW S84 and also replacing the rear speakers with a pair of Audison Prima co-axial 2 way speakers. In this package you will also receive the top of the line 8 channel Audison Forza AP F8.9 bit amplifier which will power the whole sound system in the car including all the front component speakers, underseat subwoofers and also the rear coaxial speakers. This will give you overall very good sound quality with more volume, clarity and quality Midrange and treble with clear loud thumping bass.
–
The package consists of:
- 1 x Forza DSP Bit Amplifier 8 Channel Amp
- 1 x APB BMWK4 – Component Kit for Front Doors
- 1 x APB BMW X4 – 2 way coaxial speaker for Rear Doors
- 2 x BMWS8 – underseat Subwoofer
- 1 x Wiring Kit
Suitable For The Following Vehicles:
- BMW 1 Series (E81/82/87/88)(F20/F21)
- BMW 3 Series (E90/91/92/93)(F30/F31/F34/F35/F80)
- BMW X1 (E84/F48)
- BMW 2 Series (F22/F23/F45/F46/F87)
- BMW 4 Series (F32/F33/F36/F82/F83)
- BMW 5 Series (E60/E61/F07/F10/F11)
- BMW 6 Series (E63/E64/F06/F12/F13)
- BMW 7 Series (E65/E66/F01/F02/F03/F04)
- BMW X3 (E83/F25)
- BMW X4 (F26)
- BMW X5 (E53/E70/F15/F85)
- BMW X6 (E71/F16/F86)
May require some modifications to complete the installation
* AUDIO INPUT INTO THE AMPLIFIER IS DONE USING HIGH LEVEL SPEAKERS INPUT
Audison Forza AF C8.14 Bit Amplifier 8 Channel Amp And 14 Channel DSP 800w RMS
AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING
- Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
- Next-generation bit Drive software platform
- Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
- Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
- Up to 14 output channels (8 amplified, 6 optional pre-outs) controlled by the DSP to expand the system with other amplifiers
- 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
- Extension card slot (additional 4 analog or 1 digital inputs)
- Electrical signal analysis for each input channel ensures proper integration and correction
- Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
- Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard
Power Output RMS
- 4 Ohm 85 W x 8 260 W x 4
- 2 Ohm 130 W x 8

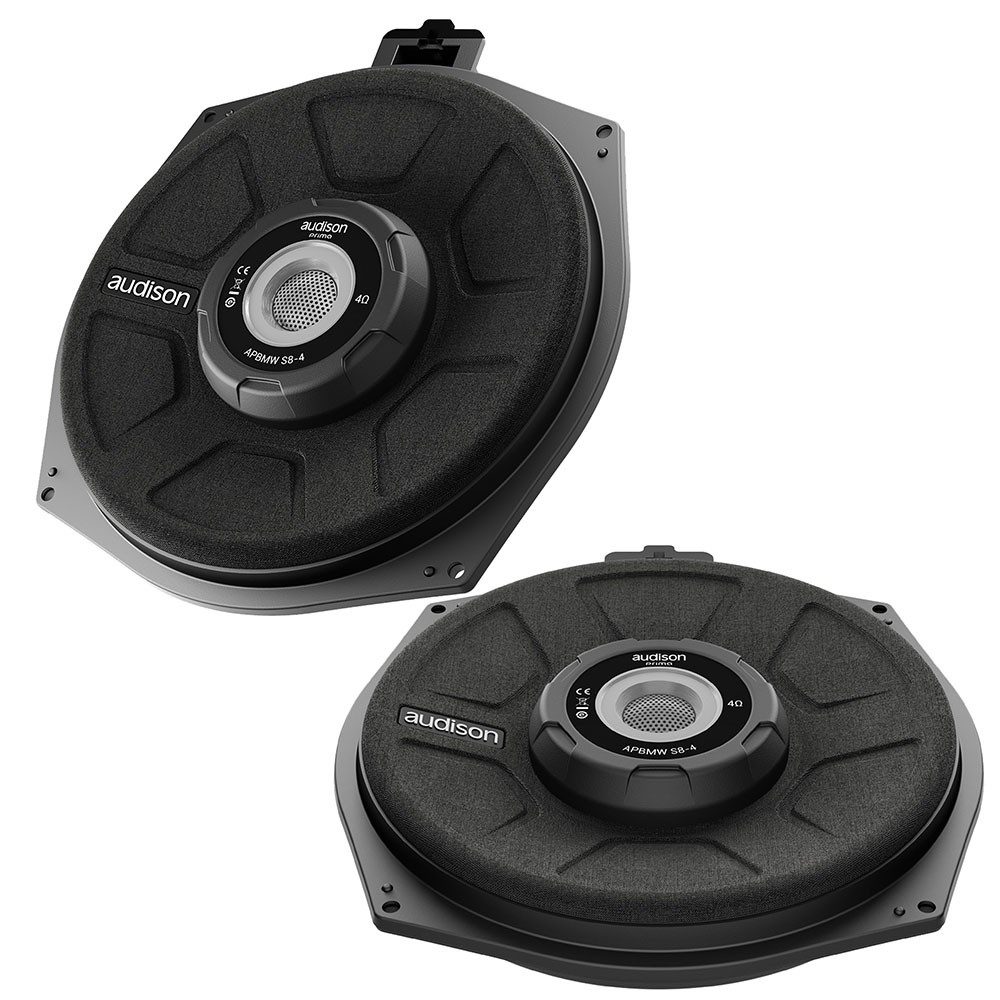

Technical Specifications of Subwoofer (APBMW S8)
- Size mm (in.): 200 (8)
- Power Handling: 300 W peak, 150W continuous
- Frequency Response Hz: 40 – 500
- Magnet size D x d x h mm (in.):
- 48 (1.89) x 18 (0.71) x 7 (0.28)
- Weight of one speaker kg (lb.): 1.21 (2.67)
- Voice Coil Ø mm (in.): 50 (2)

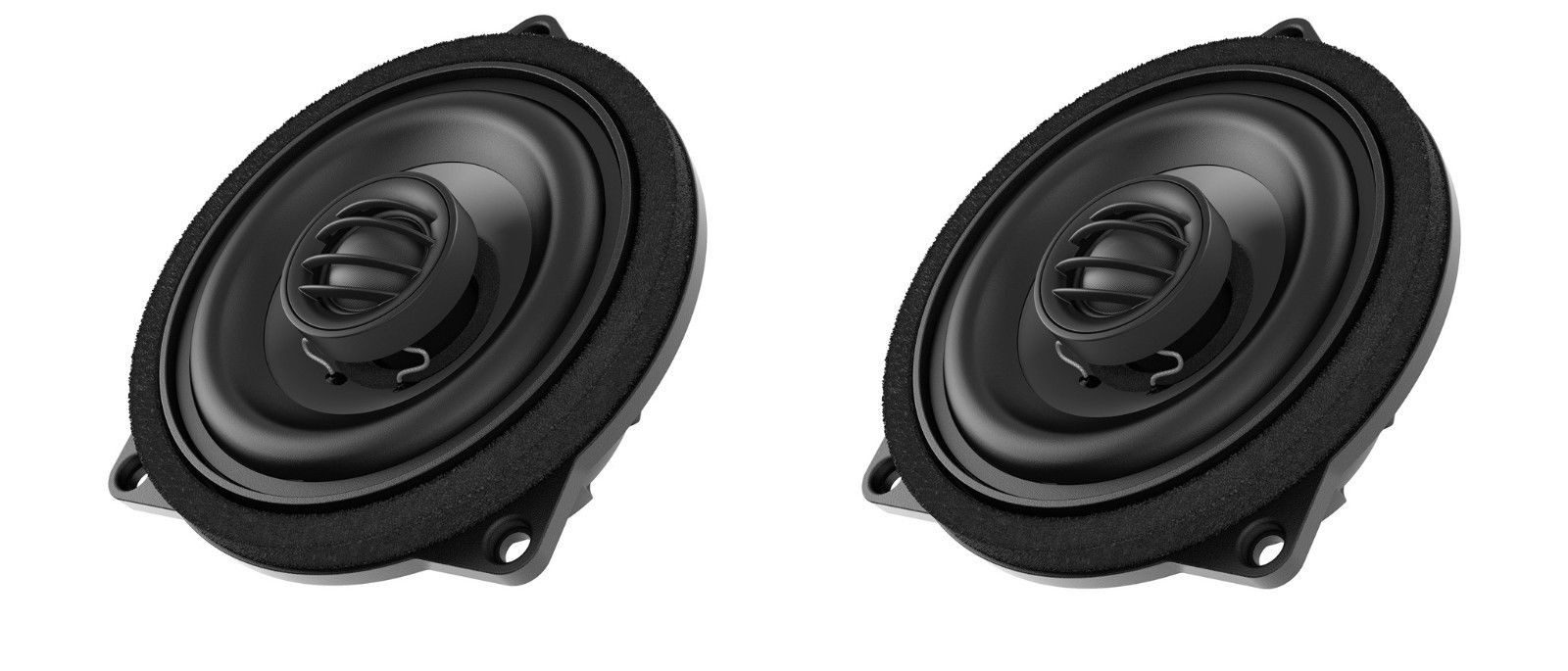

Technical Specifications for Audison Coax Speaker:
- Coax Midrange
- Size mm (in.)100 (4)T
- Tweeter diaphragm mm (in.)24 (0.9)
- Power Handling Watts continuous 40 Peak 80
- Frequency Response Hz100 ÷ 22k
- Magnet size D x d x hmm(in.)50 (1.97) x 29 (1.14) x 3 (0.12)
- Weight of one speaker kg (lb.)0,5 (1.1)
- Woofer Voice Coil Ømm (in.)25 (1)
- Tweeter Voice Coil Ømm (in.)20 (0.8)

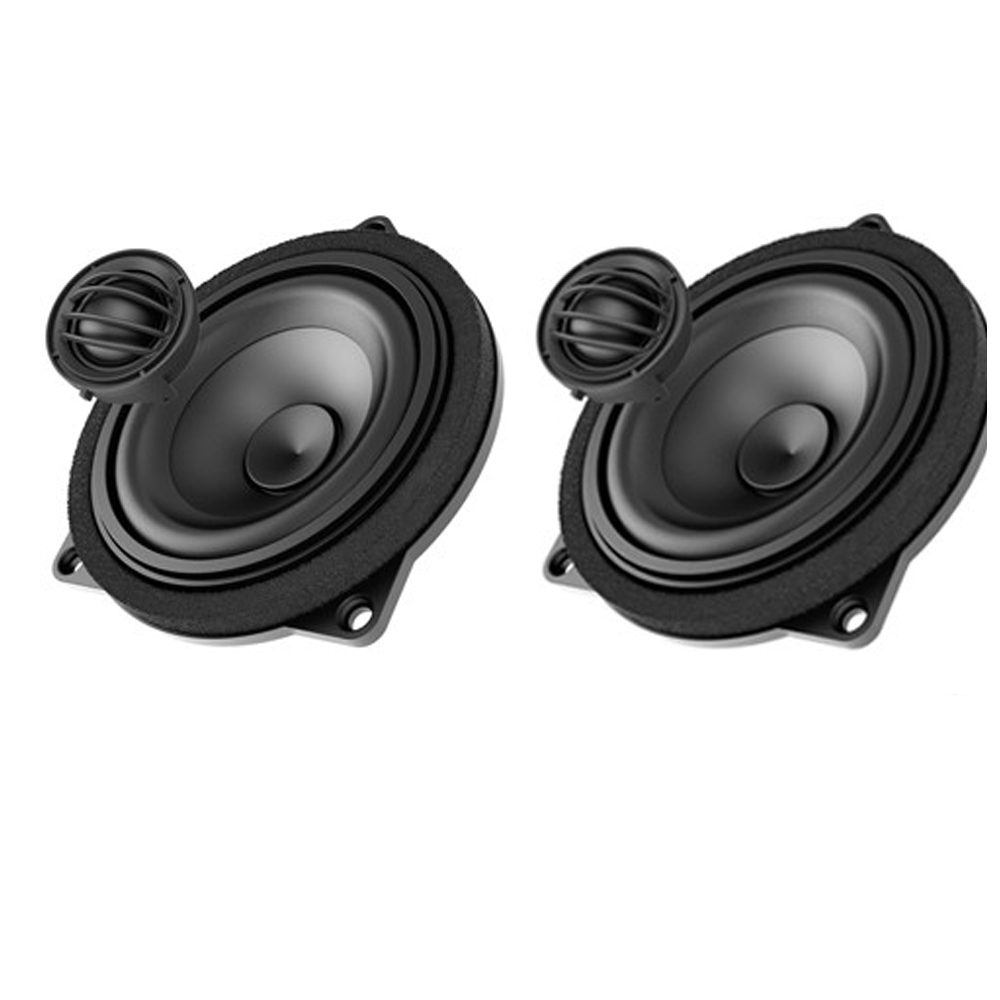

Technical Specification for Audison Prima 2 Way Component Speaker:
- Woofer Size mm (in.): 100 (4)
- Tweeter Size mm (in.): 29 (1.1)
- Power Handling: 100W peak, 50W continuous
- Frequency Response Hz: 90 – 23k
- Sensitivity dB: 89
- Crossover Type: Hi-Pass – 6 KHz @ 6dB/Oct.
- Component adjustment dB: -3, 0
- Woofer Magnet size D x d x h mm (in.): 50 x 29 x 3 (1.97 x 1.14 x 0.12)
- Tweeter Magnet size D x d x h mm (in.): 24.5 x 4 (0.96 x 0.16)
- Weight of one speaker Kg (lb): Woofer 0.426 (0.94)
- Tweeter 0.06 (0.13)
- Voice Coil : Woofer 25 (1) Tweeter 25 (1)
