TPMS07 Car USB TPMS Tire Pressure Monitoring Alarm System

Description

TPMS07 Car USB TPMS Tire Pressure Monitoring Alarm System

Tire Leaking Alert / High Pressure Alert / Low Pressure Alert / High Temperature Alert
Note: This TPMS unit will work with vehicles up to a max weight of 3.5 ton.

Introduction
XTRONS Tire Pressure Monitoring System (TPMS) is designed specifically to increase driving safety and to provide a better understanding of your vehicle’s tire conditions. Once you have correctly installed the TPMS, these sensors will automatically monitor tire pressure and temperature, and transmit real-time statistics to the receiver.
IMPORTANT INFORMATION: This TPMS is designed specially for a selection of XTRONS Android 9.0 car head units of “PST” & “PS” series. It is compatible with the following models:
PS59WRJL, TS709L, TS129L, PS89MTVL, PST99F2F, PST99FSF, PST99CRT, PST19RVT_L, PST19HDT, PST19CVH, PST19ACH_L, PST99QHN, PST19XTN, PST19LSM, PST19C4C, PST99M6M, PST19OTS, PST99CDK_L, PST99RO3K_L, PST99RO4K_L, PST99RNH, PST1925H

Features
1. Real-time monitoring of tire pressure and temperature for each tire.
2. Accurately detects tire pressure and temperature changes to sound warning alarm once parameters are stretched.
3. Displays pressure in Bar / Psi.
4. Displays temperature in °C / °F.
5. Easy to install, Stable Performance.
6. Supports sensor pairing and sensor position swap procedure to facilitate tire rotation.
7. Custom the upper and lower limit alarm value to suit your vehicle.

Why Should You Install TPMS07 in Your Car?
Prevent Accident
TPMS07 could monitor the tire air-leakage timely, keep driving under standard tire pressure, prevent flat and alarm in advance, efficiently avoid the traffic accident and improve the safety driving.
Extend Tire Life
Improve car load capacity, also extend the life of engine chassis, suspension system, and tires.
Balance the Tire Pressure
TPMS07 could balance the tire pressure, easy for driver to control, reduce the brake stopping distance, improve the car whole life and comfort.
Save Fuel
After you install the TPMS07 in your car, it could guarantee tires in normal tire pressure. It is helpful in reducing tire resistance and wearing, saving fuel, and driving car more economically.

Monitoring in Real Time
Designed to increase your driving safety and provide you with a better understanding of your vehicle’s tire conditions, this TPMS can monitor your car’s tires conditions in real time. When the system detects the tire is in abnormal status, the system wills end an alert to the monitor immediately. The corresponding tire icon will flash and its color will change from green to red, the buzzer will alert.

Easy Installation
The receiver can be placed in the car glove box, plug and play, and powered by the USB of the car stereo without changing the original car circuit.
1. Mount the hex nuts.
2. Screw in sensor at clockwise direction.
3. Tighten hex nuts in counter clockwise direction.

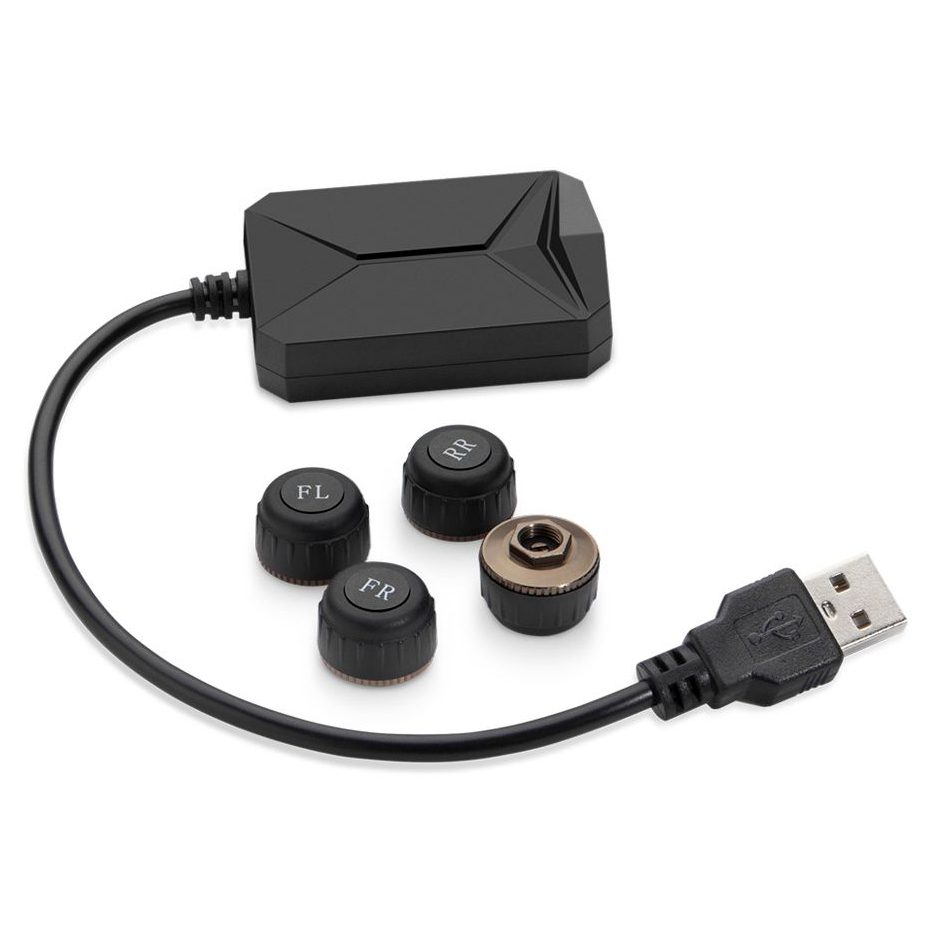

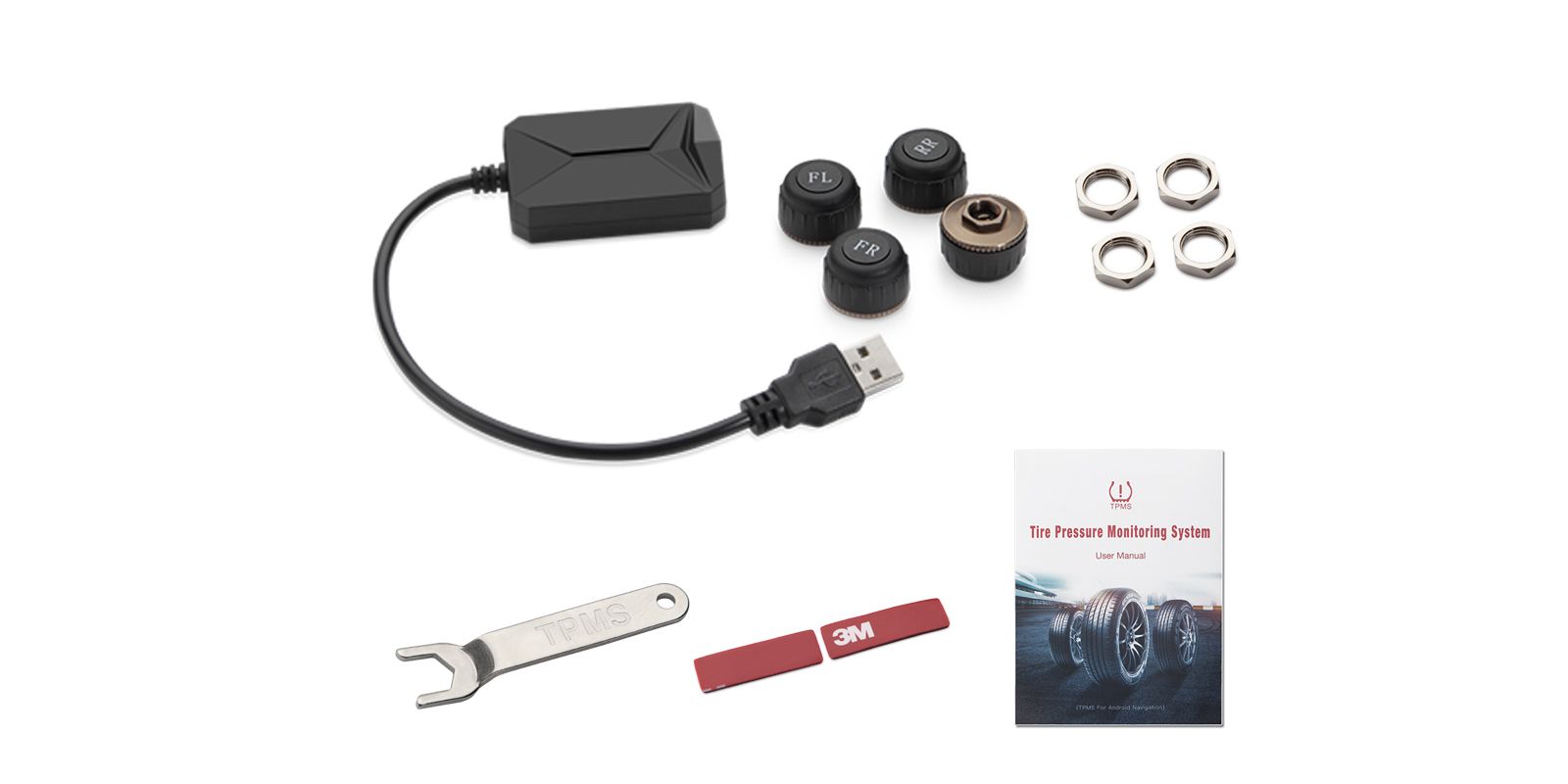

Package Includes

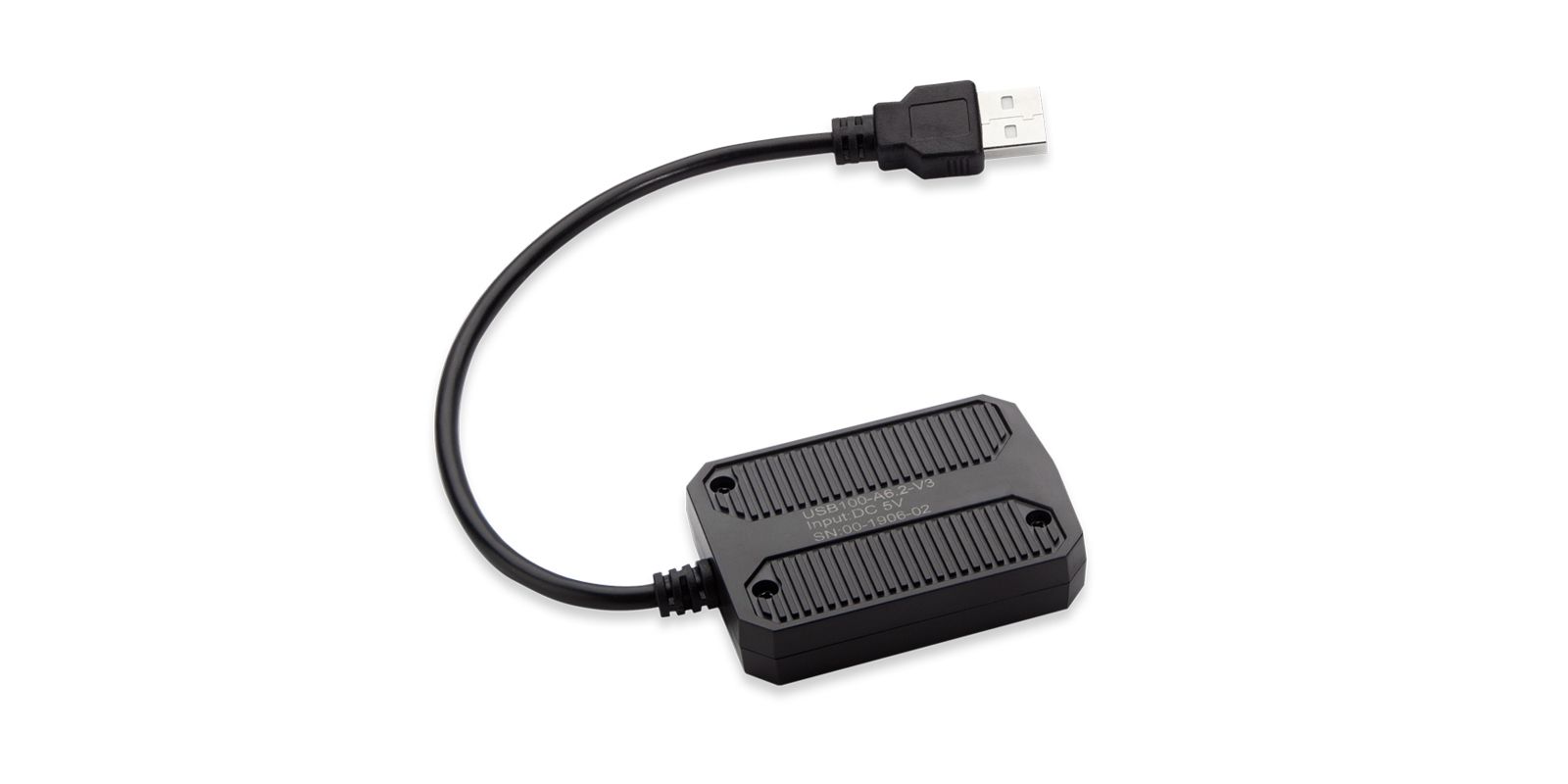

1 x Receiver

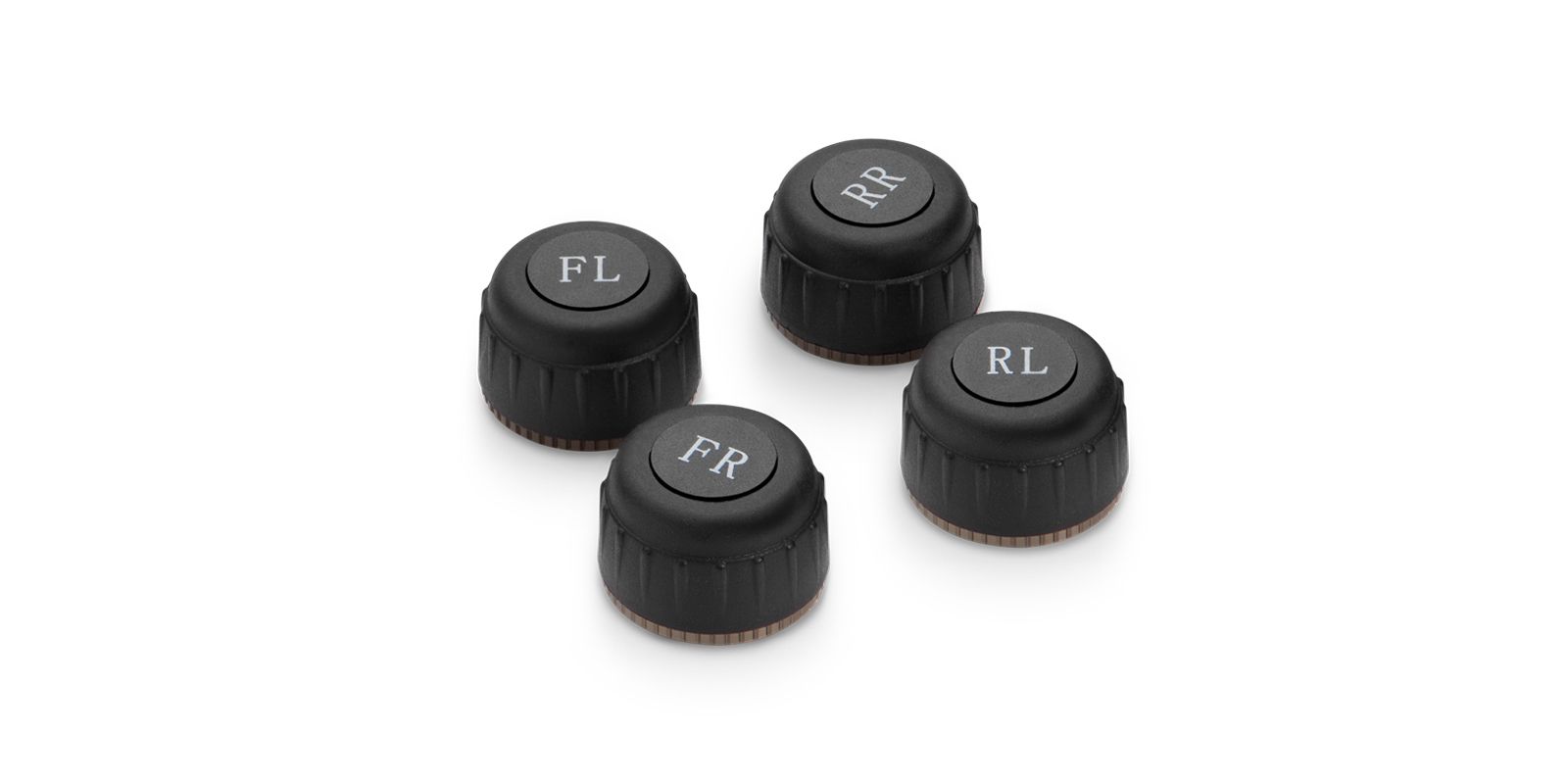

4 x Sensors
1 x Wrench
2 x Adhensive Pad
4 x Anti-theft Nuts
1 x User Manual

Sensor Parameters:
Working Voltage: 2.1V—3.5V
Working frequency: 433.92MHz
Pressure Measurement Range: 0-116Psi
Temperature Measurement Range: -30°C — 75°C
Working temperature: -20°C — 65°C

Receiver Parameters:
Working Voltage: DC5V;
Working Current: <15mA
Working frequency: 433.92MHz;
Working temperature: -30°C — 75°C
Communication line length: 200mm
Fixed form: 3M tape
