Mercedes W213, W222 S, E-Class NTG 5/5.5 Multimedia Video interface with Wireless Phone Mirroring

Description

Mercedes W213, W222 S, E-Class NTG 5/5.5 Multimedia Video interface with Wireless Phone Mirroring

Compatibility:

• Compatible with the Mercedes W213, W222 2015 Onwards with the Comand NTG 5/5.5 System.

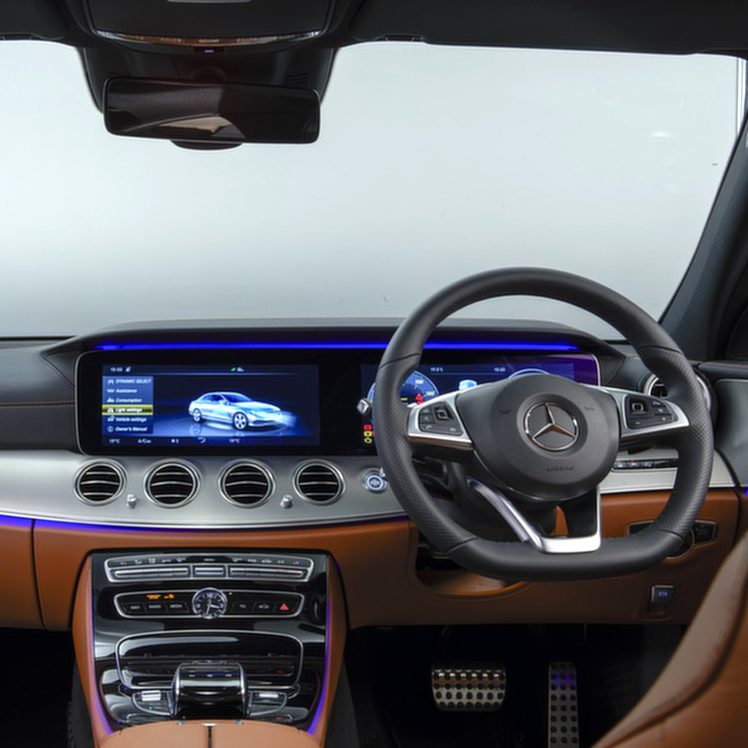

• Works with both the 8″ and 12.2″ Factory Display.

Features:

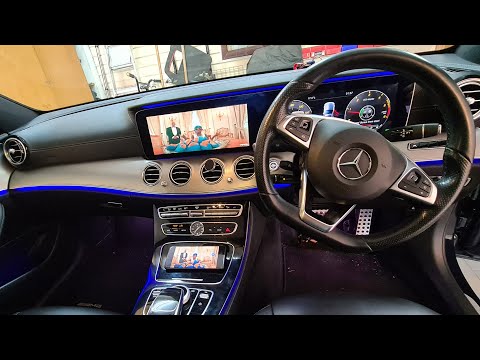

• Watch any video source to your Mercedes Comand screen
• 2 x Video inputs for connecting any Video source to your original Screen.

• When combined with our Digital TV (DVB-T) or Digital Radio (DVB-T) module, our interface provides you with a fully integrated Digital Radio (DAB) or Digital TV solution where you can select stations via the Control Control knob on the NTG 5/5.1 system. This is the ideal solution if your vehicle was not fitted the DAB or if you would like to add Digital TV to your original system

• RGB input for aftermarket navigation
• 1 X Rear Camera input with automatic switching to rear camera when reverse gear is selected and Displays Dynamic Parking Guidelines (which move with the position of the steering wheel)
• Automatically dedects the rear camera signal using the vehciles CAN-BUS data

• 1 X Front Camera input with automatic or manual activation.
• 2 x Video Outputs for rear headrest screens

• Picture in Picture rear camera mode retains the original Parking sensor with the rear camera display.

• Video in motion for all connected video sources
• Switch between Mercedes display and AV input using Comand controls

• Customizable menu system for screen adjustment, parking guidelines etc

Installation

The video interface is fitted to the back of the screen via the plug and play monitor and power cables. Once installed, press and hold the Return button on your Comand controller to switch to the video inputs. The DAB DVB-T module is connected to AV1/AV2 if these devices are being installed. The interface automatically switches to rear camera when the car is in reverse gear.

IMPORTANT NOTE

For audio, the interface must be connected to the car’s AUX input.

If your car does not have a factory Aux input, the Aux to Bluetooth module can be added which will allow the sound to be streamed to your car system via Bluetooth without affecting your original bluetooth telephone connection.

The kit includes the following:

•  v4 Multimedia Video Interface
• AV cable (2 x AV input, 1 x Reverse Camera input,  1 x Front Camer Input, 2 x AV Output)

• RGBS cable
• LVDS monitor cable
• Plug and Play Power/CAN connector

Optional Extras:

Select from the drop down menu above to add the following options specifically designed for use with our interface.

DAB Digital Radio Interface

Retain the original look of your vehicle whilst adding the DAB and DAB+ function. Displays station list and station/track/programme information on your screen and use your Comand controls to change between the stored stations. This is the ideal solution if your vehicle was not supplied with the DAB option as standard.

DVB-T Digital TV Tuner (including antennas)

Watch digital TV anywhere you go in your car. This high quality digital tuner is supplied with dual amplified window mount antennas for superior reception, especially when on the move. It is perfect for use with our video interface and you will be able to use the original Comand controls to change channels. There is also a USB input for playback of audio and video files.

Rear Camera

The rear camera is specifically designed to fit the boot lid handle of the Mercedes Benz. Please select from the required model from the drop down menu.

The front camera is specifically designed to fit the grill on the front of the car.

Aux/Audio to Activator

Activates the AUX function on the original Mercedes system, includes AUX in cable.

Mercedes Front Camera

Front camera designed to fit the Mercedes Grille
