Mercedes Benz Vehicles Match Front & Back Speakers Kit with Subwoofers and Amplifier Car Audio Upgrade

Mercedes Benz Vehicles Match Front & Back Speakers Kit with Subwoofers and Amplifier Car Audio Upgrade

Mercedes Benz Vehicles Focal Front & Back Speakers Kit with Subwoofers and Amplifier Car Audio Upgrade

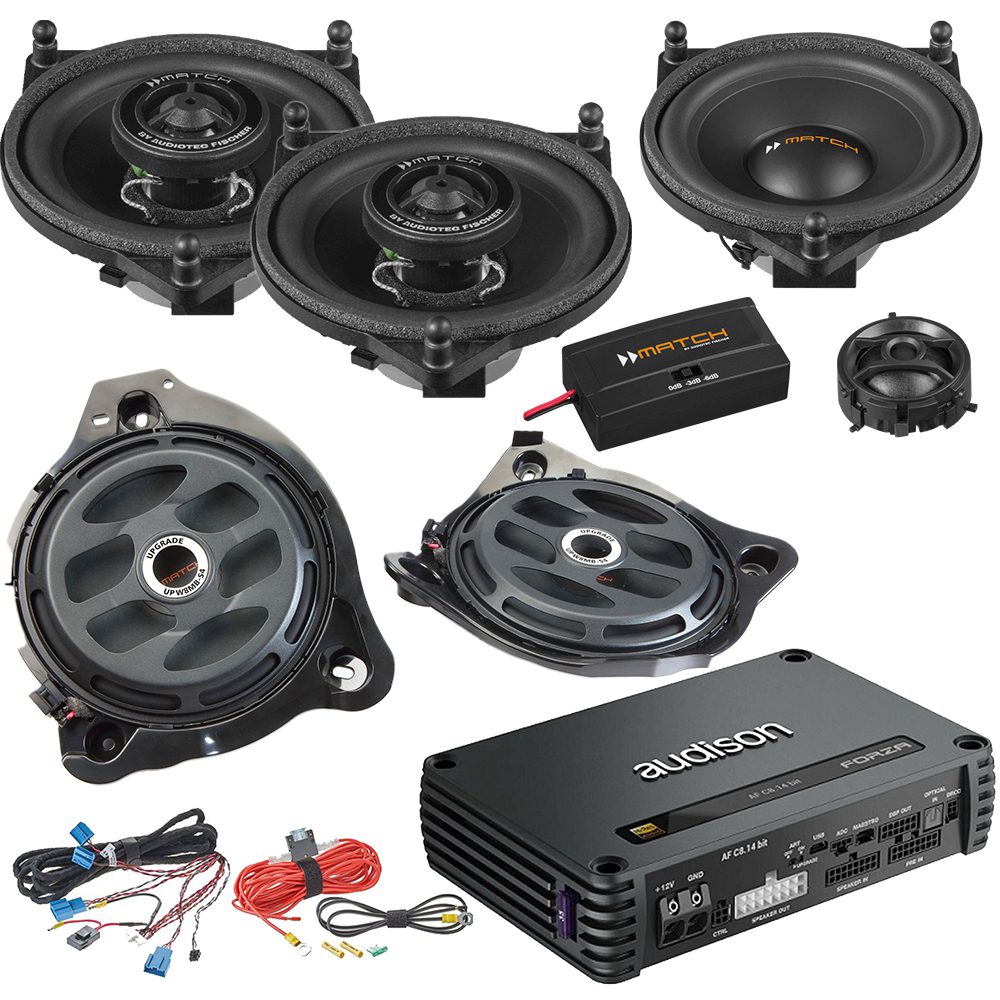

Package includes:

• Match UP W8MB-S4 – 8 Inch Subwoofers Pair 300w
• Match UP X4MB-FRT – Back Door 2-Way Coaxial Speakers Kit
• Match UP C42 MB-FRT – Front Door 2 Way Component Speakers Kit
• Audison Forza AF C8.14 Bit Amplifier – 8 Channel Amp And 14 Channel DSP 800w RMS

This package we will be upgrading the front door speakers with Match UP C42 MB-FRT 2-way component speakers, the back door speakers with Match UP X4MB-FRT 2-way coaxial speakers, replacing the Kickwell under dash subs with Match UP W8MB-S4 8″ subwoofer, all powered up by the top of line amplifier from Audison the Forza AF C8.14 Bit Amplifier. The Front & Back Doors will be sound proofed to stop vibration and enhance the sound quality. This job will take upto 8 hours to complete the work and you have to leave the car for the day with us. We will supply all parts including cables and everything required to complete this install.

Compatibility list

• MERCEDES C Class | Cabriolet (2016-2021) | A205
• MERCEDES C Class | Coupe (2015-2021) | C205
• MERCEDES C Class | Estate (2014-2021) | S205
• MERCEDES C Class | Saloon (2014-2021) | V205
• MERCEDES C Class | Sedan (2014-2021) | W205
• MERCEDES E Class | Cabriolet (2017-2021) | A238
• MERCEDES E Class | Coupe (2017-2021) | C238
• MERCEDES E Class | Estate (2016-2021) | S213
• MERCEDES E Class | Saloon (2016-2021) | V213
• MERCEDES E Class | Sedan (2016-2021) | W213
• MERCEDES EQC Class | E-Suv (2020-2021)
• MERCEDES GLC Class | Suv (2015-2021) | X53
• MERCEDES GLC Class | Suv coupe (2015-2021) | C53
• MERCEDES S Class | Cabriolet (2014-2020) | A217
• MERCEDES S Class | Coupe (2014-2020) | C217
• MERCEDES S Class | Saloon (2013-2020) | V222
• MERCEDES S Class | Sedan (2013-2020) | W222

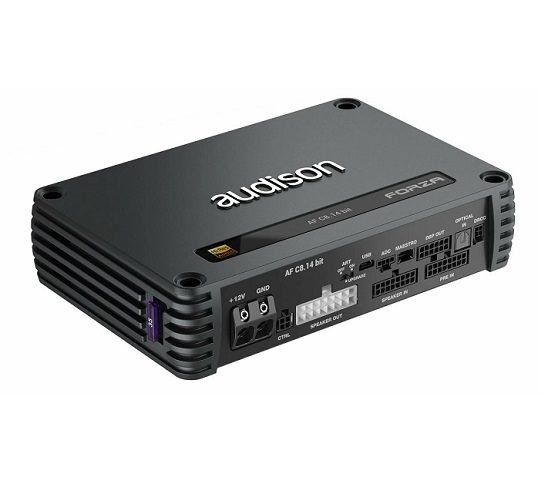

AF C8.14 8 CHANNELS AMPLIFIER WITH DSP – 800W

DSP Amplifier | 800 W | 14 CH DSP + 8 x 100 W @ 2 ohm | D-class Fully Bridgeable

AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING

• Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
• Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
• Next-generation bit Drive software platform
• Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
• Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
• Up to 14 output channels (8 amplified, 6 optional pre-outs) controlled by the DSP to expand the system with other amplifiers
• 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
• Extension card slot (additional 4 analog or 1 digital inputs)
• Electrical signal analysis for each input channel ensures proper integration and correction
• Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
• Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard

Match Audiotec Fischer Match UP C42 MB-FRT 4″ 2-Way Component Speaker System 60W for Mercedes

Product highlights:

• component system includes two woofers, two tweeters, and two crossovers
• 4″ coated paper woofer with rubber surround
• 1″ silk dome tweeter
• separate crossover (3-level tweeter attenuation)
• designed specifically for select Mercedes-Benz models
• factory harnesses plug directly into speakers
• works with factory radio, aftermarket receiver, or outboard amp
• handles up to 60 watts RMS power range (120 watts peak)
• frequency response: 90-25,000 Hz
• impedance: 4 ohms
• sensitivity: 89 dB
• grilles not included

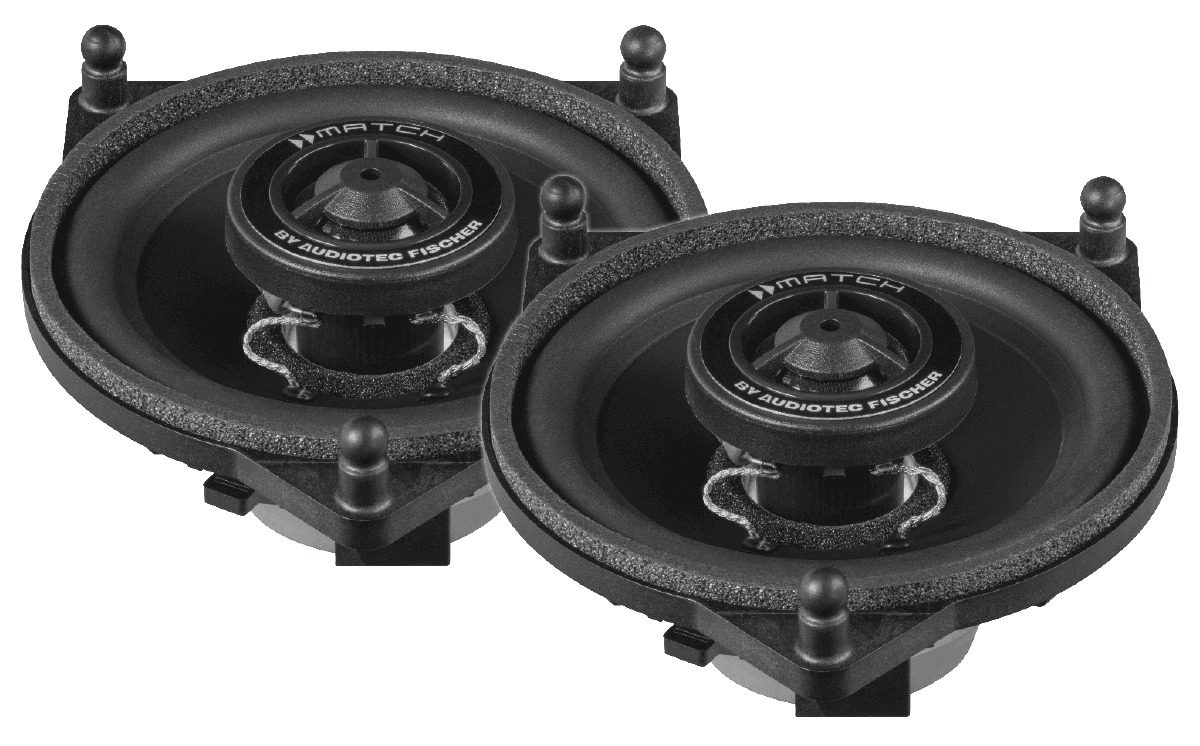

Match Audiotec Fischer Match UP X4MB-FRT 10cm / 4″ 2-way Coax Speakers for Mercedes

Features:

• 60W RMS Power
• 120W Max Power
• Optimized sound characteristics for Mercedes vehicles for a spectacular sound in combination with significantly increased power handling
• Exclusively developed baskets and car-specific
• Integrated crossover with 6 dB slope
• Perfectly combinable with further MATCH UPGRADE components – e.g. DSP amplifier

Technical Specs

• Power RMS / max. 60 / 120 Watts
• Frequency response 90 Hz – 25,000 Hz
• Impedance 4 Ω
• Efficiency 1 W / 1 m 89 dB
• Cone material TW: Coated silk dome W: Coated paper
• Crossover Integrated, 6 dB slope
• Outer diameter 126 mm / 4.96″
• Installation diameter 90.8 mm / 3.57″
• Installation depth 34.3 mm / 1.35″

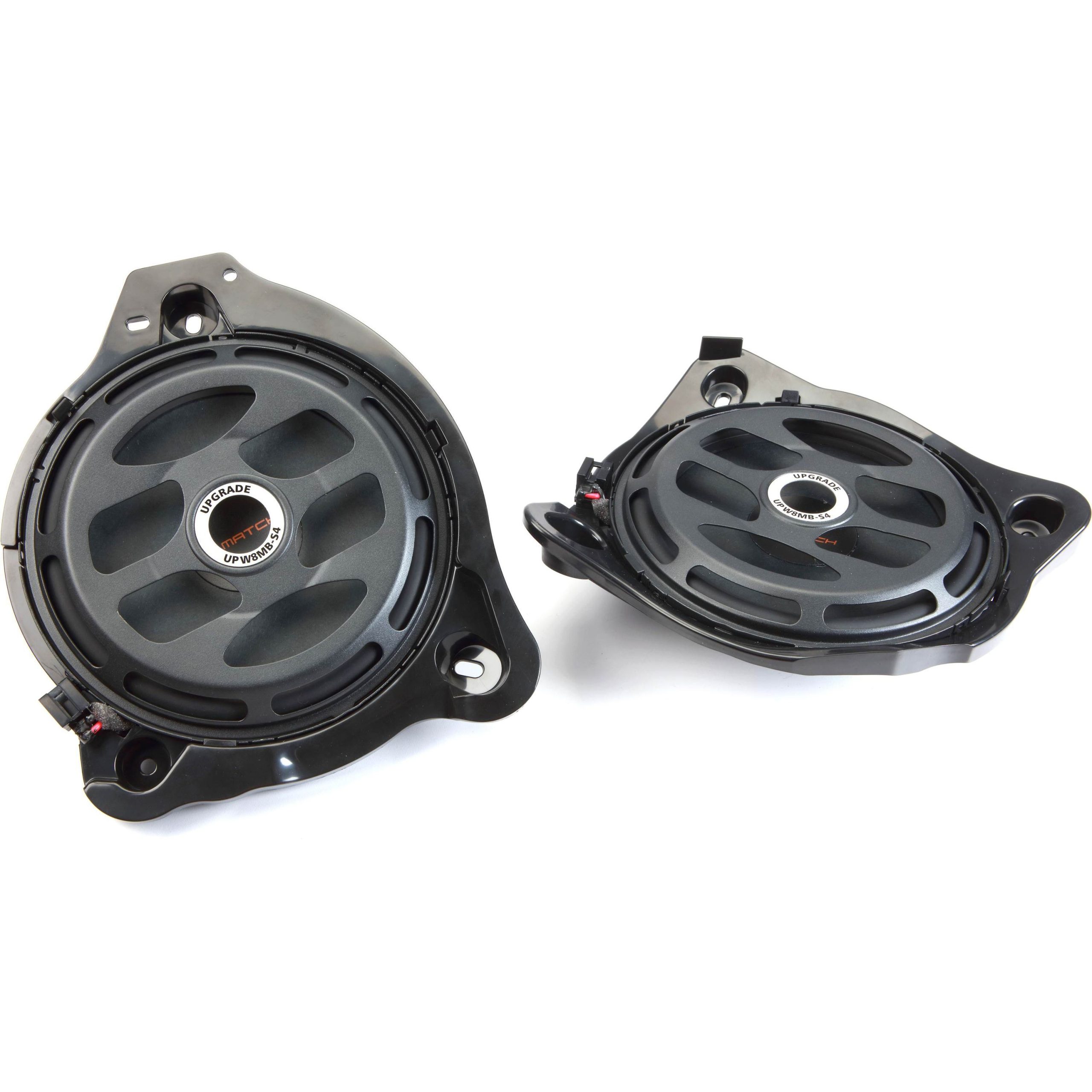

Match Audiotec Fischer Match UP W8MB-S4 2 x 20cm/8″ Subwoofers for Mercedes 100w RMS

Premium cars deserve premium sound – and this includes a deep and punchy bass reproduction which the basic speaker setup in Mercedes vehicles doesn’t deliver at all. However, the perfect solution is quite simple – the heavy-duty 8″ / 200 mm woofers of the UP W8MB-S4 system fit perfectly into the original mounting positions in the bulkhead and provide exactly the right punch that you can feel and which brings music to life.
Especially in combination with one of our DSP amplifiers these subwoofers reveals their full potential in respect of dynamics.

The perfect subs for your Benz
The subwoofers found in the footwells of many modern Mercedes-Benz models help to bring out the low-end impact of your music, but their stock subs leave something to be desired. MATCH by Audiotec Fischer has created a replacement package which allows you to upgrade your Mercedes’ system with cleaner bass response.

German quality
What better for your German-engineered car than a German-engineered sound system? MATCH’s handcrafted speaker design is precision-built using the latest technology and materials. To minimize distortion, the subwoofer uses a special magnet structure that efficiently dissipates heat and promotes extreme accuracy.

Easy installation
The UP W8MB-S4 package includes two high-performance 8″ subs with Mercedes-specific mounting brackets and wiring harnesses. You’ll get the upgraded sound you’re looking for without the hassle of altering your Mercedes’ interior. MATCH also includes 20″ harnesses for connecting these subs if you choose to power them with an aftermarket amplifier.

Features

• two 8″ subwoofers (pair)
• designed to fit select Mercedes-Benz models
• Mercedes-Benz speaker plugs connect directly to these subs
• coated paper cone
• handles up to 100 watts RMS
• frequency response: 25-250 Hz
• sensitivity: 88 dB
• top-mount depth: 1-1/8″
