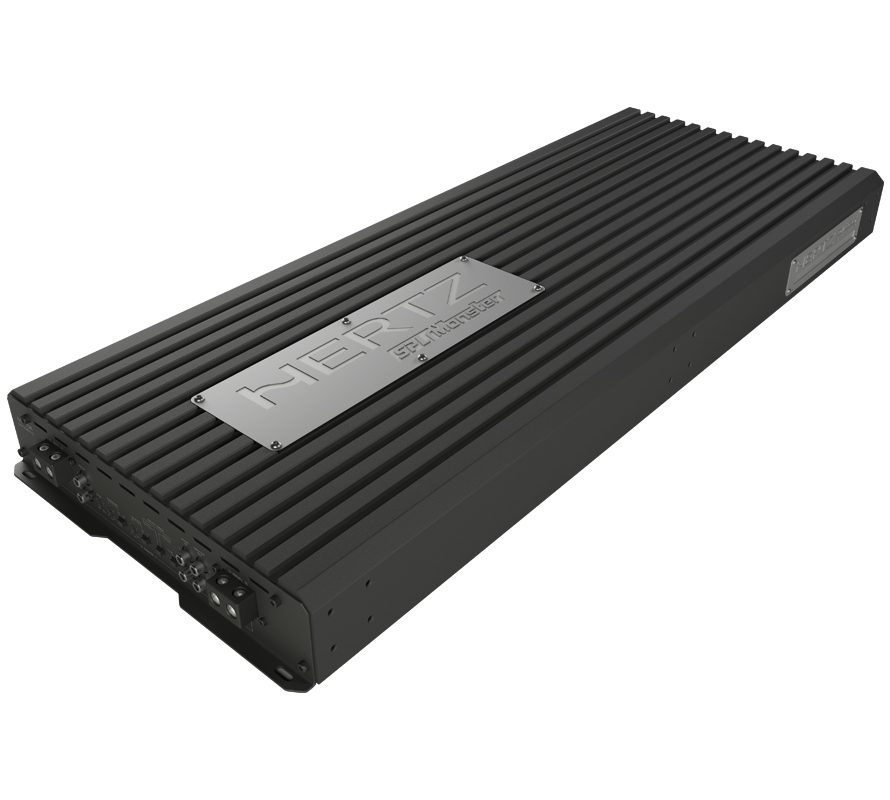

Hertz SPL Monster MP 15K UNLIMITED Amplifier D CLASS 15000W 2 Channel

Description

Hertz SPL Monster MP 15K UNLIMITED Amplifier D CLASS 15000W 2 Channel

The Hertz MP 15K UNLIMITED can deliver over 15.000 W. The enormity of this project amazes; both in terms of the physical “size” of the product itself and of the sheer energy it generates! The Hertz project boasts special features and extensive enhancements which distinguishes itself. Among them, uninterrupted power supply transfer and an input circuit specifically designed for SPL competitions, featuring integrated Hi-Pass and Lo-Pass filters.

A unique power supply connection system, Direct Current®, transfers power between the battery and amplifier with very low contact resistance. 4 – 1/0 AWG cables (2 for the positive and 2 for the negative) are terminated with ring terminals on the supply side and secured to the amplifier with 4 – 2,5 mm thick copper buss bars connected directly to the printed circuit board. This differs completely from the high resistance terminal blocks found on traditional amplifiers that when are called upon to pass high current, generate heat and high power loss. Direct Current® is fundamental to achieve the current transfer required for high SPL systems.

In order to deliver such extraordinarily high power, the power supply stage features 8 toroidal transformers, 20 – 3300uF–105°Low ESR primary capacitors for a total of 66000uF; 32 – 160A TO247 Mosfets and 10 – 820uF secondary capacitors capable of 200 V.

The output stage, settable in bridged or stereo mode, features 20 -190A/360V impulsive current Mosfets: solid, robust power and thermal dissipation without compromise.

For extreme SPL professionals, the MP 15K UNLIMITED is the ideal choice as a foundation to create a system that will achieve new records. The Hertz SPL Stack System® provides the ability to stack multiple MP 15K UNLIMITED amplifiers, using the supplied 2 mm thick robust iron Brackets. These six brackets are secured to each amplifier via threaded mounting points directly on the heatsink, providing solid integrity. With the Hertz SPL Stack System® your system can deliver 15.000 W, 30.000 W, 45.000 W, or more, just stack and connect!

Direct Current: 4 – 1/0 AWG cables (2 for the positive and 2 for the negative) terminated with ring terminals on the supply side and secured to the amplifier with 4 – 2,5 mm thick copper buss bars connected directly to the printed circuit board, providing the ability to transfer power between battery and amplifier with very low contact resistance.

Hertz SPL Stack System stacks multiple amplifiers thanks to the 6 supplied 2 mm robust iron Brackets. The threaded mounting points on the heatsink let your SPL power plant to grow without limits.

An input circuit specifically designed for SPL competitions featuring selectable output mode settings that extend the range of the mobile assemblies the Hertz SPL Monster subwoofers offer, letting your system be adaptable to any competition category.

Specifications

• Channel mode 2-1
• Output Power (RMS)
• @ 14.4 VDCLoad
• Impedance Stereo Bridge
• 4Ω 1500 W x 2 5600 W x 1
• 2Ω 2800 W x 2 9000 W x 1
• 1Ω 4500 W x 2 12000 W x 1
• Filters
• Lo-Pass
• OFF / Lo-pass: 40 ÷ 150 Hz @ 24 dB/Oct.
• Distortion – THD  – (100Hz @ 4Ω) 0.15 %
• S/N Ratio (A weighted @ 1V) 69 dB
• Damping factor (100Hz @ 4Ω) > 950
• Size W x D x H mm (in.)323 x 830 x 68,5 (12.8 x 32.7 x 2.8)
