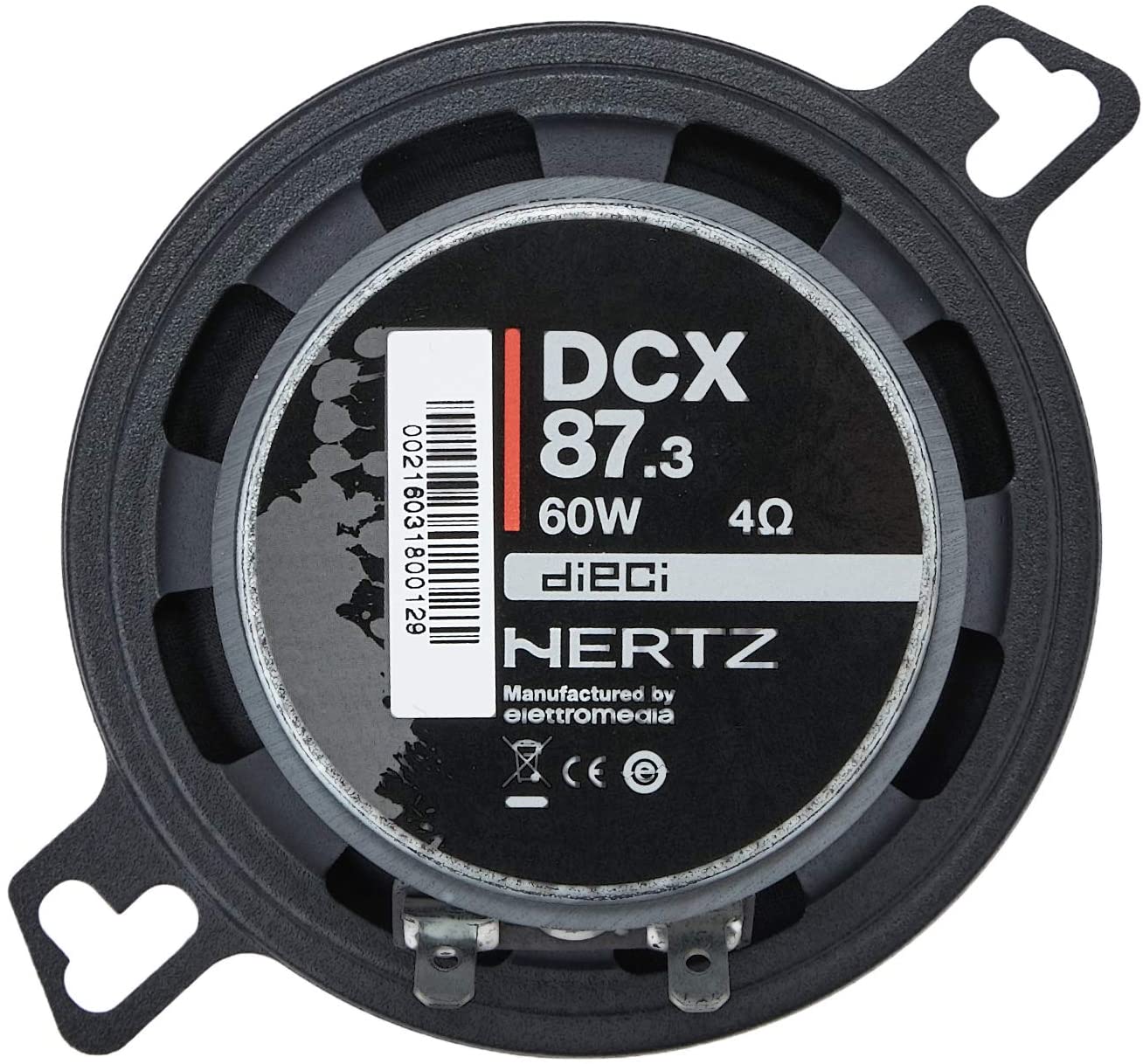

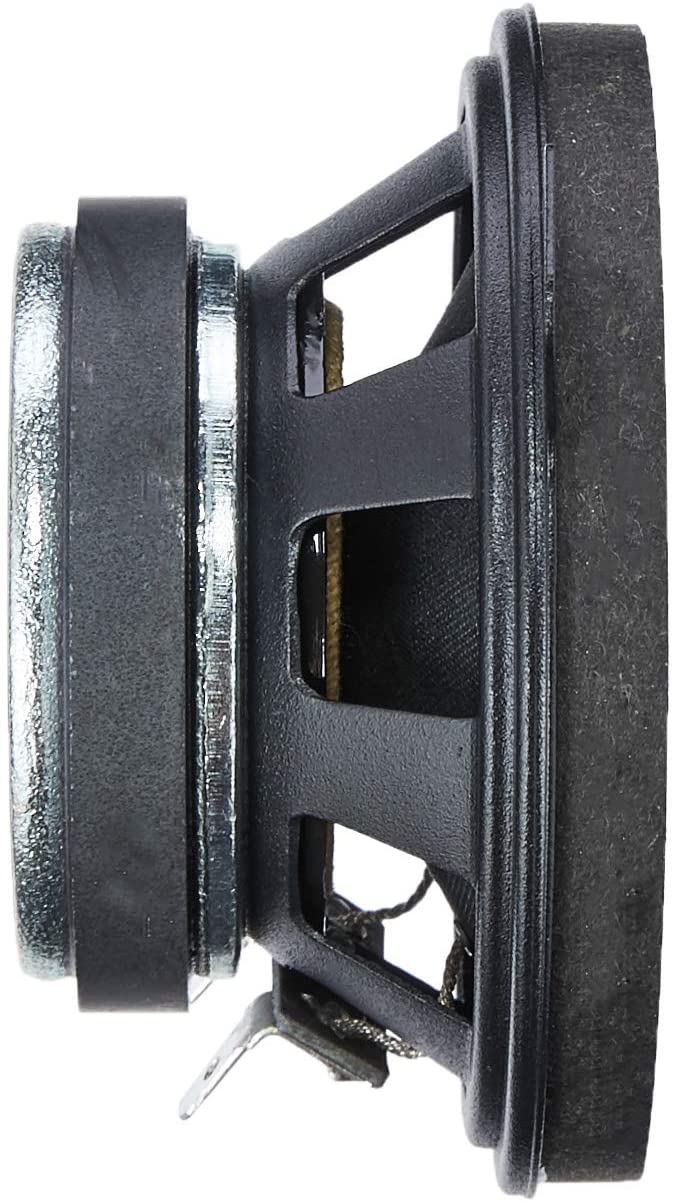

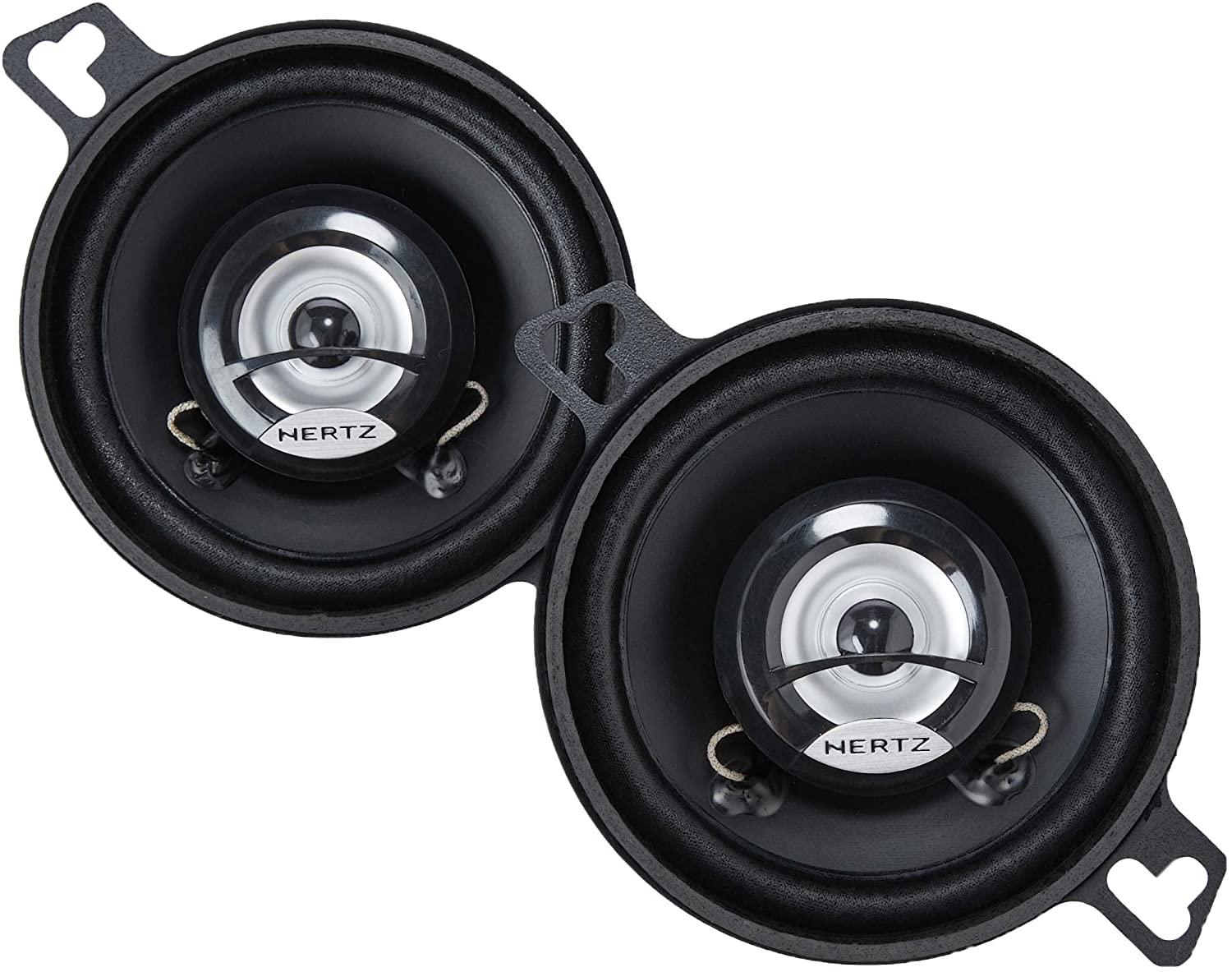

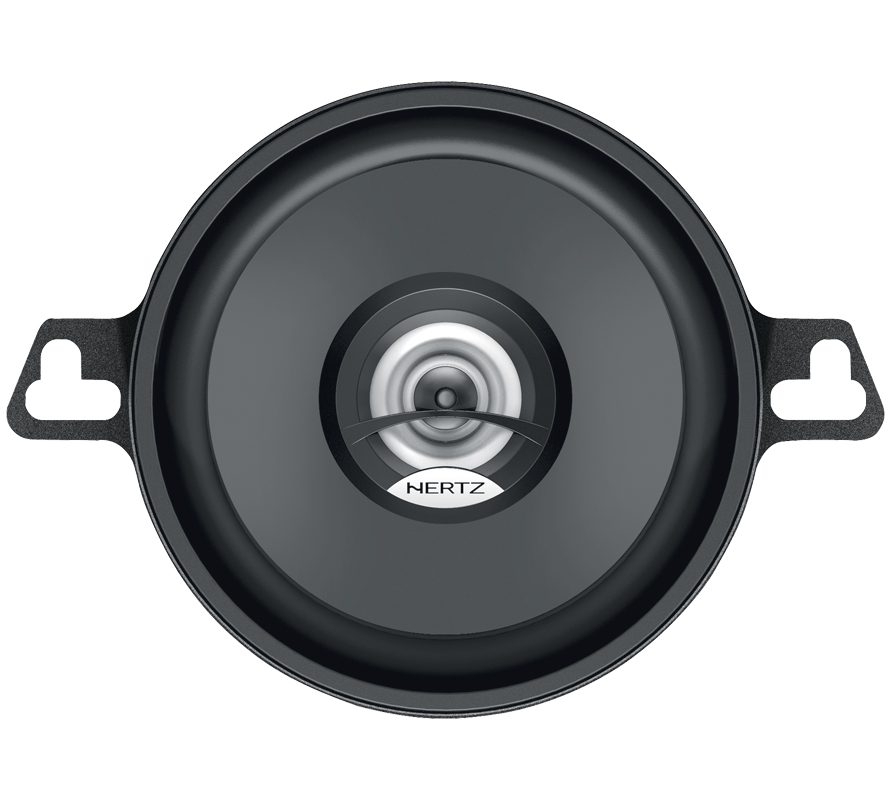

Hertz Dieci DCX 87.3 3.5″ 8cm 2-way Coaxial Speakers 30W RMS

Description

Hertz Dieci DCX 87.3 3.5″ 8cm 2-way Coaxial Speakers 30W RMS

The DCX 87.3 is a coax combining a woofer made of the highest performance materials with a neodymium tweeter featuring the exclusive PEI dome. Despite its compact size, the DCX 87.3 features an oversized magnetic group for ultimate control, still maintaining a compact size. For those who look for a high performance two-way coax, the DCX 87.3 is able to ensure wide frequency response and excellent sound in any installation.

Features

• Large motor assembly for mobile voice coil control.
• Pure copper voice coil, wound on conex former, for maximum lightness.
• Water-repellent treated paper cone.
• Fabric surround, for wide excursion and resonance damping.
• Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
• DIN size basket protected by abrasion-proof dust paint.
• Tin-plated, high current terminals.
• Silver-plated lead wires for maximum reliability and conductivity.
• Butyl rubber protective cover, against crashes and abrasions.
• Epoxy glue for basket and motor system provides perfect coupling.
• Low carbon content plates for maximum magnetic permeability and high heat dissipation


Specification

• Two way coaxial
• Woofer size mm (in.): 87 (3.4)
• Tweeter size mm (in.): 15 (0.6)
• Power handling W peak: 60 / W continuous: 30
• Impedance: 4ohms
• Frequency response Hz: 130 ÷ 21k
• Sensitivity dB SPL: 92
• Magnet size D·d·h mm (in.): 60 x 24 x 8 (2.4 x 0.9 x 0.3)
• Voice coil Ø mm (in.): 20 (0.8)
• Woofer magnet: High density flux ferrite
• Tweeter magnet: Neodymium
• Woofer cone: Water-repellent pressed paper
• Tweeter dome: PEI
• Weight kg (lb.): 0,31 (0.68)
