CTSFO021.2 Ford Ranger Steering Wheel Control Stalk Interface Adaptor

Description

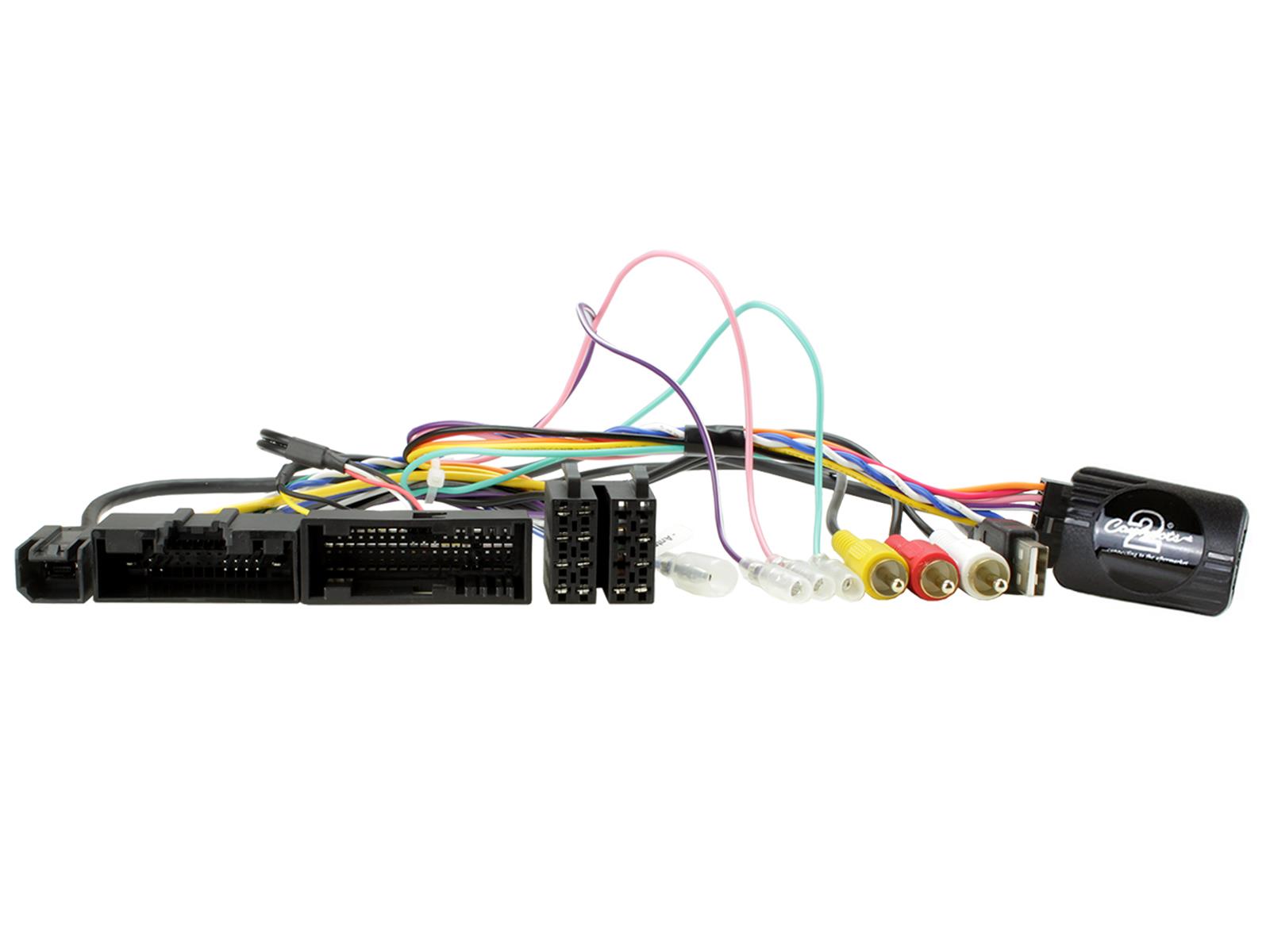

CTSFO021.2 Ford Ranger Steering Wheel Control Stalk Interface Adaptor

Ford steering wheel control interface. For vehicles with SYNC3 system and small display. Voice Assistant support available with software update

Car Compatibility

Features & Benefits

• Retains Factory Steering Wheel Control Functionality

• Retains Phone Buttons

• Retains USB and AUX Inputs

• Retains Reversing Camera

• Supports Voice Assistant (with software update via SWCREFLASHER)

• Provides Speed Pulse, Park Brake, Reverse Gear & Power Antenna Output

Whats included

• Steering Wheel Interface
• Patch lead

PATCH LEAD This interface connects a compatible car stereo with a joystick input (blue  line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.

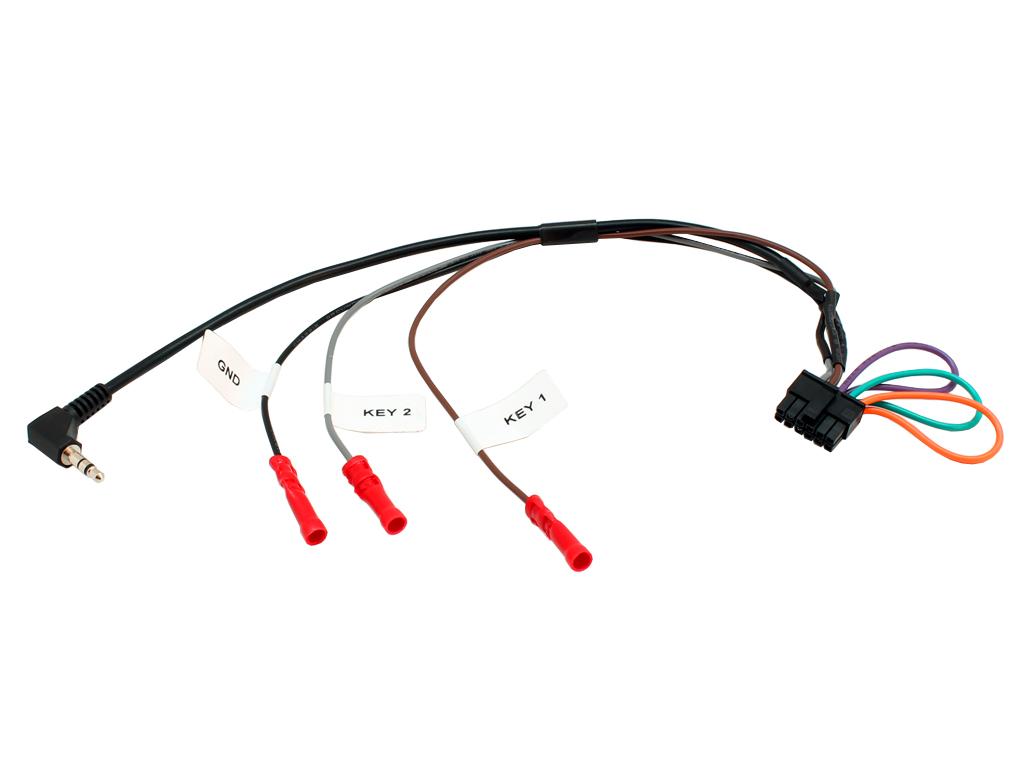

CTMULTILEAD.2 head unit connection lead for:

• Alpine (3.5mm jack)
• Beat (single wire connection)
• Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
• Clarion (3.5mm jack)
• JVC (3.5mm or single wire)
• Kenwood (single wire)
• LG (3.5mm jack)
• Nakamichi (single wire connection)
• Panasonic  (single wire but NOT AV units)
• Philips (single wire connection)
• Pioneer (3.5mm jack)
• Sony (3.5mm jack)
• Zenec  (single wire)
• Other Chinese SWC learning head units

Note:

We make every effort to make sure that the information provided is correct.  If you are not sure on the suitability of the product, remove the original headunit and compare the original connector in the vehice to the photo to make sure it is the same.

If you are still note sure, then simply contact our customer services.
