Description
CCTV Cameras and 4ch. DVR Recorder Vehicle Security System for Car Taxi Van & Commercial Vehicles with 2 or 4 AHD Cameras
This is the perfect mobile digital video recorder which is specially designed for vehicle surveillance and monitoring. It combines a high speed, high performance embedded processor and operating system. The advanced H.264 Video compression make the product a very powerful and easy CCTV install solution for vehicles.
Camera Options
- 2x AHD 720P 1.0MP PAL NTSC 4 Pin Aviation School Bus Dome Waterproof CCTV Camera
- 4x AHD 720P 1.0MP PAL NTSC 4 Pin Aviation School Bus Dome Waterproof CCTV Camera
- Image sensor: 1/4” V20+H62 CMOS
- Signal System: PAL/ NTSC
- Lens: 2.8mm/ 3.6mm/ Customized optional
- Effective pixels:1280(H)*720(V)
- Horizontal Resolutions: AHD: 1.0 million pixels 720P
- Frequency:50Hz or 60Hz
- Gamma:0.45
- Shutter Speed: 1/50～1/100000s or 1/60～1/100000s
- S/N Ratio: ≥46dB
- Video output:1.0V p-p
- Power Supply:DC12V (±10%) /24V (optional)
- Power:3W
- Electric current:250MA
- IR distance: 10M+
- Video compound signal: 1.0Vp – p75Ω
- Working temperature: -30℃~60℃
- Working humidity: Relative humidity less than 95%
- NO AUDIO

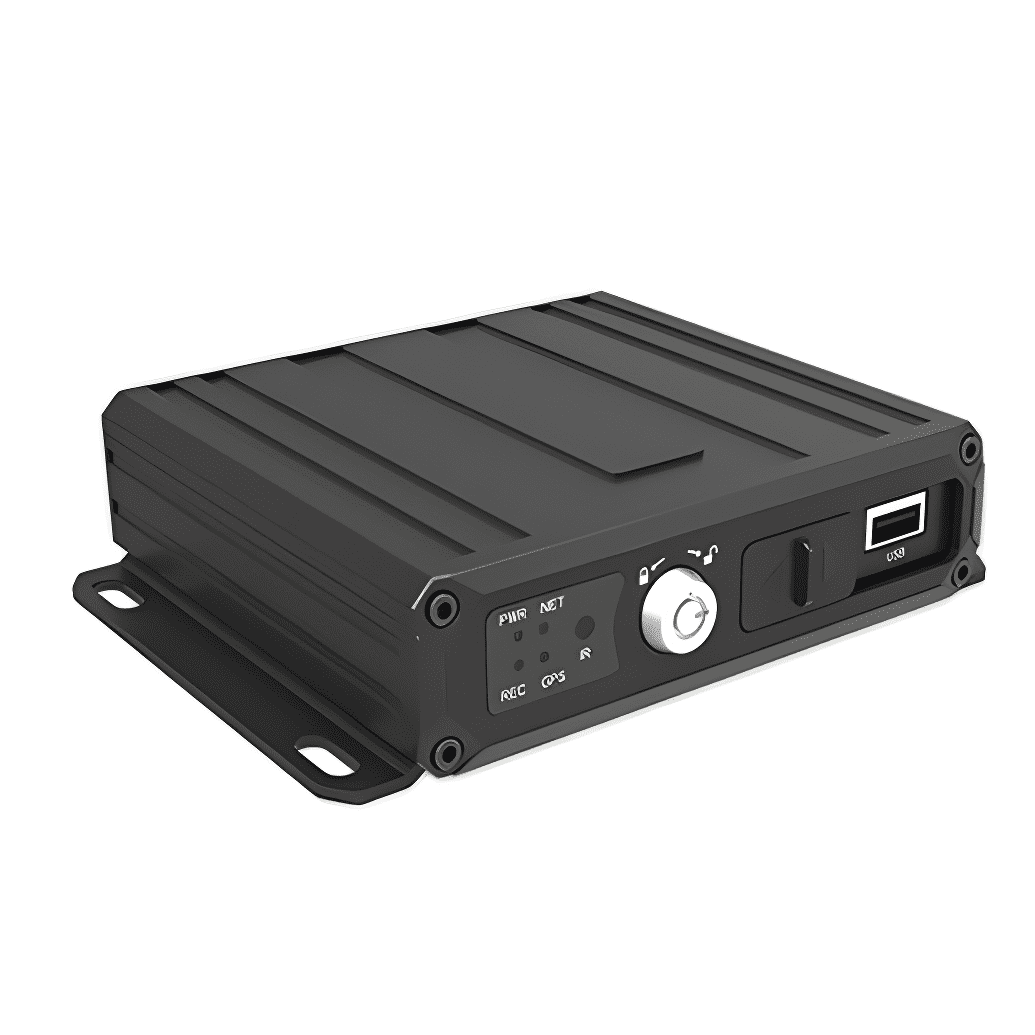

DVR Recorder Specifications
|
Specifications |
||
|
Operating System |
Linux |
|
|
Language |
English, Chinese or Customized language. |
|
|
Video Compression |
H.264 |
|
|
OSD |
Support for time, date, vehicle ID, image, etc. |
|
|
GUI |
OSD Interface |
Can external connect to LCD and set the system specifications by remote |
|
Video and Recording |
Video Input |
4CH 1080P/720P AHD/Analog/Compound video input, aviation connector, 1.0Vp-p, 75Ω |
|
Video Output |
1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω. Support 1CH full screen and 4CH division. |
|
|
Preview |
Single/4CH Pictures Preview, support full screen of event trigger or back view of car reversing |
|
|
Recording Resolution |
Support 1080P/720P/D1/HD1/CIF, support at maximum 4 Channels 1080P |
|
|
Recording Quality |
Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest. |
|
|
Video Rate |
PAL:100 fps,CCIR625line,50 scenes NTSC:120 fps,CCIR525line,60 scenes CIF:256Kbps – 1.5Mbps,8 grades image quality for optional HD1:600Kbps – 2.5Mbps,8 grades image quality for optional D1:800Kbps – 3Mbps,8 grades image quality for optional 720P:800Kbps – 4Mbps,8 grades image quality for optional 1080P：2Mbps – 6Mbps,8 grades image quality for optional |
|
|
Recording Mode |
Default automatic video recording, support ignition video recording, schedule video recording, alarm video recording, etc |
|
|
Audio |
Audio Input |
4CH Aviation connector inputs |
|
Audio Output |
1CH Aviation connector output, |
|
|
Compression format |
G.726, Speed for 8KB/s |
|
|
Alarm Input |
4CH level alarm inputs |
|
|
Alarm Output |
– |
|
|
Communication Interface |
– |
|
|
Wireless Transmission |
– |
|
|
Location /G-sensor |
– |
|
|
Video Storage |
Storage |
Support at maximum 1*256GB high capacity SD card |
|
Upgrade Method |
Support SD card local upgrade, remote upgrade automatically |
|
|
File Format |
H.264 general video format |
|
|
File System |
FAT32 exclusive file system |
|
|
Video Playback |
Video Search |
Search recorded video files by recording time and recording method |
|
Playback |
Support at max 4 channel synchronous playback, suspend, forward, backward |
|
|
Support 2/4/8/16 times speed forward or backward |
||
|
Security Management |
User Password or administrator password management, support screen locked |
|
|
Expansion functions |
TTS Voice broadcast |
– |
|
Series port expansion |
Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc |
|
|
Power and Consumption |
Power Management |
Self-adaptive wide voltage input, with protect functions for overload, undervoltage, short circuit, reversing connection, etc |
|
Power and Consumption |
Input Voltage |
DC:+8V – +36V |
|
Output Voltage |
+12V/1.5A,+5V/1.5A |
|
|
Power-off Protection |
– |
|
|
Consumption |
Normal working < 14W, standby < 0.5W |
|
|
Working environment |
Temperature |
-30℃ – +70℃ |
|
Humidity |
20% – 80% |
|
|
SD Card Type Series |
Dimension |
140*116*35MM |
|
Weight |
0.75KG |
|
