Description
This is an ideal package for any car audio enthusiast who wants to upgrade their sound system in their BMW to good quality music with clarity and good thumping bass.This package consist of replacing the Front Speakers with a set of Audison Prima Component Speaker kit (Consist of Midrange and Tweeters), replacing the rear speakers with a pair of Audison co-axial 2 way speakers and also upgrading the underseat subwoofers with a pair of 8″ Audison Prima bass speaker. This package also includes a 5 channel Hertz HCP5D amplifier which will power the whole sound system in the vehicle including the front component speakers, the underseat subwoofers and also the rear coaxial speakers. This will give you overall very good sound quality with more volume and clarity on the speakers with clear thumping bass.
- 1 x APB BMWK4 – Component Kit for Front Doors

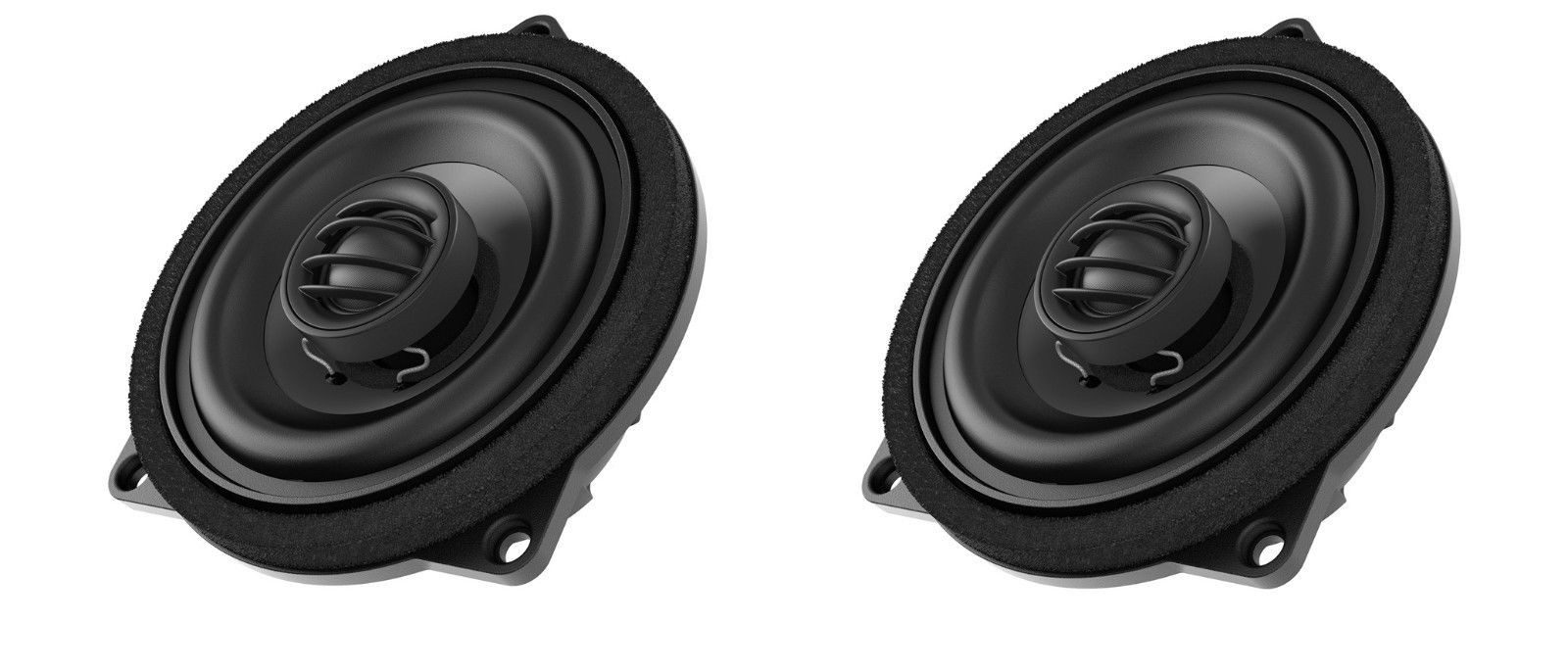

- 1 x APB BMW X4 – 2 way coaxial speaker for Rear Doors
- 2 x BMWS8 – underseat Subwoofer

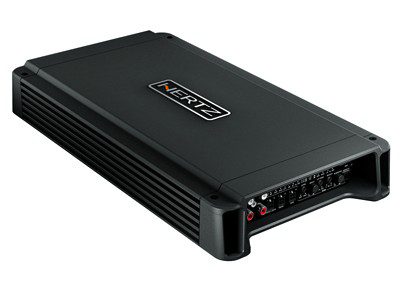

- 1 x HCP5D – 5 Channel Amplifier

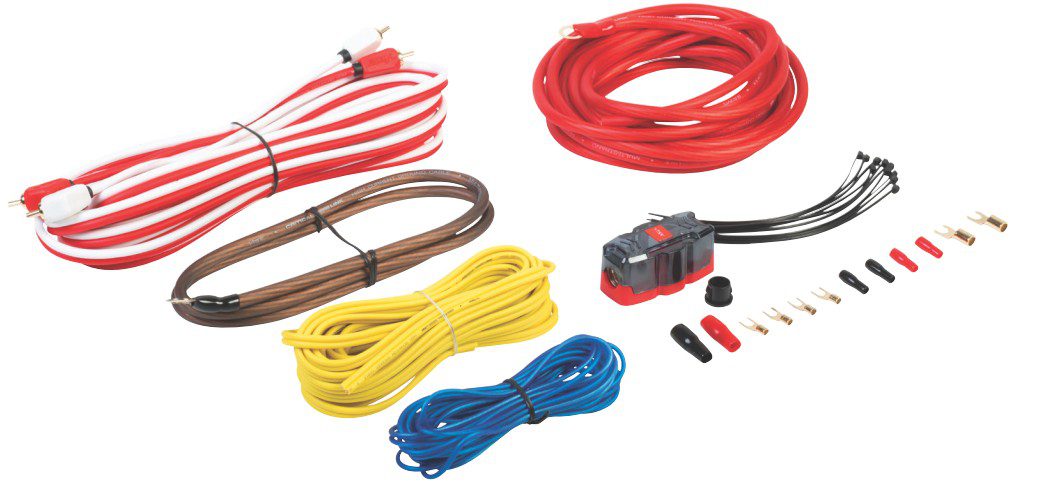

- 1 x 8 Gauge Wiring Kit

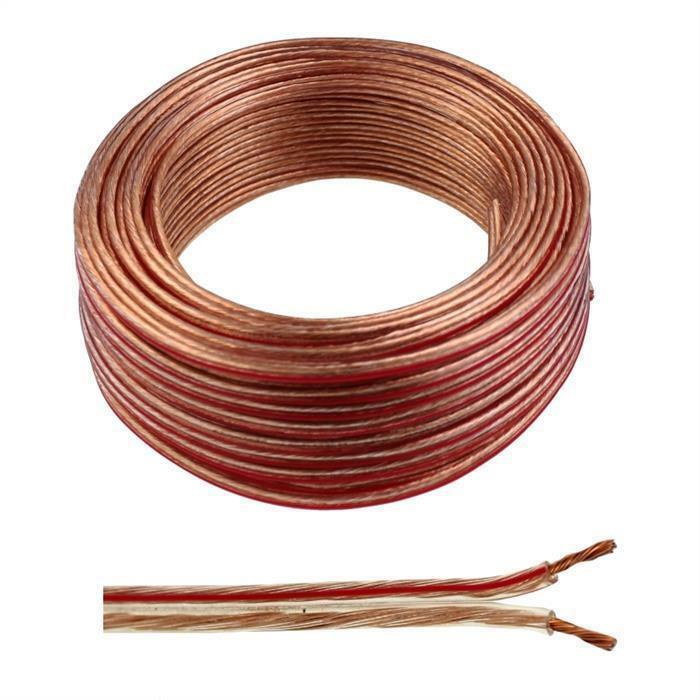

- 1 x 20m 0.75mm Speaker Cable
Suitable For The Following Vehicles:
- BMW 1 Series (E81/82/87/88)(F20/F21)
- BMW 3 Series (E90/91/92/93)(F30/F31/F34/F35/F80)
- BMW X1 (E84/F48)
- BMW 2 Series (F22/F23/F45/F46/F87)
- BMW 4 Series (F32/F33/F36/F82/F83)
- BMW 5 Series (E60/E61/F07/F10/F11)
- BMW 6 Series (E63/E64/F06/F12/F13)
- BMW 7 Series (E65/E66/F01/F02/F03/F04)
- BMW X3 (E83/F25)
- BMW X4 (F26)
- BMW X5 (E53/E70/F15/F85)
- BMW X6 (E71/F16/F86)
- May require some modifications to complete the installation
* AUDIO INPUT INTO THE AMPLIFIER IS DONE USING HIGH LEVEL SPEAKERS INPUT
Technical Specifications Of Hertz Amplifier (HCP5D)
-
Output Power (RMS) @ 14.4 VDC, THD 1%:
- 5 Ch: 55 W x 4 + 160 W x 1 (4 Ohms)
- 5 Ch: 90 W x 4 + 280 W x 1 (2 Ohms)
- 3 Ch: 180 W x 2 (4 Ohms) + 160 W x 1 (4 Ohms)
- 3 Ch: 180 W x 2 (4 Ohms) + 280 W x 1 (2 Ohms)
- Output Power (RMS) @ 14.4 VDC, THD 10%:
- 5 Ch: 65 W x 4 + 200 W x 1 (4 Ohms)
- 5 Ch: 105 W x 4 + 330 W x 1 (2 Ohms)
- 3 Ch: 210 W x 2 (4 Ohms) + 200 W x 1 (4 Ohms)
- 3 Ch: 210 W x 2 (4 Ohms) + 330 W x 1 (2 Ohms)
- Size mm (in.): 200 (8)
- Power Handling: 300 W peak, 150W continuous
- Frequency Response Hz: 40 – 500
- Magnet size D x d x h mm (in.):
- 48 (1.89) x 18 (0.71) x 7 (0.28)
- Weight of one speaker kg (lb.): 1.21 (2.67)
- Voice Coil Ø mm (in.): 50 (2)
- Coax Midrange
- Size mm (in.)100 (4)T
- Tweeter diaphragm mm (in.)24 (0.9)
- Power Handling Watts continuous 40 Peak 80
- Frequency Response Hz100 ÷ 22k
- Magnet size D x d x hmm(in.)50 (1.97) x 29 (1.14) x 3 (0.12)
- Weight of one speaker kg (lb.)0,5 (1.1)
- Woofer Voice Coil Ømm (in.)25 (1)
- Tweeter Voice Coil Ømm (in.)20 (0.8)
Technical Specification for Audison Prima 2 Way Component Speaker:
- Woofer Size mm (in.): 100 (4)
- Tweeter Size mm (in.): 29 (1.1)
- Power Handling: 100W peak, 50W continuous
- Frequency Response Hz: 90 – 23k
- Sensitivity dB: 89
- Crossover Type: Hi-Pass – 6 KHz @ 6dB/Oct.
- Component adjustment dB: -3, 0
- Woofer Magnet size D x d x h mm (in.): 50 x 29 x 3 (1.97 x 1.14 x 0.12)
- Tweeter Magnet size D x d x h mm (in.): 24.5 x 4 (0.96 x 0.16)
- Weight of one speaker Kg (lb): Woofer 0.426 (0.94)
- Tweeter 0.06 (0.13)
- Voice Coil : Woofer 25 (1) Tweeter 25 (1)
