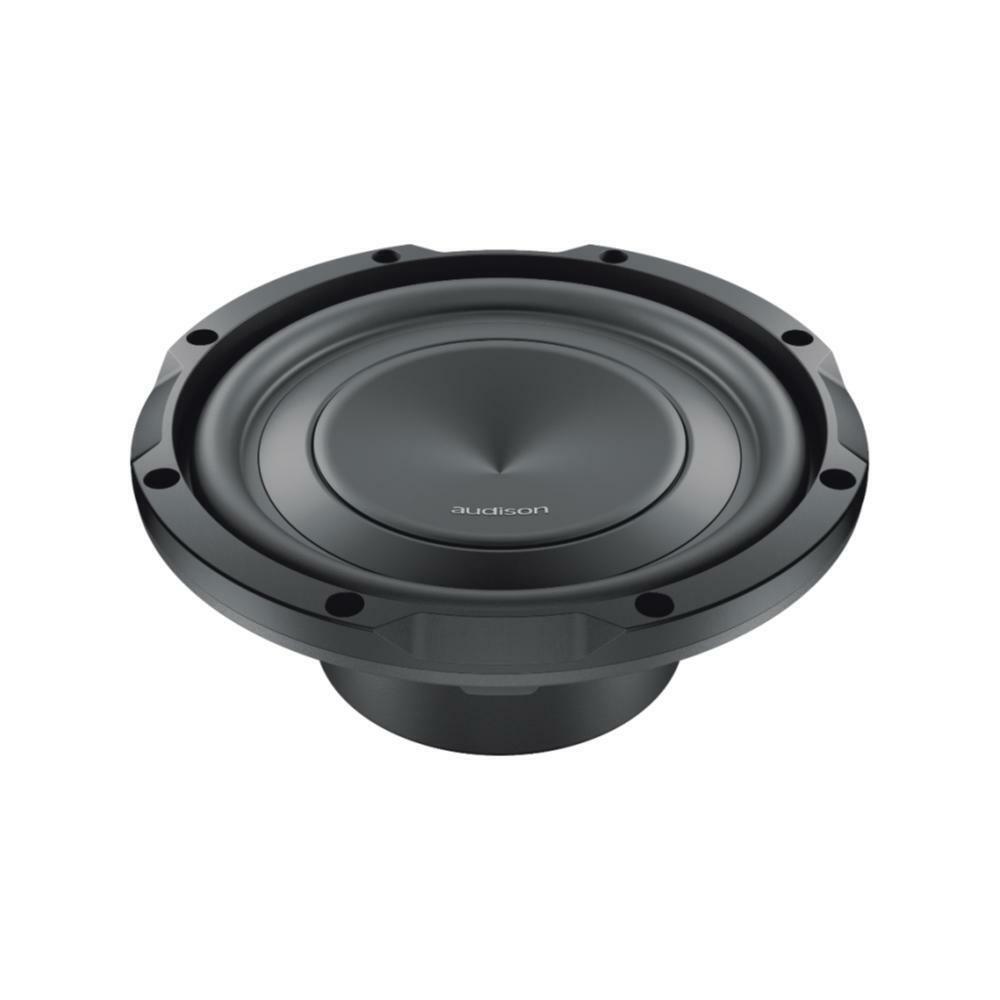

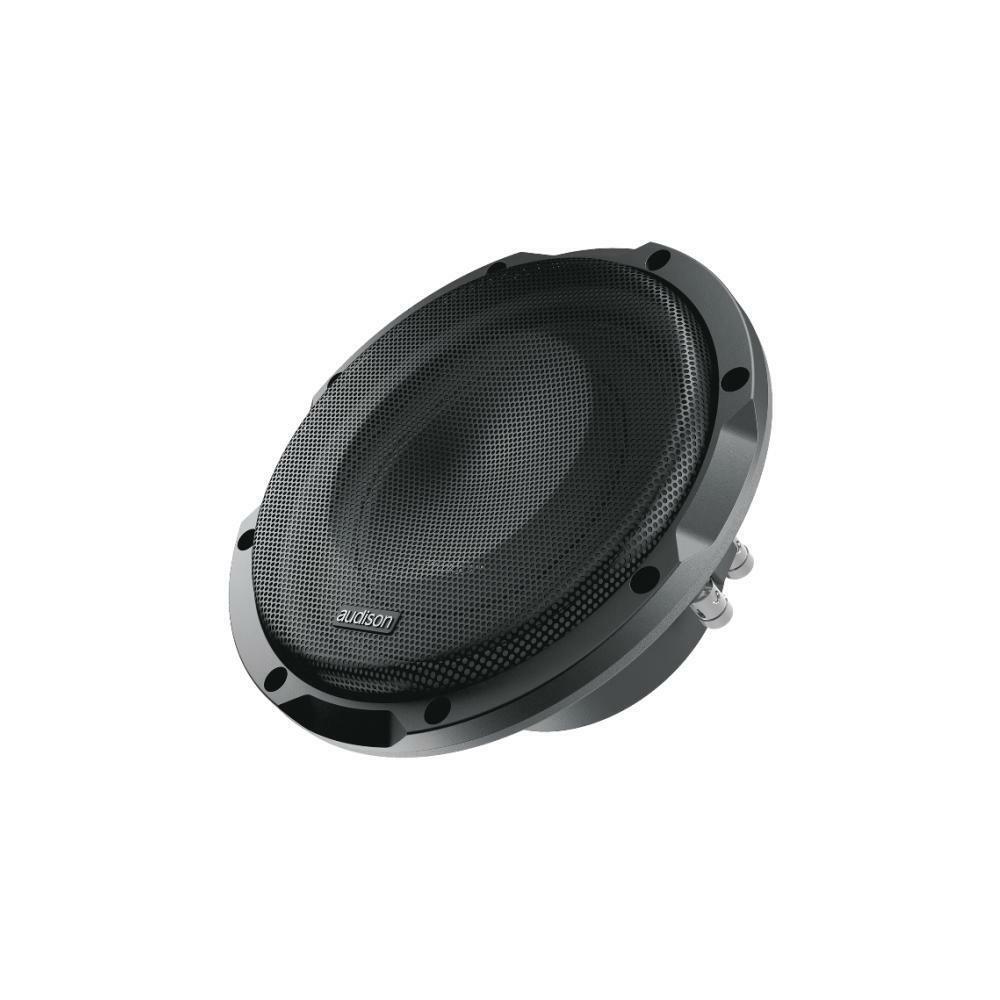

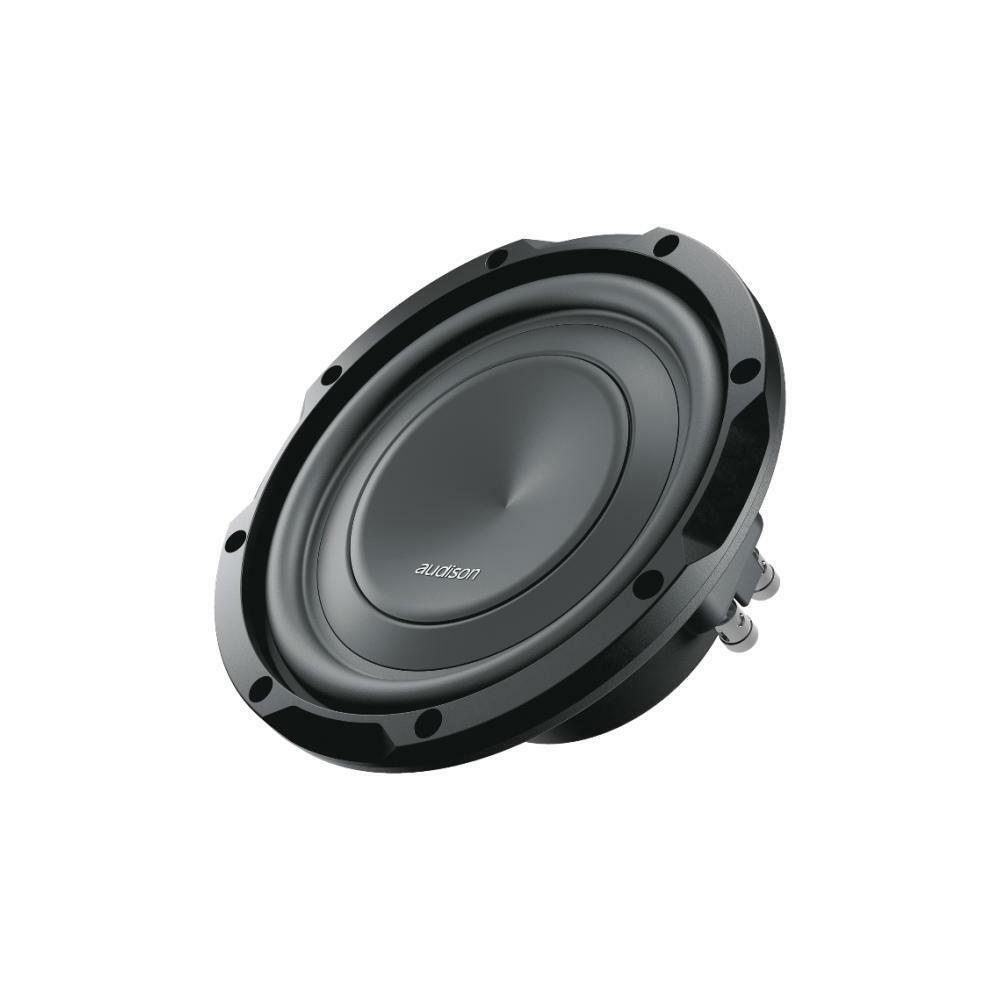

Audison Prima APS 8 R 8″ Car Subwoofer Single Voice Coil 4 ohm 250W RMS APS 8 R

Description

Audison Prima APS 8 R 8″ Car Subwoofer Single Voice Coil 4 ohm 250W RMS APS 8 R

With the aim of providing high acoustical output even when used with lower power, the APS 8 R was designed for use in an 8.5-litres reflex enclosure, with tuning between 30 and 40Hz. The APS 8 R has been specifically developed to be combined with either the AP8.9 bit or AP4.9 bit / AP4 D. Prima subwoofer components have been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However reduced mounting depth traditionally has meant low excursion. Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the “rocking-mode” phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom-plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.

Technical Specification

• Component: Single coil Subwoofer

• Size: 200 mm (8″)

• Power Handling: 250 W Continuous Power

• 500 W Peak Power

• Impedance (Ohms): 4

• Sensitivity: 84 dB/W/m

• Magnet: High density flux ferrite

• Cone: Cotton-Fibre pressed paper

• Xmech: 16.5 mm (0.65″)
