Audison Prima APS 8 D 8″ Car Subwoofer SUB DUAL 4 OHM 250W RMS

Description

Audison Prima APS 8 D 8″ Car Subwoofer SUB DUAL 4 OHM 250W RMS

The APS 8 D is designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes from 7.5 lt. to 8.5 lt. It features push connectors for ease of wiring and configurations and has been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However reduced mounting depth traditionally has meant low excursion. Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the “rocking-mode” phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom-plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.

Features

• Ultra-low profile (3.11 in. / 79 mm) for maximum installation flexibility.

• Designed to deliver maximum performance in a sealed enclosure starting from 7.5 litres.

• Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (almost 9 mm, one-way) while keeping the mounting depth to minimum.

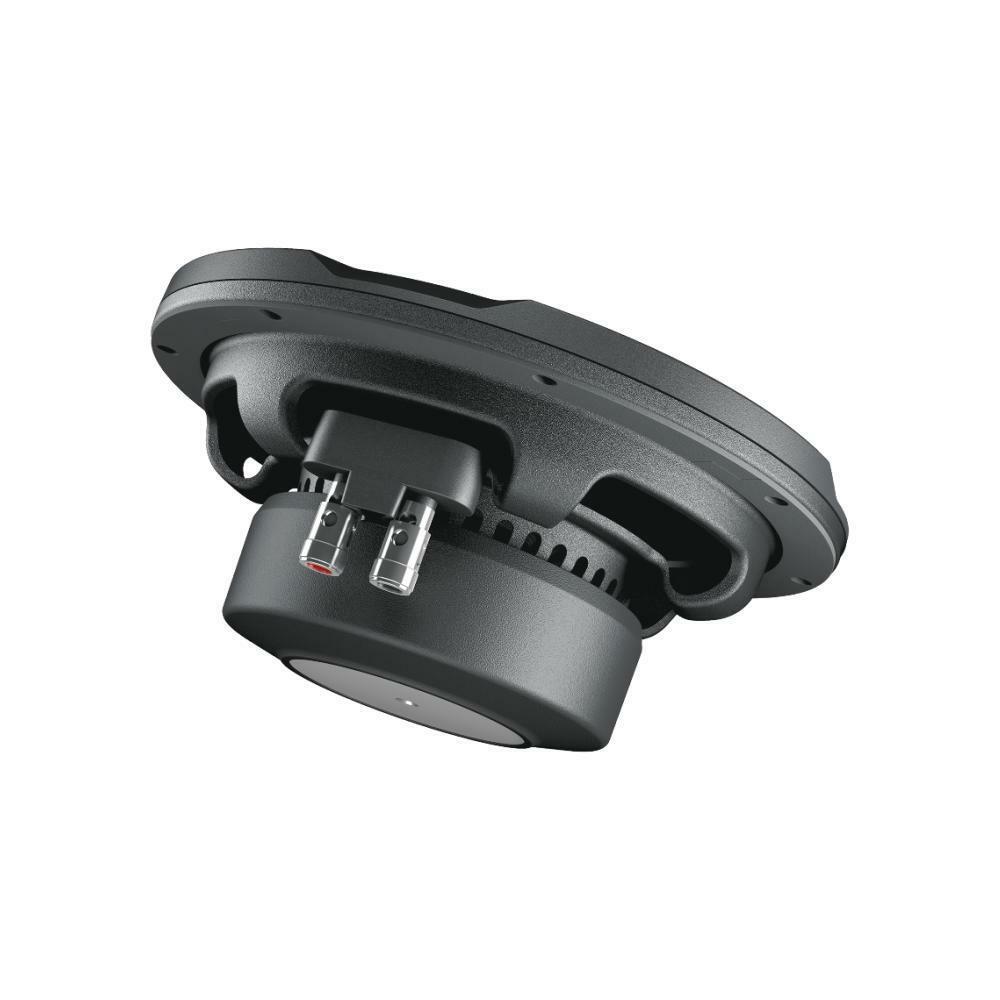

• Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to rear wall of enclosure.

• Massive motor assembly optimized with FEM (Finite Element Modeling) for perfect control under high power, high excursion conditions.

• Water-repellent treated paper 8 in. cone featuring a profile developed with simulation and optimized with the Klippel Scan Vibrometer.

• Dual voice coil design specifically developed to be combined with either AP8.9 bit (2 CH +
• 2 CH bridged), AP5.9 bit (Sub CH) or AP4.9 bit/AP4 D (2 CH bridged) amplifiers.

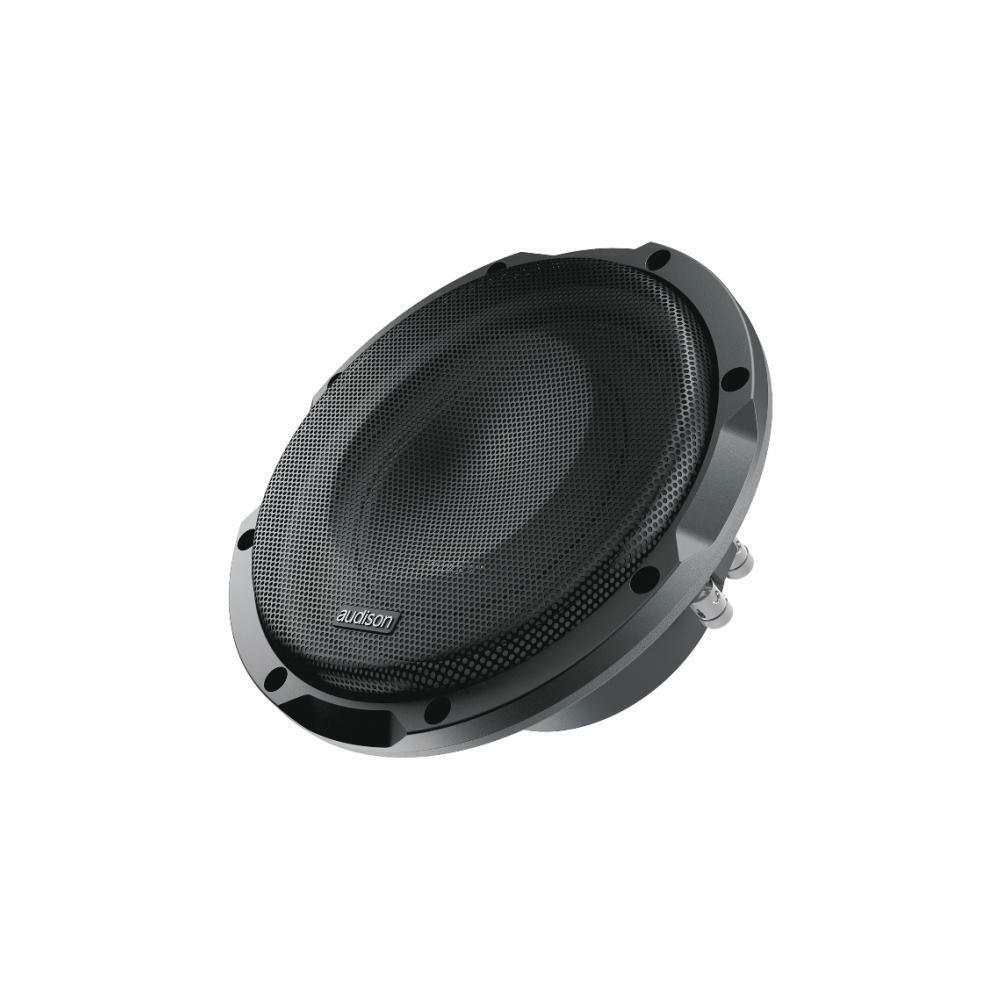

• Steel mesh grille and plastic gasket included.


Technical Specifications

• Component – SUBWOOFER

• Subwoofer size – 200mm (8″)

• Subwoofer Voice coil – 40mm (1.57″)

• Power handling – 500W peak, 250W continuous

• Impedance – 4+4Ω

• Centre to centre distance – 207mm (8.15″)

• Midrange magnet size D·d·h – 120mm (4.72″) x 50mm (1.97″) x 28mm (1.1″)

• Total driver displacement – 0.67 Litres (0.01 cu.inchs)

• Hole diameter – 5mm (0.2″)

• Weight of one speaker – 3.1Kg (6.83 lb)

• Magnet – High density flux ferrite

• Cone – Water-repellent treated paper
