Audison Prima APK 163 3 Way Component Car Speaker Kit – 375W Max

Description

Audison Prima APK 163 3 Way Component Car Speaker Kit

Audison Prima APK 163

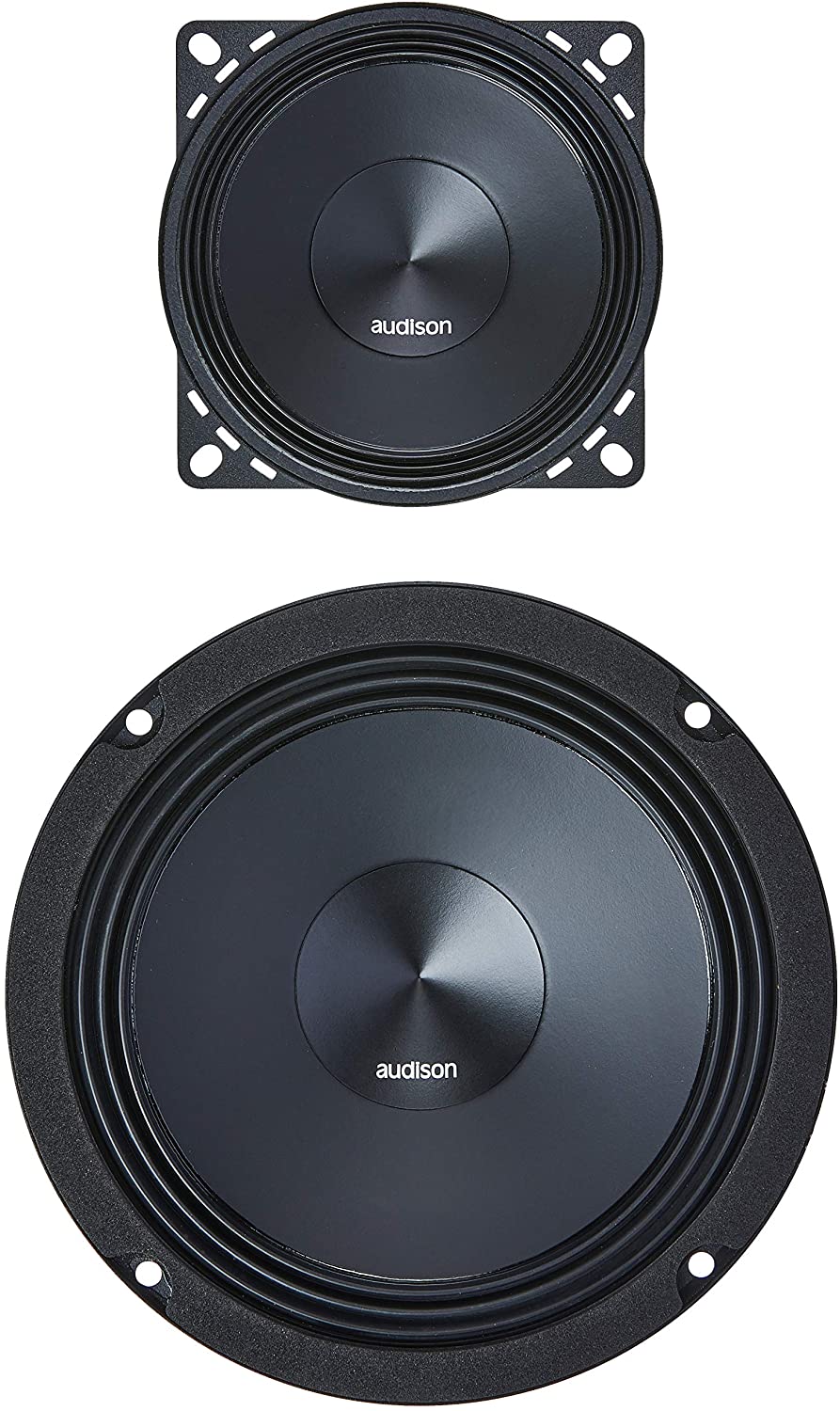

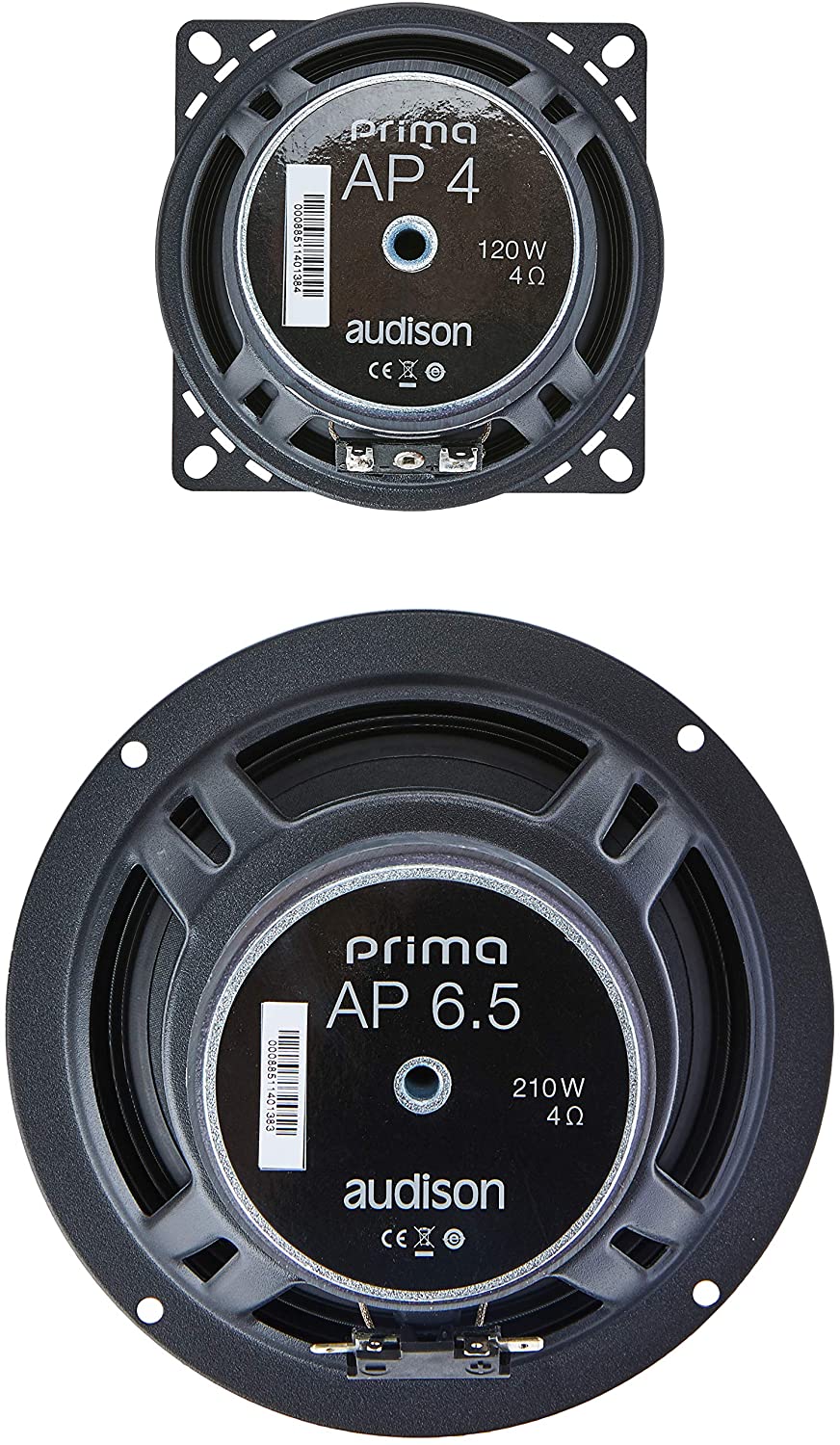

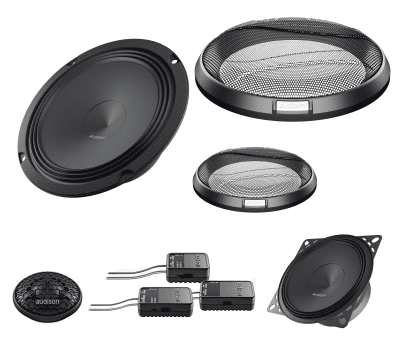

Audison Prima APK 163 is a stunning audio upgrade to your existing 3-way speaker system. Packed with sound enhancing technologies simply fitting these speakers alone will give you far more than a mere glimpse of what is possible in your car. Featuring a 6.5inch woofer, 4inch mid and 26mm tweeter with passive crossovers and grilles this 3-way system offers unrivalled versatility and unique performance thanks to a whole list of innovations such as the shallow triple wave cone surround used in the woofer for linear performance at maximum excursion, tweeter-mounted acoustic lens for improved high frequency response and dedicated passive crossovers with boost switch.

Technical Specification

• Size mm (in.) Woofer 165 (6.5)
• Mid bass 100 (4)
• Tweeter 26 (1)
• Power Handling 375Watts peak
• 125Watts continuous
• Impedance 4 Ohm
• Frequency Response 50 Hz – 20KHz
• Crossover type LP @ 600 Hz – 6 dB Oct
• HP @ 600/3.5 kHz – 6/6 dB Oct
• HP @ 3.5 kHz – 6 dB Oct
• Component adjustment 0 to +2dB
• Woofer Magnet size mm 85 x 40 x 15
• D x H (in.) (3.35 x 1.57 x 0.59)
• Midrange Magnet size mm 70 x 32 x 10
• D x H (in.) (2.75 x 1.26 x 0.39)
• Tweeter Magnet size mm 19 x 13
• D x H (in.) (0.75 x 0.12)
• Weight of one speaker kg (lb) Woofer 0.78 (1.72)
• Midbass 0.4 (0.88)
• Tweeter 0.04 (0.09)
• Voice Coil Ø mm (in.) Woofer 32 (1.26)
• Midbass 25 (1)
• Tweeter 20 (0.8)
