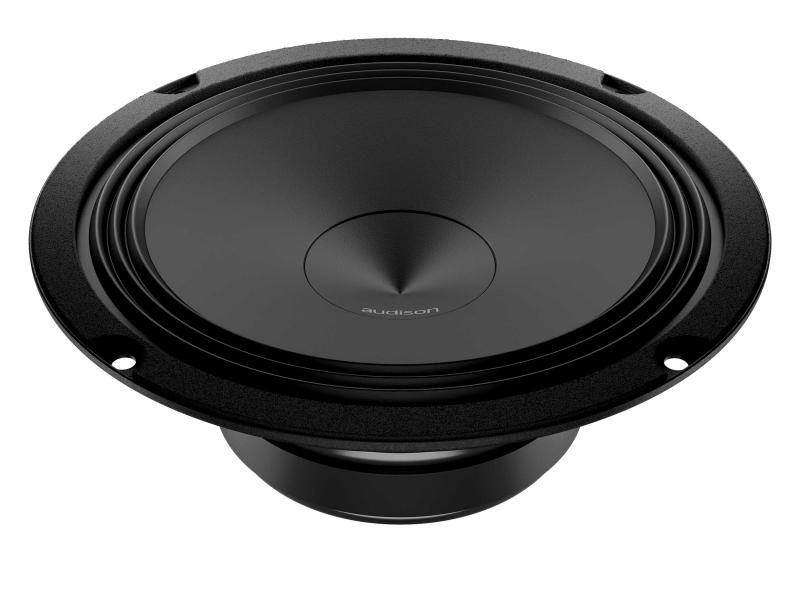

Audison Prima AP 6.5 2 OHM 6.5″ 17CM Car MidBass Door Speakers 70W RMS

Audison Prima AP 6.5/2BB 2 OHM 6.5″ 17CM Car MidBass Door Speakers 70W RMS

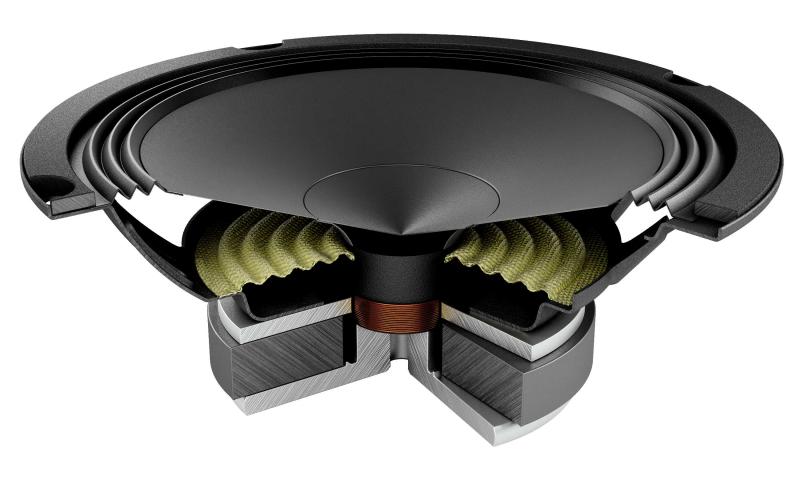

AP 6.5 feature a 32 mm pure copper voice coil, for high power handling and outstanding low frequency control. All the woofer don’t employ any filter, to maximize efficiency: the dome profile has been optimised with Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency. The surround features the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.

Features

• 25 mm mobile voice coil to maximize efficiency achieving 95 dB.
• 10 mm winding height mobile voice coil to increase maximum linear excursion up to 2,8 mm and minimize distortion, even at high listening levels.
• Water-repellent treated paper cone, featuring profile developed with FEM simulation technology and optimized with the Klippel Scan Vibrometer.
• Reduced mounting depth, providing ease of installation in OEM placements.
• TPU (Thermoplastic Polyurethane) surround, featuring the exclusive “Triple Wave” shallow profile, for maximum excursion linearity.
• Compact basket, protected by abrasion-resistant and scratch-proof coating. Damping epoxy glue provides perfect coupling with the motor system.
• High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
• Developed with the KLIPPEL suite


Technical Specifications

• Component – Woofer
• Size – 165mm (6.5in)
• Power Handling – Peak 210w, Continuous 70w
• Impedance – 2Ω
• Frequency Response – 60hz ÷ 5kHz
• Magnet size – 85mm x 32mm x 15mm
• Weight of one speaker – 0,78kg (1.72lb)
• Voice Coil Ø – 25mm (1in)

No retail packaging brown box only 2 Ohm version
