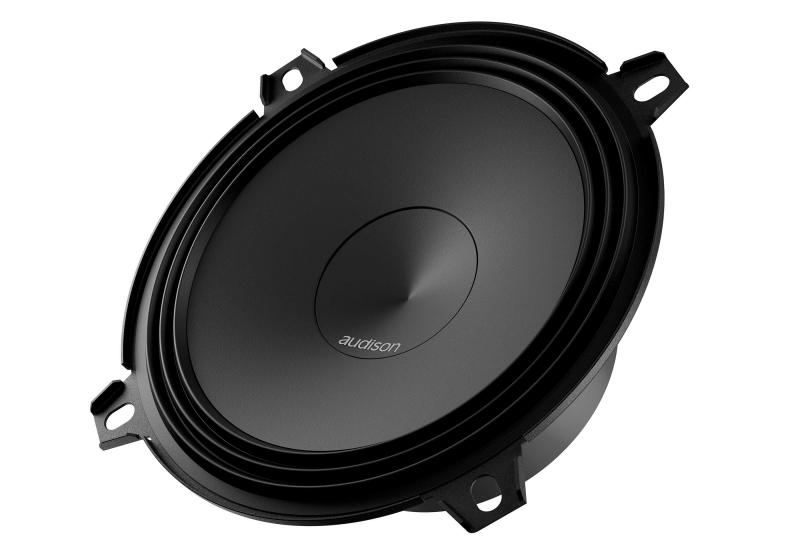

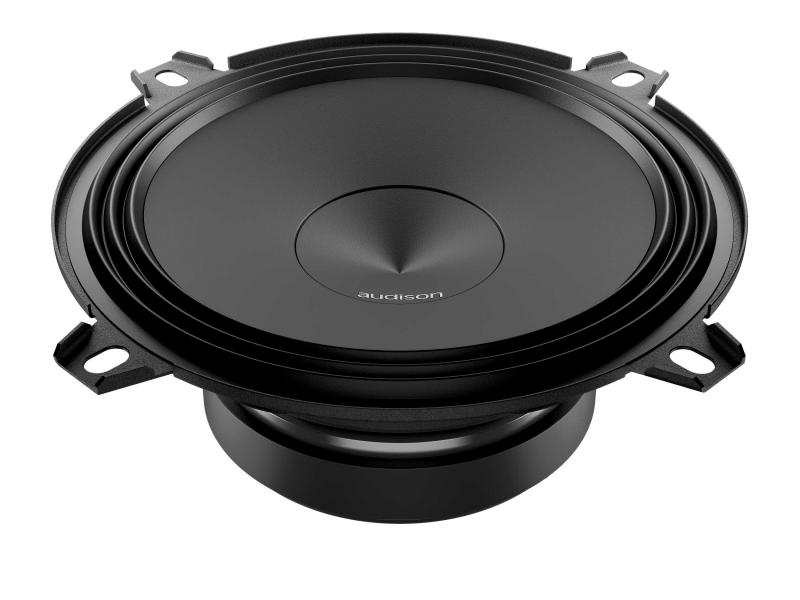

Audison Prima AP 5 Car Woofer 5″ 150 W max/50 W RMS

Description

Audison Prima AP 5 Car Woofer 5″ 150 W max/50 W RMS

Featuring a 32 mm pure copper mobile voice coil, for high power handling and outstanding low frequency control this Prima 5″ has a treated water-repellent paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimised using Klippel R&D Scan Vibrometer technology.

Description

• 32 mm pure copper mobile voice coil, for high power handling and outstanding low frequency control.
• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
• No passive crossover required to maximize efficiency: the cone is optimised with the Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
• Reduced mounting depth, providing ease of installation in OEM placements.
• TPU (Thermoplastic Polyurethane) surround, featuring the exclusiveshallow “Triple Wave” profile, for maximum excursion linearity.
• Compact basket, protected by abrasion-resistant and scratch-proofcoating, the motor affixed with damping epoxy adhesive.
• High current fast-on terminal with double contact on positive and negative poles for installation flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
• Developed with the KLIPPEL suite.


Technical Specification

• Size mm (in.) 130 (5)
• Peak Power Handling 150Watts
• Continuous 50Watts
• Impedance 4 ohm
• Frequency Response 70Hz – 5KHz
• Magnet size mm 85 x 40 x 13
• D x h (in.) (3.35 x 1.57 x 0.51)
• Weight of one speaker kg (lb) 0.65 (1.43)
• Voice Coil Ø mm (in.) 32 (1.26)
