Audison bit Nove – Digital Signal Processor OEM Interface

Description

Audison bit Nove – Digital Signal Processor OEM Interface

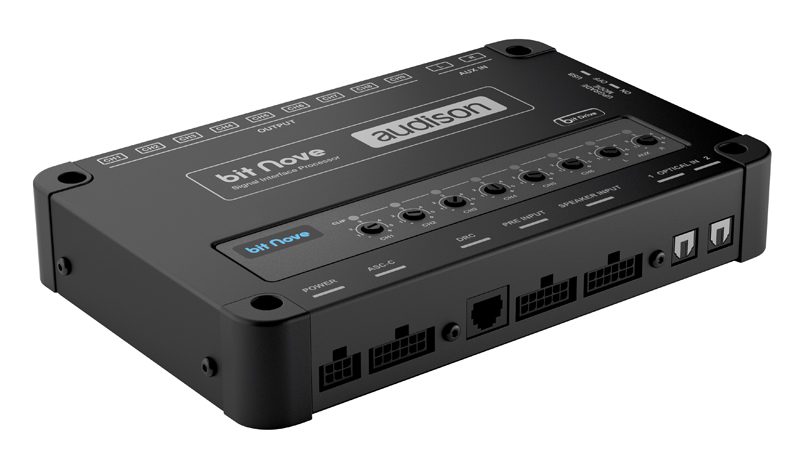

The Nove is a nine output signal processor offering a vast array of processing and sound shaping possibilities. From Linkwitz-Riley and Butterworth crossovers with variable slopes (6-24dB/Oct). 10-band parametric equalisation on each channel with +/- 12dB of gain and variable Q. Dedicated bass and subwoofer equalisation is provided with automatic soft clipping to reduce the danger from destructive distortion. The unit feature two optical inputs and 24-bit D/A/ and A/D convertors. The processor will accept 24-bit word length digital audio signals with sampling frequencies up to 196kHz.
Provided with a full suite of software for fine control of all parameters.

Technical Specification

• Voltage: 10.8 – 15 VDC
• Operating power supply voltage: 7.5 – 14.4 VDC
• Idling current: 0.53 A
• Switched off without DRC: 1 mA
• Switched off with DRC: 4.5 mA
• Remote IN voltage: 4 – 15 VDC (1mA)
• Remote OUT voltage: 10 – 15 VDC (130 mA)
• ART (Automatic Remote Turn ON): 2 – 7 VDC
• Distortion – THD @ 1 kHz, 1 VRMS Output: 0.005%
• Bandwidth @ -3 dB: 10 Hz – 22 kHz
• S/N ratio @ A weighted:
• Master Input 102 dBA,
• AUX Input 101.5 dBA
• OPTICAL IN1 / IN2 Inputs 110 dBA
• Channel Separation @ 1 kHz: 85 dBA
• Input sensitivity Pre Master: 1.2 – 8 VRMS
• Input sensitivity Speaker Master: 3 – 20 VRMS
• Input sensitivity AUX Master: 0.3 – 5 VRMS
• Max Output Level (RMS) @ 0.1% THD: 4 V

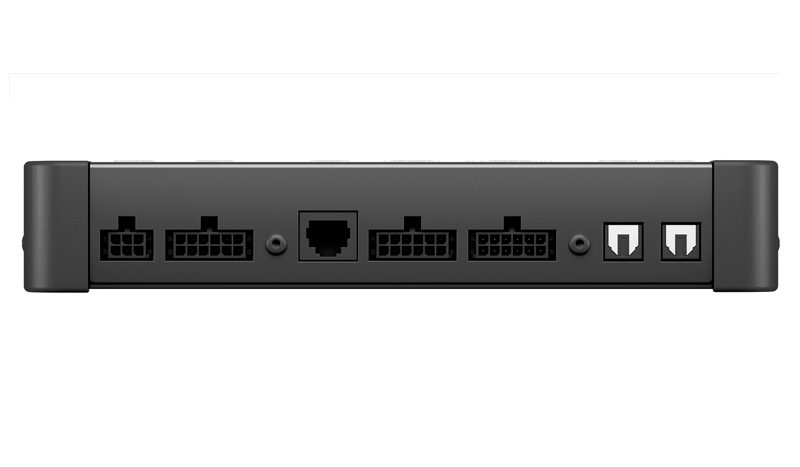

• Low level input (Pre): Ch1 – Ch6; AUX L/R
• High Level (Speaker In): Ch1 – Ch6
• Digital 2 x Optical S/PDIF: Max 192 kHz / 24 bit

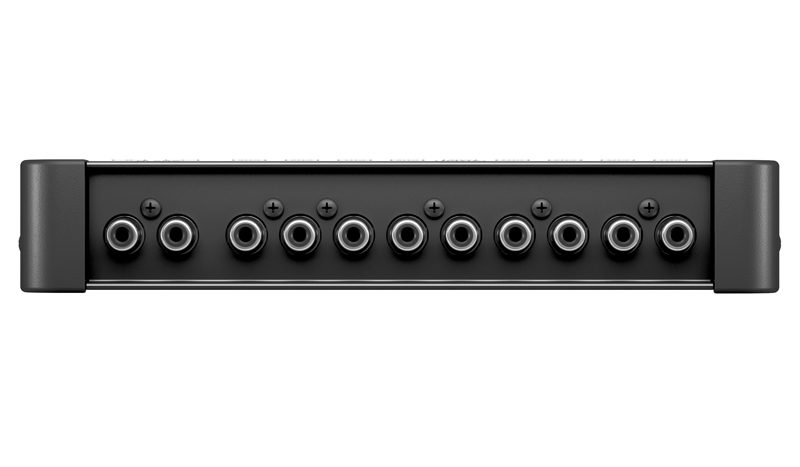

• Low level (Pre): Ch1 – Ch9
• Filter type Full / Hi pass / Low Pass / Band Pass
• Filter mode and slope
• Linkwitz @ 12/24 dB – Butterworth @
• 6/12/18/24 dB
• Crossover Frequency 68 steps @ 20 – 20k Hz
• Phase control 0° / 180°
• EQUALIZER (20 – 20K Hz)
• Analog Input Equalizer Automatic De-Equalization
• Output Equalizer
• N.9 Parametric Equalizers: ±12 dB;10 pole;
• 20 – 20k Hz
• TIME ALIGNMENT
• Distance: 0 – 510 cm / 0 – 200.8 inches
• Delay 0 – 15 ms
• Step 0.08 ms; 2.8 cm / 1.1 inch
• Fine SET 0.02 ms; 0.7 cm / 0.27 inch
• PC connections USB 1.1 / 2.0 / 3.0 Compatible
• Software/PC requirements
• Microsoft Windows (32/64 bit): Vista,
• Windows 7, Windows 8, Windows 10
• Video Resolution with screen resize min. 1024 x 600
• W (Width) x H (Height) x D (Depth)
• mm/inch
• 130 x 34.5 x 199 / 5.11″ x 1.35″ x 7.83″
• Weight kg/lb 0.7 / 1.5
