Description
This Kit Consists Of:
- Brake Light Parking Camera Kit
- 7″ LCD Mirror Monitor Screen
Compatible With The Following Vans (With the factory fitted rear roof brake light):
- Ford Transit (2014 Onwards)

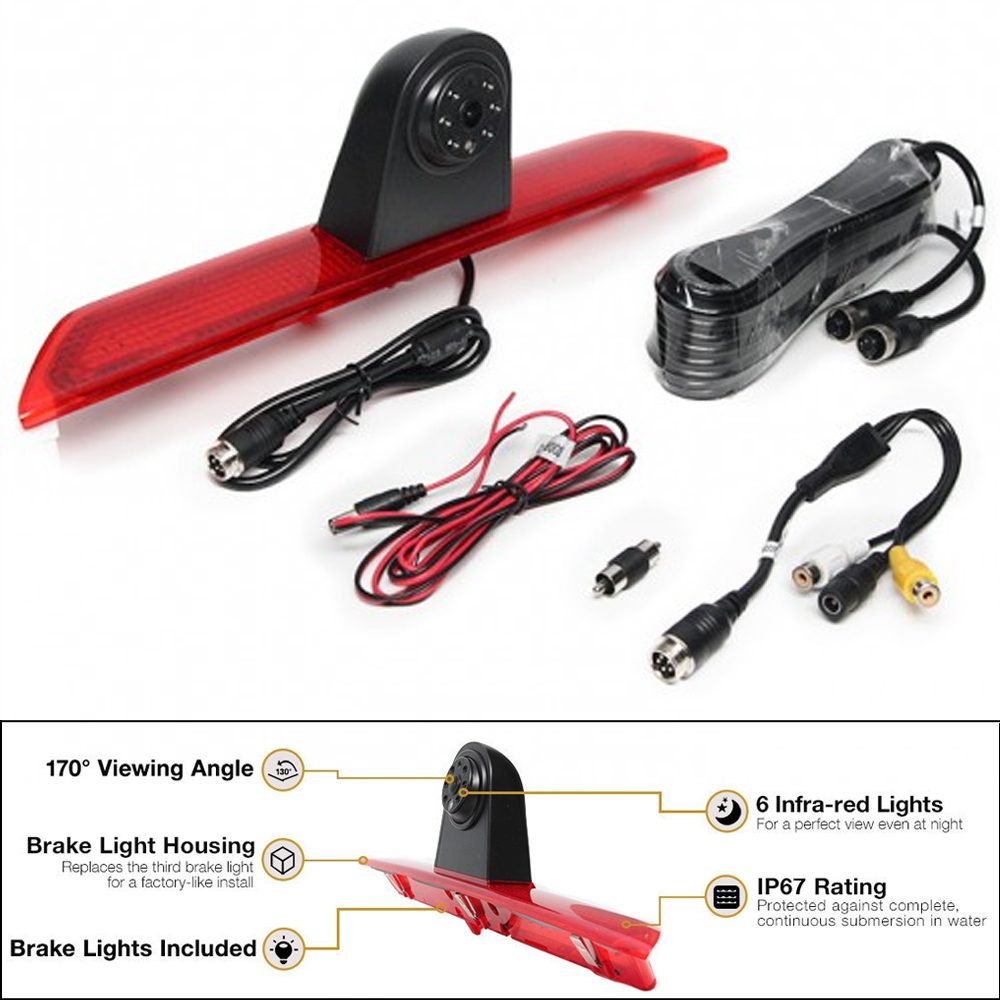

Brake Light Camera Features:
All new design OE fit replacement brake light Rear view camera.
Designed to fit Ford Transit Vans 2014 onwards that have the factory fitted rear roof brake light

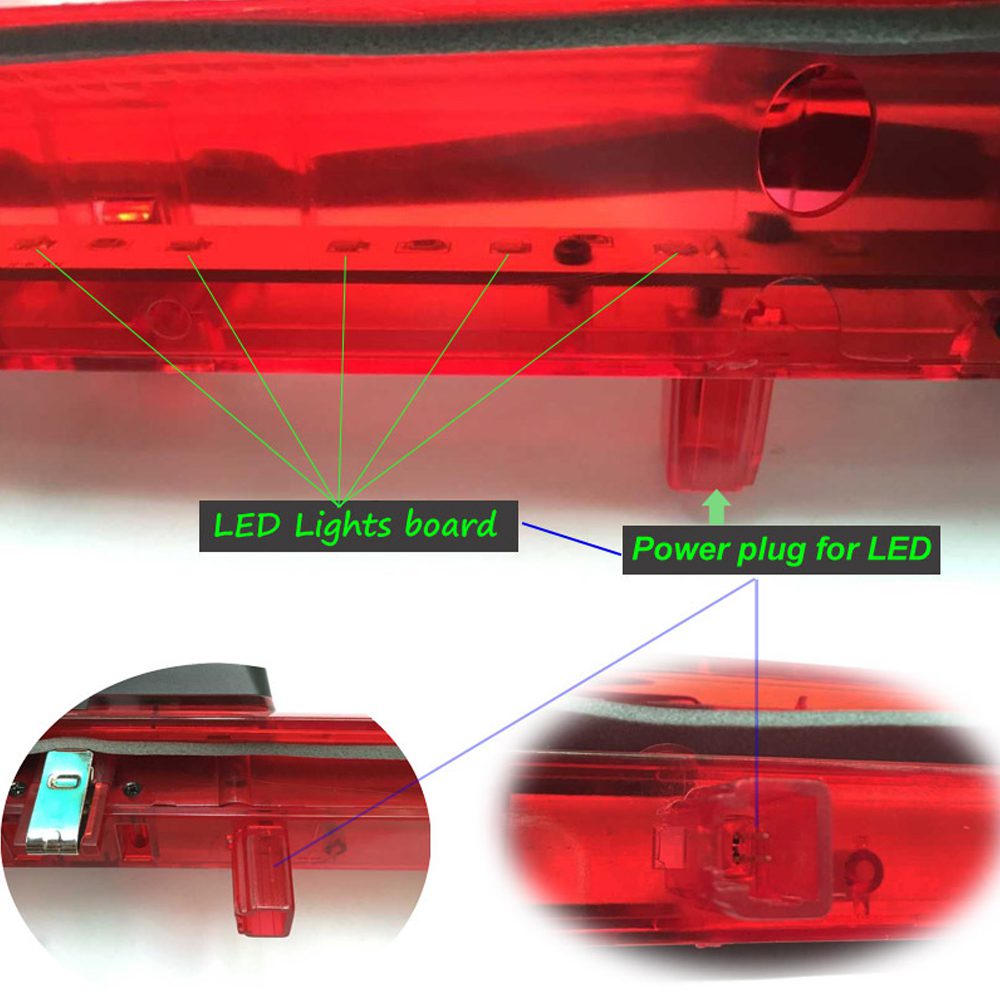

Complete outer lens brake light with integrated reverse camera. Simply unscrew original outer brake light housing and replace with this combined unit
Key Features:
- OE fitting – Ford Transit
- Sensor: 1/4 Sharp CCD
- Night Vision Distance: 45 feet
- NTSC
- Waterproof – IP67
Technical Specifications:
- Resolution: PI68
- Lens Angle: 140 Degrees
- Vertical Angle: 170
- Resolution: 420 TV Lines
- Operation Temp: -20 degrees- +70
- Storage Temp: -40 degrees- +90
- Infrared LED lights: 6PSC
- IR Distance: 9 Metres
- DC: 12 Volt with built in LED
- 4 Pin Connecter

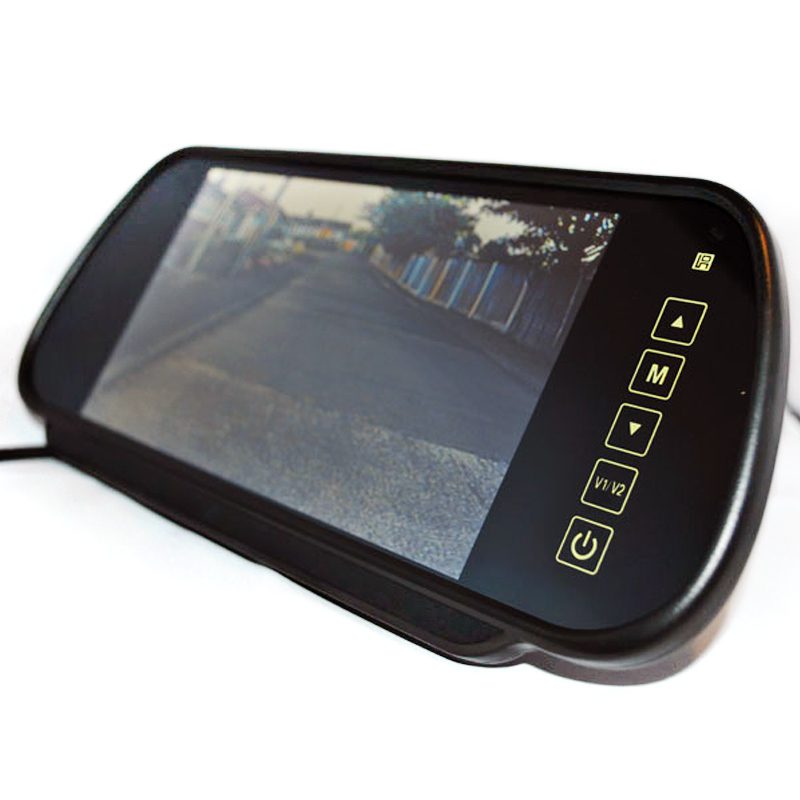

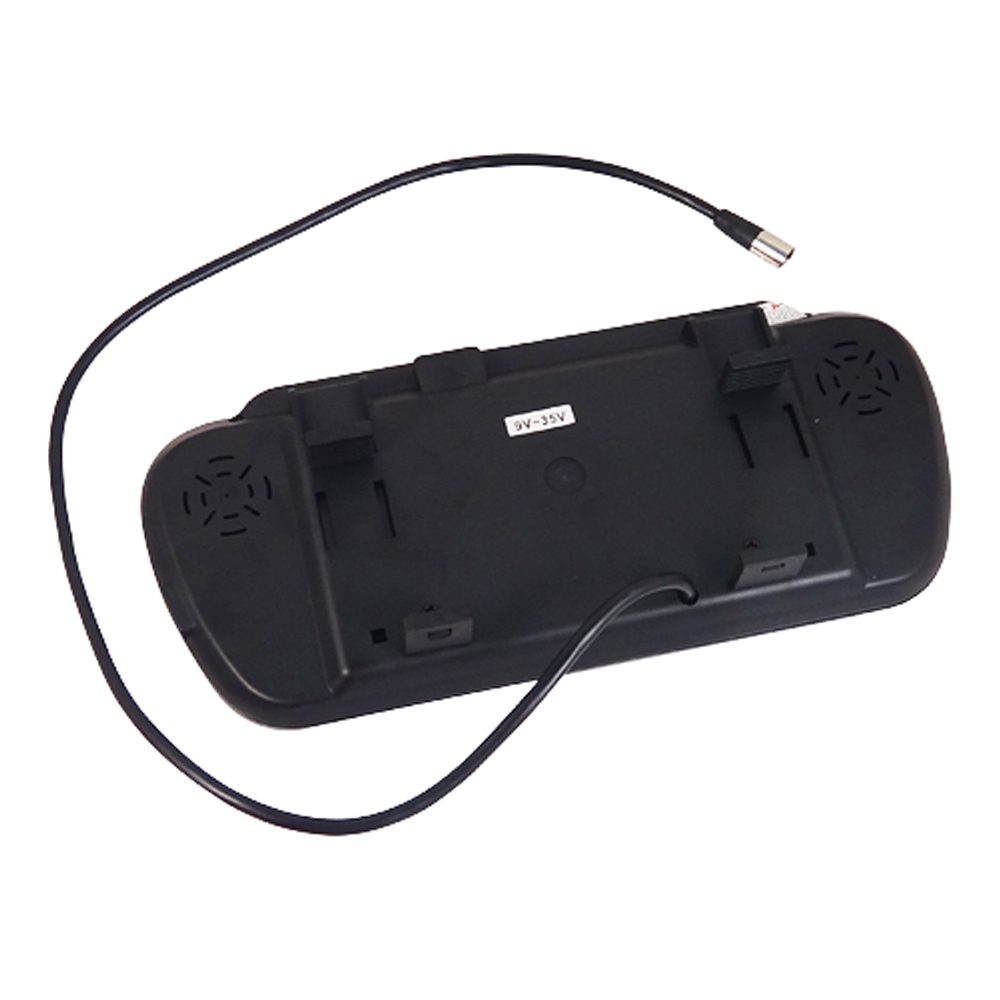

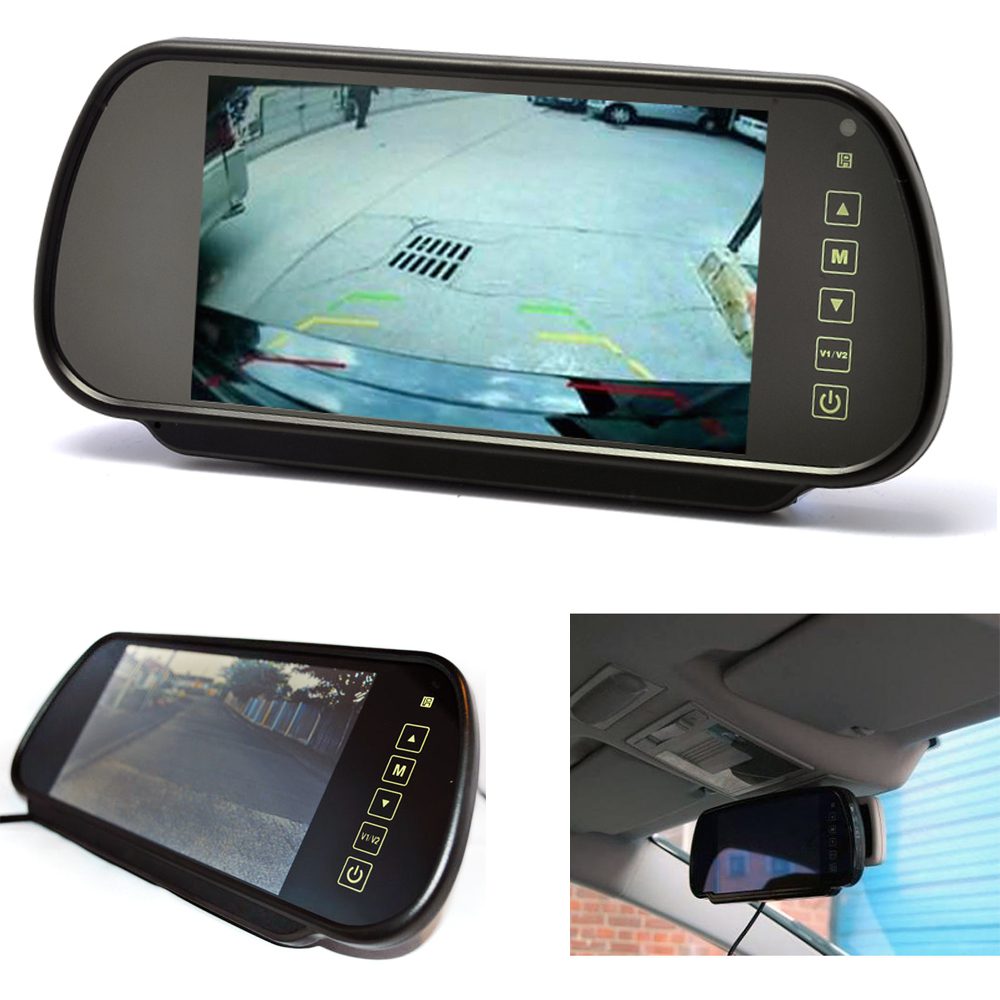

7″ Mirror Monitor Screen
The monitor supports dual video input (i.e. V1 and V2), with V1 as the default channel, V2 activates with a 12v signal i.e. from reverse lights, this allows the devise to automatically switch to V2 which can be wired to a reversing camera.
You can cycle through V1 and V2 video inputs manually when the reverse gear is not engaged by pressing the V1/V2 buttons on the right side of the monitor or using the remote control key: Video select.
The monitor is automatically powered on when reversing gear is engaged, and if there is no video signal, you can turn off the monitor by pressing the power button.
Features:
- Universal color monitor on dashboard ( PAL /N )
- Function to display rear view image or video programs from DVD/VCD players.
- High resolution and exquisite frame design.
Specifications:
- Screen type: TFT LCD
- Screen size: 7 inch colour mirror monitor
- Resolution: 880 (H) x RGB x 480(V)
- Aspect Ratio: 16: 9
- Compution: =/< 5W
- Purpose: Car DVD monitor and car reversing
- Power consumption: 3W max.
- Brightness: 300
- Power input: DC12V
- Contrast: 350
- Video input: 2 channel (V1, V2)
- Control Method: Touch Button / Remote

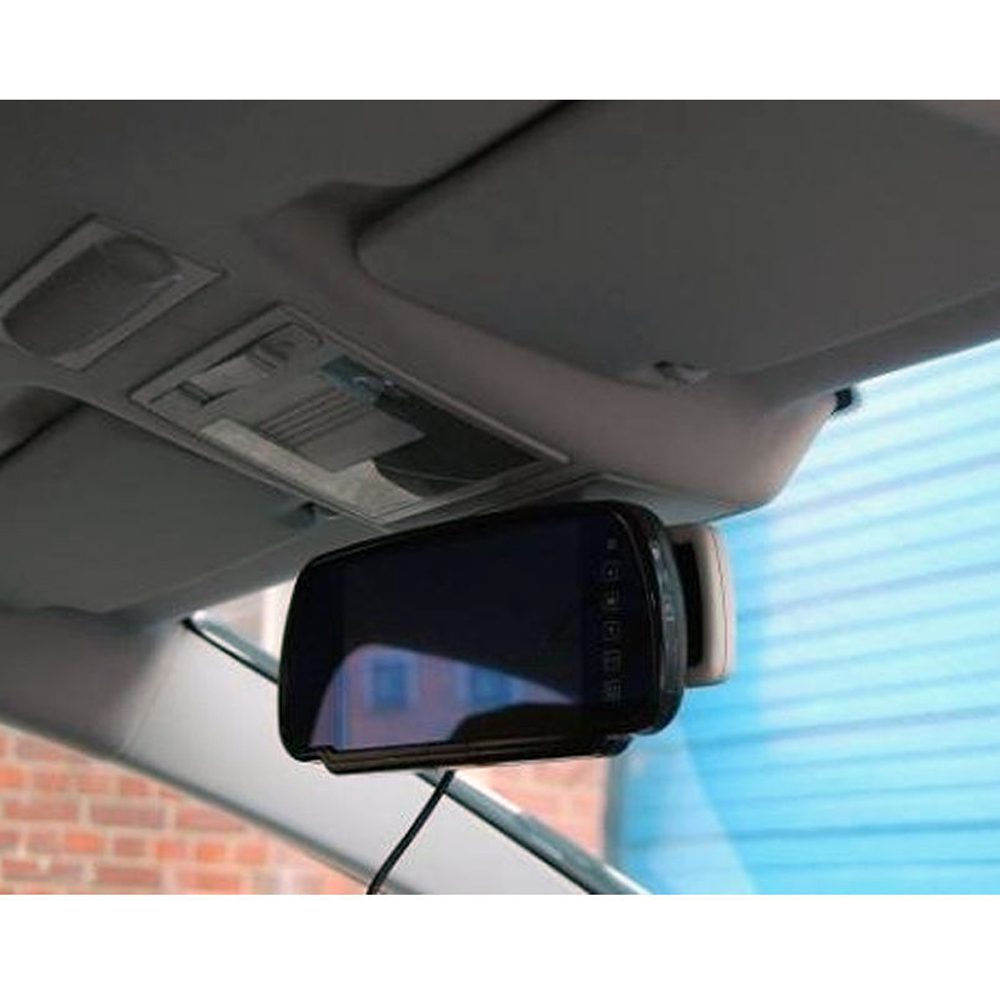

- Mounting Method: Clip-on.
