Description
This Kit Consists Of:
- Brake Light Parking Camera Kit
- 4.3″ Dash Mount LCD Monitor Screen
Compatible With The Following Vans (With the factory fitted rear roof brake light):
- Ford Transit (2014 Onwards)

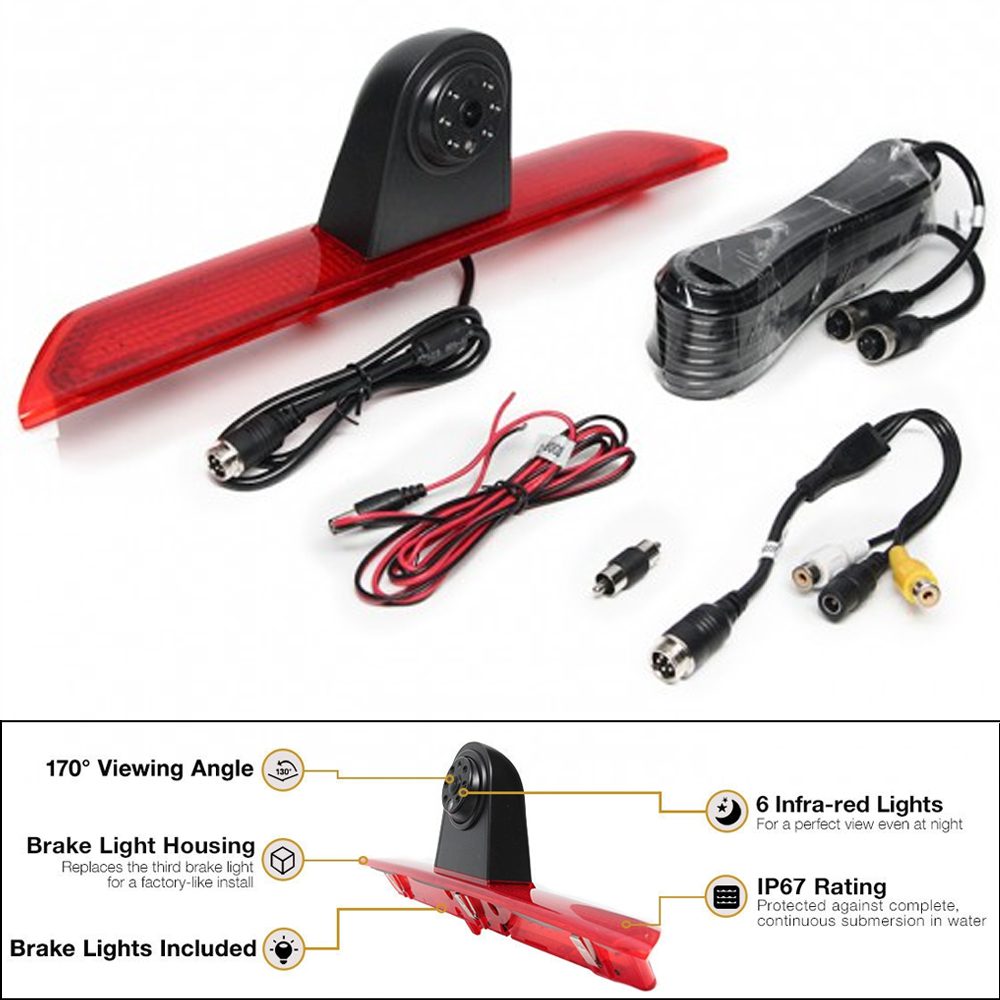

Brake Light Camera Features:
All new design OE fit replacement brake light Rear view camera.
Designed to fit Ford Transit Vans 2014 onwards that have the factory fitted rear roof brake light

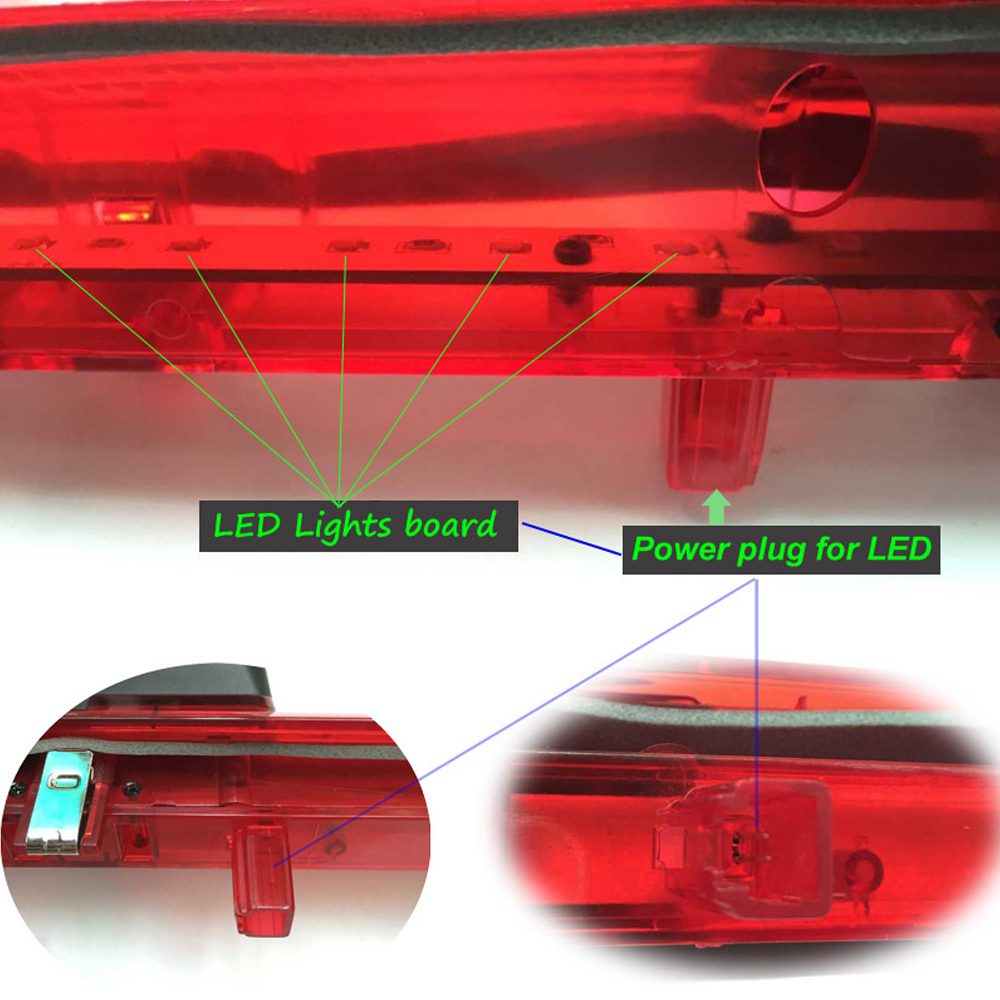

Complete outer lens brake light with integrated reverse camera. Simply unscrew original outer brake light housing and replace with this combined unit
Key Features:
- OE fitting – Ford Transit
- Sensor: 1/4 Sharp CCD
- Night Vision Distance: 45 feet
- NTSC
- Waterproof – IP67
Technical Specifications:
- Resolution: PI68
- Lens Angle: 140 Degrees
- Vertical Angle: 170
- Resolution: 420 TV Lines
- Operation Temp: -20 degrees- +70
- Storage Temp: -40 degrees- +90
- Infrared LED lights: 6PSC
- IR Distance: 9 Metres
- DC: 12 Volt with built in LED
- 4 Pin Connecter

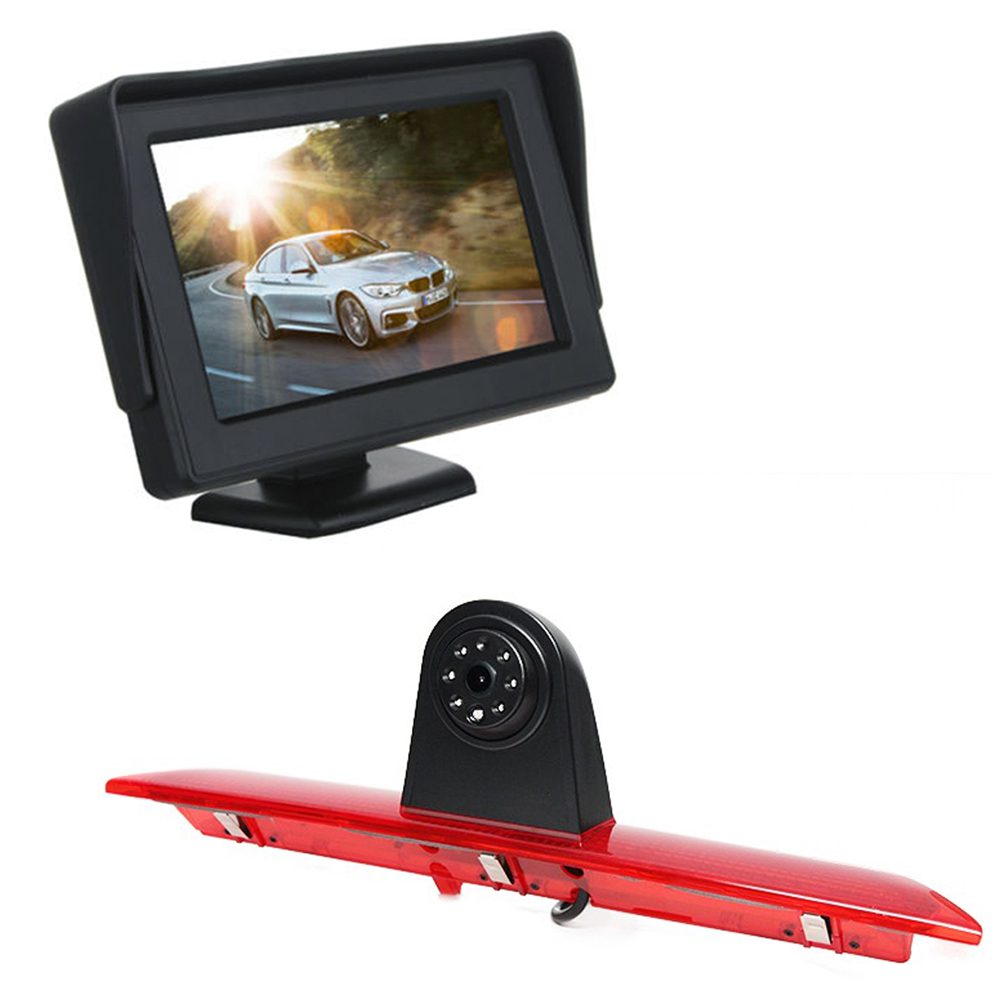

4.3″ Monitor Features
- 4.3″ Digital TFT LCD monitor
- Resolution: 480×272
- Dimensions: 12.5cm (length) x 7.7cm (height) x 1.5cm (width)
- Power supply: DC 12V
- Display mode: 16:9
- 2 video input
- Working temperature: -20 ~+70 degrees
- Import signal CVBS 1V Vpp
- Displays the optical image from the rear view camera
- Monitor settings: brightness, contrast, saturation, tine, screen mode, 7 languages
What’s included?
- 1 x 4.3inch Monitor
- 1 x 2-video input cable
- 1 x power cable
